PASSIONHOSE | factory Direct ac charging hose factory

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. ac charging hose We promise that we provide every customer with high-quality products including ac charging hose and comprehensive services. If you want to know more details, we are glad to tell you.ac charging hose Selected high-quality rubber materials, manufactured with exquisite production and processing technology, fine workmanship, high quality, soft, thick and elastic texture, beautiful shape.



Product Features



 Features

• ◪ Flexibility

• ◪ High elasticity

• ◪ Excellent adhesion

• ◪ Red, Blue, and Yellow Colors

• ◪ 800psi working pressure

• ◪ Resistant to Aging and Abrasion

• ◪ Against hardening and embrittlement

•


•






Product Description

---struction and specification---

Description

• Structure:

• Inner tube: High nitrile-butadience rubber (NBR)

• Outer tube: Smooth, NBR&PVC blends.

• Reinforcement: Polyester fiber spiral line.

• Operating temperature range: -30℃ to +100℃

• Color: Red & Blue & Yellow

• Standard length: 100M

• Connector: 1/4" SAE



Specification

Part Number	I.D.(mm)	I.D.(inch)	Thickness (mm)	O.D.(mm)	W.P.(psi)	B.P.(bar/psi)	Lengths (m)
PRC-1	5	3/16"	3	11	500	2500	100
PRC-2	5	3/16"	3	11	600	3000	100
PRC-3	5	3/16"	3	11	800	4000	100



Product Details

---various refrigerant charging hose---

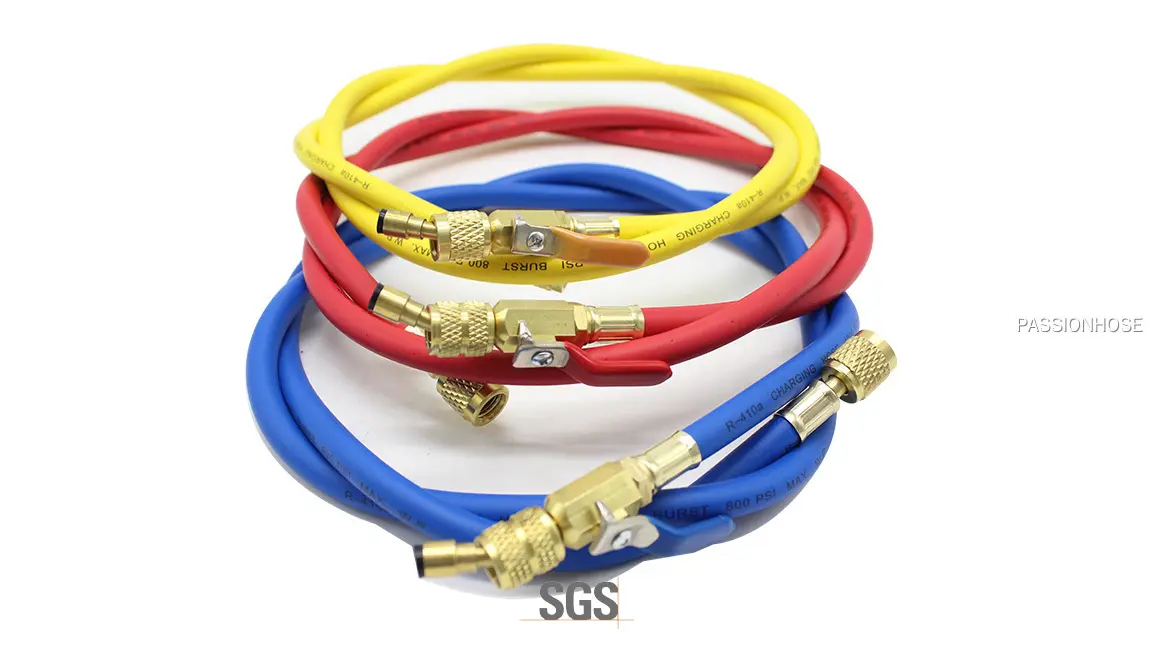

Refrigerant Charging Hose

5mm Red, Blue, Yellow

     Refrigerant Charging Hose

Working Pressure 500, 600, 800psi

Refrigerant Charging Hose Assembly

Refrigerant Charging Hose with 1/4"SAE connector







Refrigerant Charging Hose Assembly

R1234yf quick coupler



Refrigerant Charging Hose Assembly

1/4"SAE bend 45° connector



Refrigerant Charging Hose Assembly

Connector and Ball valve





Application

---high pressure and flexible---


About our product

A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.





For Air Conditioning System

For conveying R12，R22，R134a etc

For Automotive Refrigerant

      Applied widely to auto refrigerant
