Guided by scientific and technological innovation, PASSIONHOSE always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. stainless steel hydraulic fittings If you are interested in our new product stainless steel hydraulic fittings and others, welcome you to contact us.stainless steel hydraulic fittings Selected high-quality PVC material, manufactured by advanced technology and process, has good anti-corrosion and aging resistance, good water-stop performance, and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities, etc. .
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |
| Part Number | 1JO |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |
| Part No. | 螺纹 THREAD E | 螺纹 THREAD F | O形圈O-RING F端 | DIMENSION A | DIMENSION B | DIMENSION L | DIMENSION S1 |
|---|---|---|---|---|---|---|---|
| 1JO-04-02 | 7/16"x20 | 5/16"x24 | O902 | 14 | 7.54 | 27.5 | 14 |
| 1JO-04-03 | 7/16"x20 | 3/8"x24 | O903 | 14 | 7.54 | 27.5 | 14 |
| 1JO-04 | 7/16"x20 | 7/16"x20 | O904 | 14 | 9.14 | 29 | 14 |
| 1JO-04-05 | 7/16"x20 | 1/2"x20 | O905 | 14 | 9.14 | 29 | 17 |
| 1JO-04-06 | 7/16"x20 | 9/16"x18 | O906 | 14 | 9.93 | 30 | 17 |
| 1JO-05-04 | 1/2"x20 | 7/16"x20 | O904 | 14 | 9.14 | 29 | 14 |
| 1JO-05-06 | 1/2"x20 | 9/16"x18 | O906 | 14 | 9.93 | 30 | 17 |
| 1JO-06 | 9/16"x18 | 9/16"x18 | O906 | 14.1 | 9.93 | 30 | 17 |
| 1JO-06-04 | 9/16"x18 | 7/16"x20 | O904 | 14.1 | 9.14 | 29 | 17 |
| 1JO-06-05 | 9/16"x18 | 1/2"x20 | O905 | 14.1 | 9.14 | 29.5 | 17 |
| 1JO-06-08 | 9/16"x18 | 3/4"x16 | O908 | 14.1 | 11.13 | 33 | 22 |
| 1JO-08 | 3/4"x16 | 3/4"x16 | O908 | 16.7 | 11.13 | 36 | 22 |
| 1JO-08-06 | 3/4"x16 | 9/16"x18 | O906 | 16.7 | 9.93 | 35 | 22 |
| 1JO-08-10 | 3/4"x16 | 7/8"x14 | O910 | 16.7 | 12.7 | 40 | 27 |
| 1JO-08-12 | 3/4"x16 | 1.1/16"x12 | O912 | 16.7 | 15.09 | 43 | 32 |
| 1JO-10 | 7/8"x14 | 7/8"x14 | O910 | 19.3 | 12.7 | 42.5 | 27 |
| 1JO-10-08 | 7/8"x14 | 3/4"x16 | O908 | 19.3 | 11.13 | 39 | 24 |
| 1JO-10-12 | 7/8"x14 | 1.1/16"x12 | O912 | 19.3 | 15.09 | 45.5 | 32 |
| 1JO-12 | 1-1/16"x12 | 1.1/16"x12 | O912 | 21.9 | 15.09 | 48 | 32 |
| 1JO-12-08 | 1-1/16"x12 | 3/4"x16 | O908 | 21.9 | 11.13 | 43 | 30 |
| 1JO-12-10 | 1-1/16"x12 | 7/8"x14 | O910 | 21.9 | 12.7 | 45 | 30 |
| 1JO-12-16 | 1-1/16"x12 | 1.5/16"x12 | O916 | 21.9 | 15.09 | 48 | 38 |
| 1JO-14 | 1-3/16"x12 | 1.3/16"x12 | O914 | 22.6 | 15.09 | 48.5 | 36 |
| 1JO-14-12 | 1-3/16"x12 | 1.1/16"x12 | O912 | 22.6 | 15.09 | 48.5 | 32 |
| 1JO-16 | 1-5/16"x12 | 1.5/16"x12 | O916 | 23.1 | 15.09 | 49 | 38 |
| 1JO-16-12 | 1-5/16"x12 | 1.1/16"x12 | O912 | 23.1 | 15.09 | 49 | 36 |
| 1JO-16-20 | 1-5/16"x12 | 1.5/8"x12 | O920 | 23.1 | 15.09 | 53 | 50 |
| 1JO-20 | 1-5/8"x12 | 1.5/8"x12 | O920 | 24.3 | 15.09 | 54.5 | 50 |
| 1JO-20-16 | 1-5/8"x12 | 1.5/16"x12 | O916 | 24.3 | 15.09 | 52.5 | 46 |
| 1JO-24 | 1-7/8"x12 | 1.7/8"x12 | O924 | 27.5 | 15.09 | 57.5 | 55 |
| 1JO-24-20 | 1-7/8"x12 | 1.5/8"x12 | O920 | 27.5 | 15.09 | 57.5 | 50 |
| 1JO-32 | 2-1/2"x12 | 2.1/2"x12 | O932 | 33.9 | 15.09 | 66 | 70 |

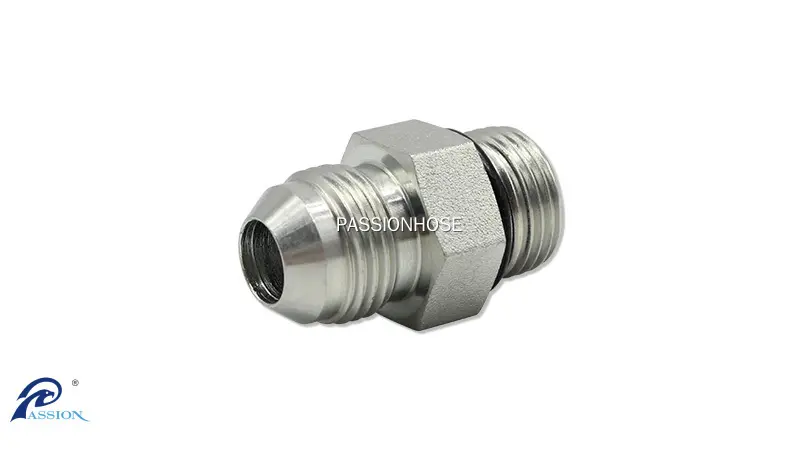

JIC MALE 74 DEG CONE / SAE O-RING BOSS L-SERIES
JIC MALE 74 DEG CONE / JIC MALE 74 DEG CONE
3J
JIC FEMALE 74 DEG SEAT
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
