A hose manufacturer with over two decades of experience.

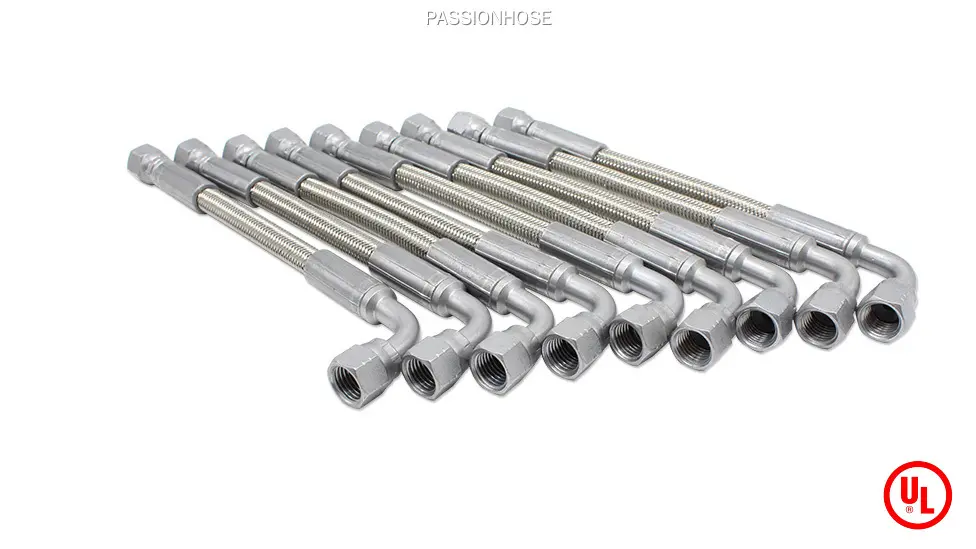

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes

has established a strict storage management system to ensure the excellent quality of flexible ss304 braided convoluted tubing ptfe hose from the source. In addition, we have also established a scientific and perfect quality management system to ensure that flexible ss304 braided convoluted tubing ptfe hose produced are in line with national quality inspection standards of high-quality products.

Inquiry

Guided by scientific and technological innovation, PASSIONHOSE always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. flexible ss304 braided convoluted tubing ptfe hose We have professional employees who have years of experience in the industry. It is them that provides high-quality services for customers all over the world. If you have any questions about our new product flexible ss304 braided convoluted tubing ptfe hose or want to know more about our company, feel free to contact us. Our professionals would love to help you at any time.flexible ss304 braided convoluted tubing ptfe hose It is a water-stop material made of PVC material with various additives through mixing, granulation, extrusion and other processes. It has excellent characteristics such as waterproof, shockproof, corrosion resistance, and anti-aging.

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 2

Product Features

---Why choose PTFE---

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 3

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Inner tube:
smooth PTFE（The imported F-205 of Japan Daikin PTFE）

Outer tube:

stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm
Temperature:

Continuous temperature range: -65℃ to +260℃

Temporary temperature range: -70℃ to +300℃

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 5

Specification
Serial	I.D.(inch)	I.D.(mm)	Thickness of tube (mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius (mm)
1	1/8"	3.5	1.00	6.7	250	1000	16
2	3/16"	4.8	0.85	7.6	205	820	20
3	1/4"	6.4	0.85	9.4	187	750	27
4	5/16"	8.0	0.85	11.1	163	650	27
5	3/8"	10.0	0.85	13.1	130	520	33
6	1/2"	12.7	1.00	16.2	113	450	66
7	5/8"	16.0	1.00	19.4	80	320	150
8	3/4"	19.0	1.20	23.0	70	280	226
9	7/8"	22.2	1.20	26.2	60	240	245
10	1"	25.4	1.50	29.8	50	200	300

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 6

Product Details

---various PTFE hose assemblies---

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 7

Smooth Bore PTFE Hose

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 8

Convoluted Bore PTFE Hose

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 9

Conductive PTFE Hose

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 10

Smooth Bore SS Braided PTFE Hose

brass fittings with o-rings

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 11

Smooth Bore SS Braided PTFE Hose

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 12

Smooth Bore SS Braided PTFE Hose

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About PTFE Hose

As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 14

Air Compressor

For Air

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 15

Turbocharger

For Oil

PASSIONHOSE | Durable flexible ss304 braided convoluted tubing ptfe hose all sizes 16

Iron
