A hose manufacturer with over two decades of experience.

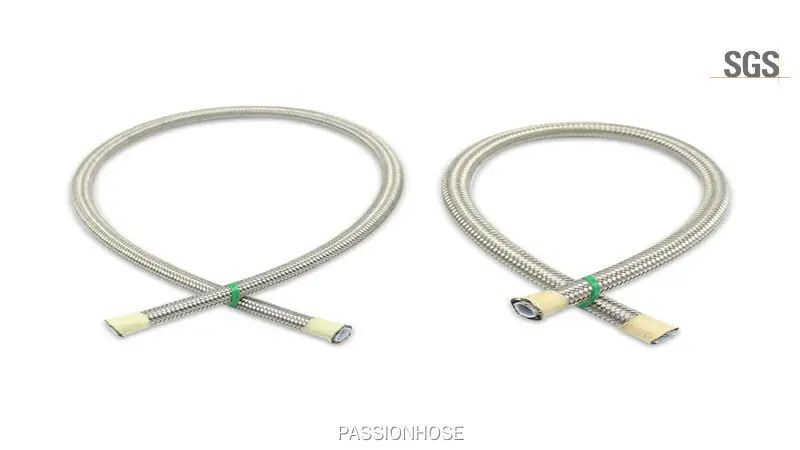

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 1
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 2
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 3
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 4
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 1
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 2
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 3
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 4

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival

Strong technical strength, rich production experience, not only advanced production equipment, sophisticated quality inspection equipment, first-class manufacturing technology, but also a group of excellent design, research and development, production, quality inspection teams, produced flexible ptfe fluid hoses With excellent performance, stable quality and reliable quality, it is deeply loved by customers in the market.
Inquiry

Always striving toward excellence, PASSIONHOSE has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. flexible ptfe fluid hoses Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product flexible ptfe fluid hoses and our company by directly contacting us. is a manufacturer of plastic waterstops with many years of production experience. We pay close attention to quality, strictly control management, and comprehensively control product quality from raw material procurement, production and processing, factory inspection, packaging and transportation, etc., to ensure the production The flexible ptfe fluid hoses are all qualified products in line with national standards.

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 5
Product Features
---Why choose PTFE---
                               PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 6
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 7

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: smooth PTFE(The imported F-205 of Japan Daikin PTFE)

  • Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 8
Specification
Serial No.

I.D.

(inch)

I.D.

 (mm)

Tube Thickness

  (mm)

O.D.

(mm)

W.P.

(bar)

B.P.

(bar)

Min.

Bend Radius

(mm)

1
1/8''3.2
16.5
320108045
23/16''5.00.857.725672575
31/4"6.50.859.321068081
45/16"8.00.8511.3188620131
53/8"10.00.8513.2185540182
61/2"13.0116.5106360211
75/8"16.3
119.580250252
63/4"19.01.223.078223380
71"25.41.529.540195485
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 9
Product Details
---various PTFE hose assemblies---
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 10
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 11
PTFE Hose Assembly

straight JIC female hose end in SS304

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 12
PTFE Hose Assembly

2 meters










PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 13
PTFE Hose Assembly

brass fittings with o-rings

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 14
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 15
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 16

Application
---high temperature, resist chemical---

About our product

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.


PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 17


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 18




Hello, world!
simple hero unit, a simple jumbotron-style con

PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 19




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
PASSIONHOSE | Cost-effective flexible ptfe fluid hoses new arrival 20








Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
