After years of solid and rapid development, PASSIONHOSE has grown into one of the most professional and influential enterprises in China. oil hose PASSIONHOSE have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - new arrival oil hose OEM, or would like to partner up, we'd love to hear from you. produces oil hose in strict accordance with national standards, and the produced oil hose is non-toxic, harmless, environmentally safe, and of high quality, so you can buy and use it with confidence.
◪ Exceptionally flexible for easy routing.
◪ Low Permeation Rate:
(with an average fuel permeation rate of 0.65g/m2/day~13g/m2/day).
◪ High Temperature Resistance:
(temperature range -34℃ to 135℃; Intermittent use at +150℃).
◪ Excellent aging resistance.
Structure:
Barrier: FKM Rubber, low permeation resistance, chemical resistance.
Inner Tube: synthetic rubber with excellent permeation resistance.
Reinforcement: Aramid Yarn, provides exceptional dimensional stability in high-temp.
Outer tube: synthetic rubber with excellent heat resisatnce, aging resistance and ozone resistance.
ContinuousTemperature Range: -34℃ to 135℃.
Intermittent use at: 150℃
| Part No. | I.D. (inch) | I.D. (mm) | Tube Thickness (mm) | O.D. (mm) | W.P. (bar) | B.P. (bar) | B.P. (psi) |
|---|---|---|---|---|---|---|---|
| PSJR9-02 | 1/8'' | 3.2 | 2.9 | 9.0 | 20 | 80 | 1160 |
| PSJR9-03 | 3/16'' | 5.0 | 3.0 | 11.0 | 20 | 80 | 1160 |
| PSJR9-04 | 1/4" | 6.3 | 3.2 | 12.7 | 20 | 80 | 1160 |
| PSJR9-05 | 5/16" | 8.0 | 3.0 | 14.0 | 20 | 80 | 1160 |
| PSJR9-06 | 3/8" | 9.5 | 3.25 | 16.0 | 20 | 80 | 1160 |
| PSJR9-08 | 1/2" | 12.7 | 3.65 | 20.0 | 20 | 80 | 1160 |
| PSJR9-10 | 5/8" | 16.0 | 4.0 | 24.0 | 10 | 40 | 580 |
| PSJR9-12 | 3/4" | 19.0 | 5.5 | 30.0 | 10 | 40 | 580 |
| PSJR9-16 | 1" | 25.0 | 5.0 | 35.0 | 10 | 40 | 580 |
FKM layer strengthen hose's permeability resistance largely
Clear printings with SAE J30R9 standard on the hose
Excellent flexibility and kink resistance
Continuous temperature range:
-34℃ to 135℃.
Excellent ozone resistance
Fuel Injection Hose
Aramid Yarn, provides exceptional dimensional stability in high-temp.

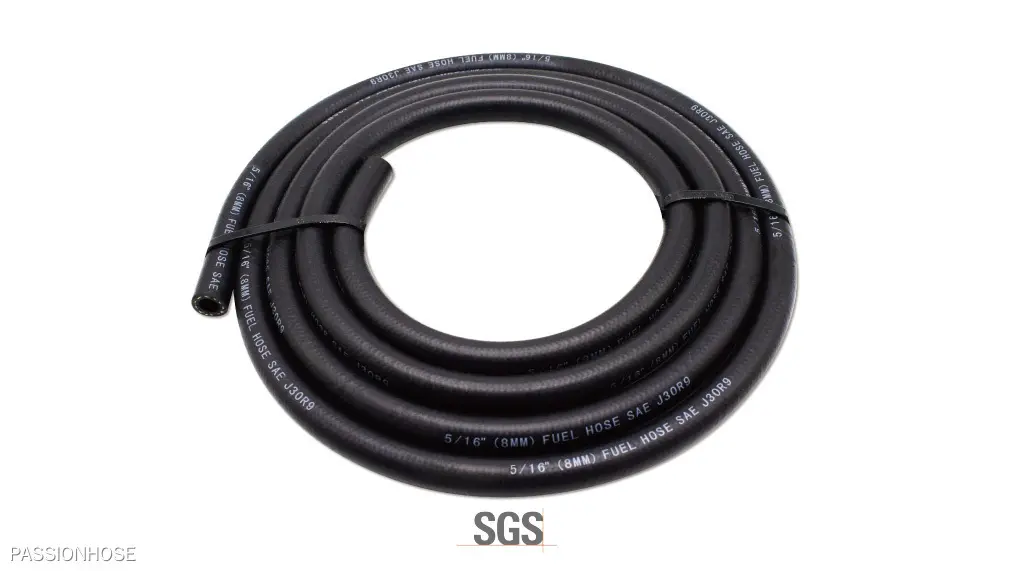

The SAE J30R9 Fuel Injection Hose is designed specifically for auto and truck fuel injection systems.
It is applicable for gasoline, ethanol extended gasoline, oxidized sour gas, diesel fuel, biodiesel (B5, B10, B20), lubrication oil.
(Sour Gas Compatible, Biodiesel Compatible).
For Car Fuel Injection System
Excellent permeation resistance, high temperature resistance, good ozone resistance.
