Over the years, PASSIONHOSE has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. hydraulic fittings and hoses We promise that we provide every customer with high-quality products including hydraulic fittings and hoses and comprehensive services. If you want to know more details, we are glad to tell you.hydraulic fittings and hoses Selecting high-quality materials, it is made by mixing, granulating, extruding and other processes. It has stable performance, high quality and long service life.



Product Features

---Why Choose PAISHUN Hydraulic Hose Fittings---



PAISHUN Hydraulic Hose Fitting Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•




Product Description

---Struction and Specification---

Description

• Detail


• Standard	Yonghua

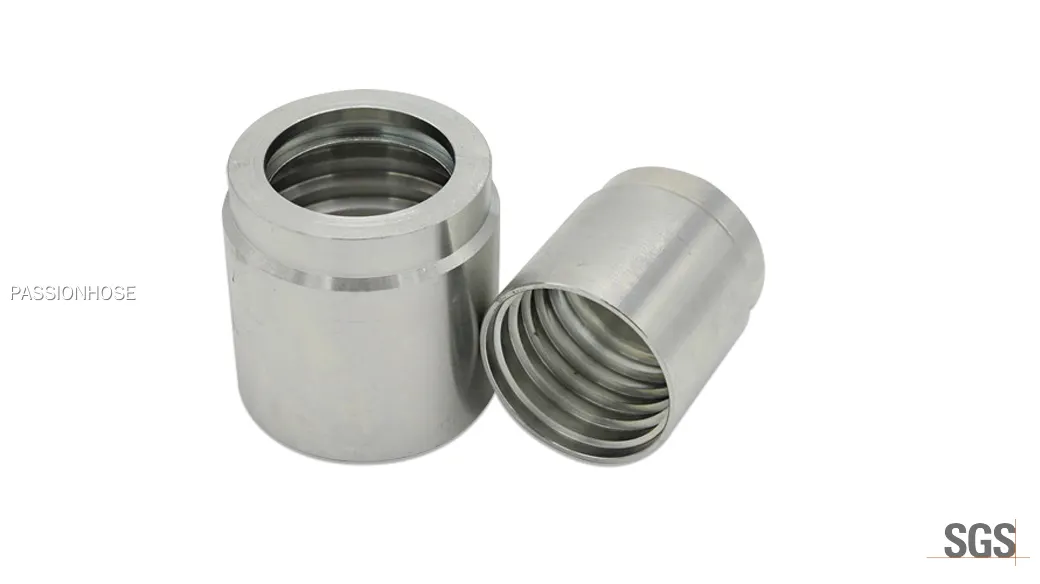

  Part Number	03310 for one wire and two wires high pressure rubber hoses
  Material	Carbon Steel 20#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	HOSE BORE DN	HOS BORE DASH	DIMENSION L	DIMENSION D
03310-03	5	03	23	21
03310-04	6	04	30.5	23
03310-05	8	05	30	24
03310-06	10	06	32	26
03310-08	12	08	34	29.1
03310-10	16	10	37	33
03310-12	20	12	42	37.1
03310-14	22	14	45	40.5
03310-16	25	16	51	46.8
03310-20	32	20	59	59
03310-24	40	24	67	67
03310-32	50	32	72	80



Product Details

---More of PAISHUN Hydraulic Hose Fittings---

                00110

PASSIONCO Ferrule for one wire braided hydraulic hoe



03310

Ferrule for two wire braided hydraulic hose



20511-T

Metric Female 24 degree Cone with o-ring. H.T.



14211T

ORFS Flat Female



26711

JIC female 37 degree cone seat



15611W

One piece type NPT Male





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fittings

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
