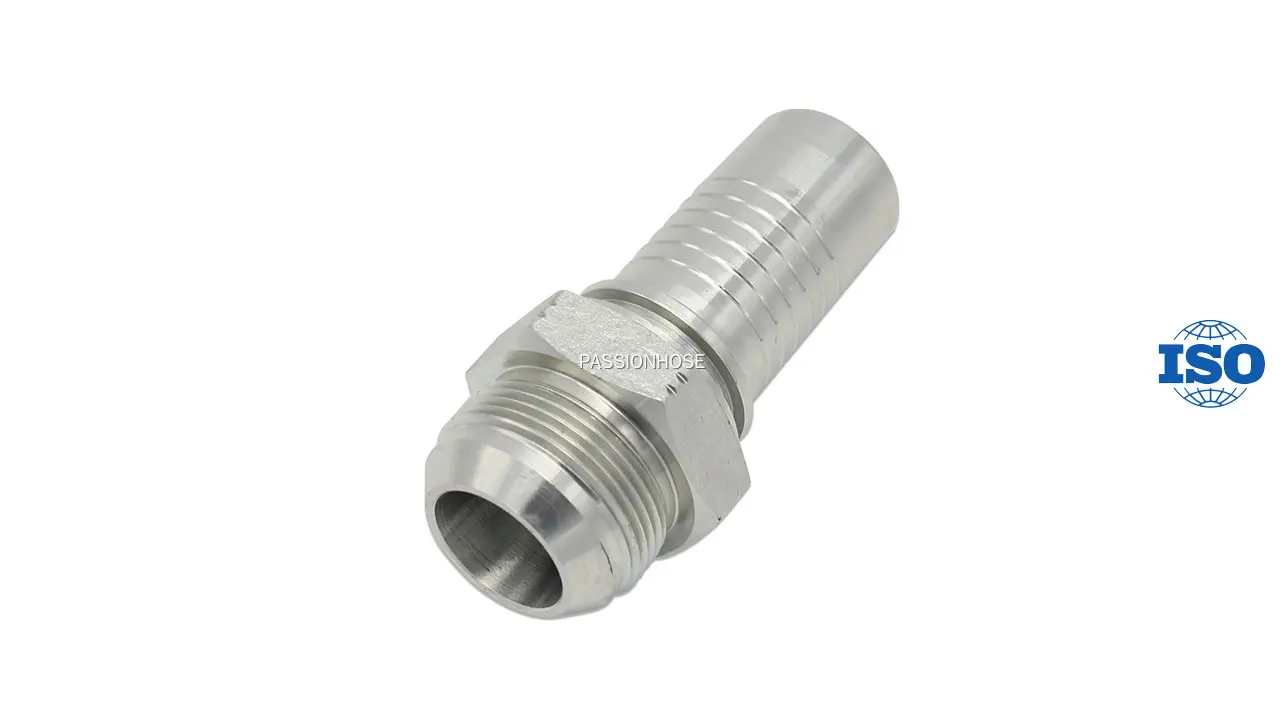

hydraulic hose crimping fittings at Wholesale Prices | PASSIONHOSE1

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. hydraulic hose crimping fittings PASSIONHOSE is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our hydraulic hose crimping fittings and other products, just let us know.hydraulic hose crimping fittings Made of high-quality materials, it has good elasticity, wear resistance, aging resistance and tear resistance, strong and durable, and has a long service life.



Product Features

---Why Choose PAISHUN Hydraulic Hose Fittings---



PAISHUN Hydraulic Hose Fitting Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•




Product Description

---Struction and Specification---

Description

• Detail


• Standard	Yonghua
  Part Number	16711 for wire braided hoses; 16712 for wire spiral hoses
  Material	Carbon Steel 45#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	螺纹 THREAD E	HOSE BORE DN	HOS BORE DASH	DIMENSION A	DIMENSION C	DIMENSION S1
16711-04-03	7/16"x20	5	03	26	14	12
16711-04-04	7/16"x20	6	04	26.5	14	12
16711-05-04	1/2"x20	6	04	26.5	14	14
16711-05-05	1/2"x20	8	05	26.5	14	14
16711-05-06	1/2"x20	10	06	26.5	14	17
16711-06-04	9/16"x18	6	04	26.5	14.1	17
16711-06-05	9/16"x18	8	05	26.5	14.1	17
16711-06-06	9/16"x18	10	06	26.5	14.1	17
16711-08-06	3/4"x16	10	06	31.5	16.7	22
16711-08-08	3/4"x16	12	08	32	16.7	22
16711-10-06	7/8"x14	10	06	33.5	19.3	24
16711-10-08	7/8"x14	12	08	34	19.3	24
16711-10-10	7/8"x14	16	10	35	19.3	24
16711-12-08	1-1/16"x12	12	08	38.5	21.9	30
16711-12-10	1-1/16"x12	16	10	39.5	21.9	30
16711-12-12	1-1/16"x12	20	12	40	21.9	30
16711-12-16	1-1/16"x12	25	16	42.5	21.9	30
16711-14-10	1-3/16"x12	16	10	41.5	22.6	32
16711-14-12	1-3/16"x12	20	12	40.5	22.6	32
16711-16-12	1-5/16"x12	20	12	43	23.1	36
16711-16-16	1-5/16"x12	25	16	43.5	23.1	36
16711-20-16	1-5/8"x12	25	16	47	24.3	46
16711-20-20	1-5/8"x12	32	20	47	24.3	46
16711-24-20	1-7/8"x12	32	20	53	27.5	50
16711-24-24	1-7/8"x12	40	24	53	27.5	50
16711-32-32	2-1/2"x12	50	32	62	33.9	65



Product Details

---More of PAISHUN Hydraulic Hose Fittings---

                00110

PASSIONCO Ferrule for one wire braided hydraulic hoe



03310

Ferrule for two wire braided hydraulic hose



20511-T

Metric Female 24 degree Cone with o-ring. H.T.



14211T

ORFS Flat Female



26711

JIC female 37 degree cone seat



15611W

One piece type NPT Male





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fittings

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
