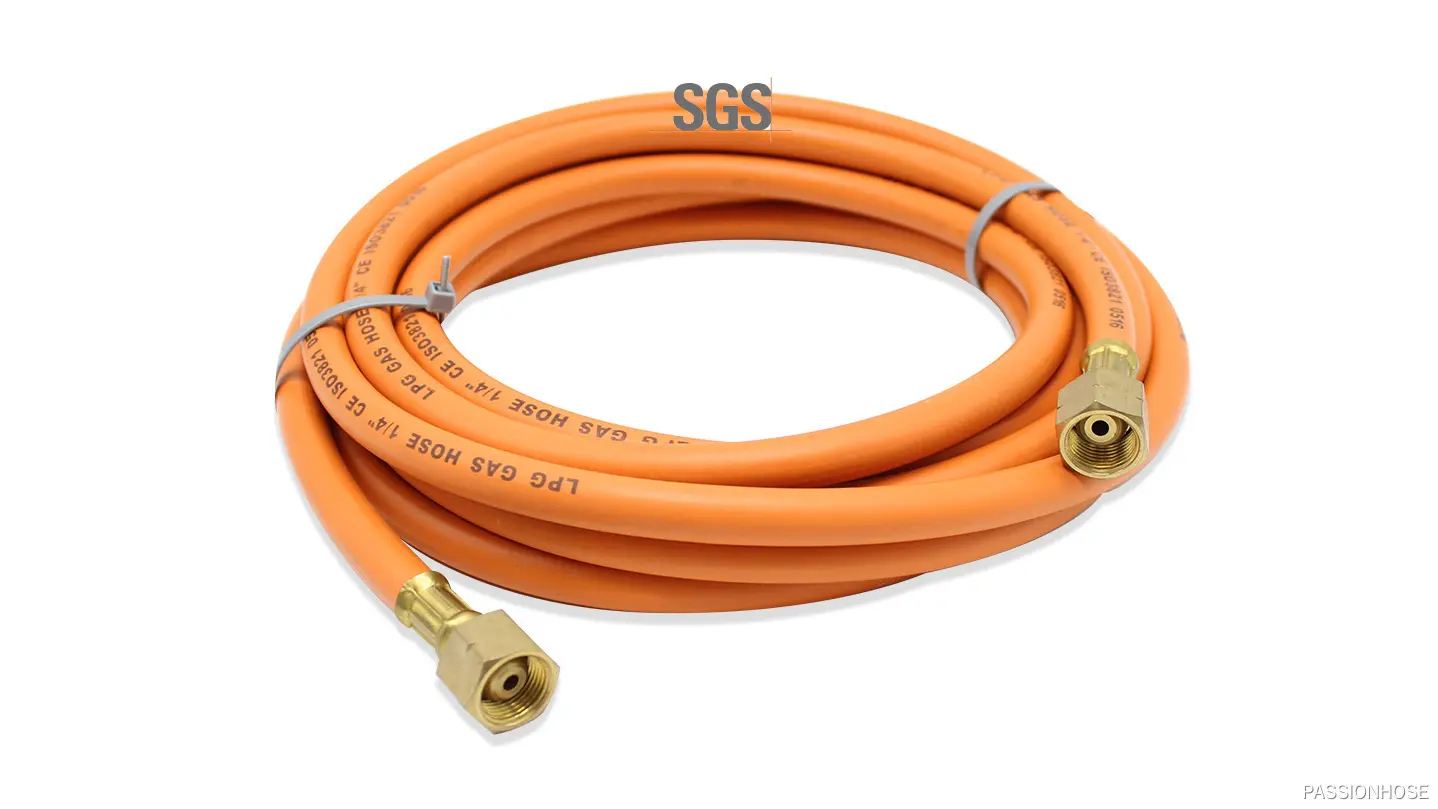

Over the years, PASSIONHOSE has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. high pressure lpg gas hose We promise that we provide every customer with high-quality products including high pressure lpg gas hose and comprehensive services. If you want to know more details, we are glad to tell you.high pressure lpg gas hose Made of high-quality materials, it has good elasticity, wear resistance, aging resistance and tear resistance, strong and durable, and has a long service life.
◪ Durable and Safety.
◪ Good flexibility with excellent kink resistance.
◪ Excellent weather resistance, and aging resistance.
◪ NBR*EPDM material.
◪ With smooth, high pressure.
◪ Cost-effectiveness
Structure:
Inner Tube: NBR material, excellent oil resistance. good physical properties, and good permeability.
Reinforcement: 1500D High tensile polyester fiber wire reinforced.
Outer Tube: EPDM material, excellent heat, ozone, and weathering resistance.
Adhesion: standard adhesion is 1,5 kN/m, and the adhesion of our tubes can reach 2,5 kN/m.
Standard: ISO3821, EN16436, BS3212.
Test: the tensile strength of the inner tube and cover is ≥5MPa.
Certificate: CE certificate.
N-pentane test: the expansion and shrinkage rate is no more than 7%
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 3/16" | 5.0 | 12.0 | 20 | 60 |
| 2 | 1/4" | 6.0 | 13.0 | 20 | 60 |
| 3 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 4 | 3/8" | 9.5 | 17.0 | 20 | 60 |
BS3212, ISO3821, EN16436 standard
with 60 bar burst pressure, 20 bar working pressure
Rubber Gas Hose
with different sizes 6mm, 8mm, 10mm
supplied in rolls 5m, 10m, 15m
smooth, and nice appearance
3/8" BSP left-hand fittings
A high-pressure rubber gas hose is reinforced with textile.
It is for delivering gas, LPG, propane, natural gas, etc for industrial application
The hose is with strong permeation resistance with excellent aging resistance.
For Domestic Gas Tanks Application Transferring Liquefied Petroleum Gas
For Gas Stove
