High End hydraulic hose pipe company | PASSIONHOSE

PASSIONHOSE has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product hydraulic hose pipe will bring you a lot of benefits. We are always standby to receive your inquiry. hydraulic hose pipe We have been investing a lot in the product R&D, which turns out to be effective that we have developed hydraulic hose pipe. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.The hydraulic hose pipe produced by is carefully selected materials, fine workmanship, and high quality. Compared with other similar products, it has a longer service life, better water-stop performance, and better shock absorption and buffer performance, and has a more competitive advantage in the market.



Product Features

---Why choose PTFE---



PTFE Features

• ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

• ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

• ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

• ◪ With a very low friction coefficient. non-flammable.

• ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

• ◪ With excellent electrical characteristics.

• ◪ Excellent mechanical properties, shock resistance and flexibility.






Product Description

---struction and specification---

Description

• Structure:

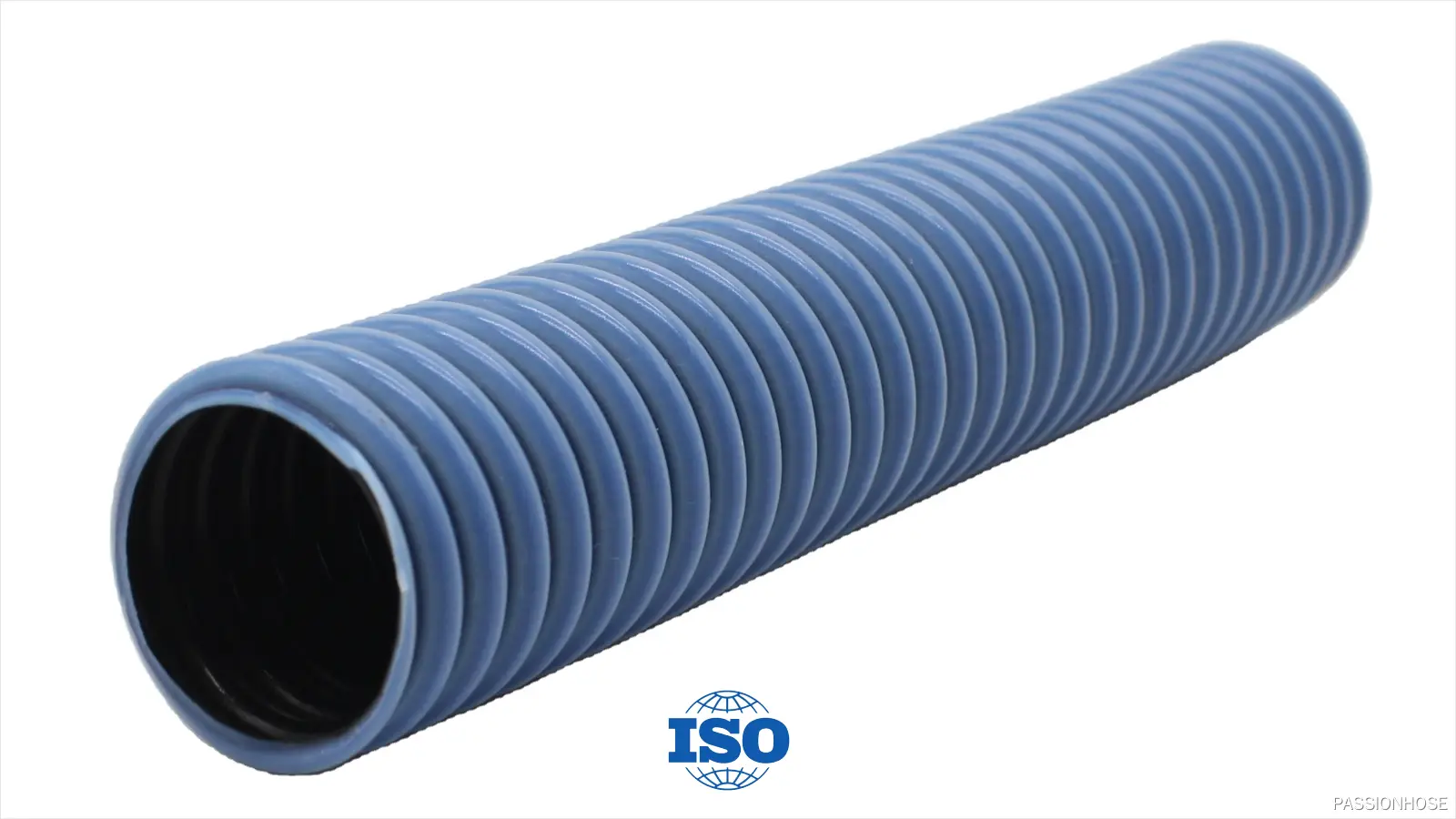

• Inner tube: corrugated PTFE（The imported F-205 of Japan Daikin PTFE）

• Coating: A black conductive layer

• Maximum operative temperature: 260°C

• Application: High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper

• and printing industries. For liquids, gases, and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.

• Coil length: 50m (Random Lengths).

• Testing a 350 mm with a 1 000 VDC potential, the minimum electrical current to be conducted is: • 10 µA for a size up to dash 8 • 20 µA for a size above dash 8

• Longitudinal tensile strength : 15.1 N/mm² for every dash

• Transverse tensile strength : dash < 16: N/A

•                                               dash > 16: 12.4 N/mm²



Specification

Part No.	I.D. (inch)	I.D. Tolerance  (mm)	Tube Thickness (mm)	Corrugated O.D. (mm)	W.P. (bar)	Specific gravity	Min.  Bend Radius (mm)
PSCPH-51	2	±1	1.5	61	2	2.14	150



Product Details

---various PTFE hose assemblies---



PTFE Hose Assembly

45 deg. JIC female hose end in SS304



PTFE Hose Assembly

straight JIC female hose end in SS304



PTFE Hose Assembly

2 meters









PTFE Hose Assembly

brass fittings with o-rings



PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated



PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated





Application

---high temperature, resist chemical---


About PTFE Hose

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.





For Air System

Convey high temperature and high-pressure air

For Fuel Pump

Covey high pressure and low pressure fuel





Hello, world!

simple hero unit, a simple jumbotron-style con



For Oil Line

Covey fuel for oil line in vehicle

For Brake System

Covey fuel for brake system in vehicle
