Always striving toward excellence, PASSIONHOSE has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. flexible oil hydraulic hose We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product flexible oil hydraulic hose or our company.flexible oil hydraulic hose Made of environmentally friendly materials and advanced technology, it has good waterproof performance, strong adaptability to deformation, safety and environmental protection, and is non-toxic and harmless.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Impulse over 400,000 times.
◪ Suitable for heavy machinery.
◪ High concentricity.
◪ Solid construction and long service lifetime.
◪ Flexible and light.
Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Four layers of high tensile steel wire. |
| Outer Cover | Abrasion and ozone-resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 25 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| EN856 4SP | |||||||||
| P06-4SP | 3/8" | 9.5 | 20.8 | 445 | 6675 | 1780 | 26700 | 180 | 650 |
| P08-4SP | 1/2" | 12.7 | 24.0 | 415 | 6225 | 1660 | 24900 | 230 | 920 |
| P10-4SP | 5/8" | 15.9 | 27.2 | 350 | 5250 | 1400 | 21000 | 250 | 1070 |
| P12-4SP | 3/4" | 19.0 | 31.0 | 350 | 5250 | 1400 | 21000 | 300 | 1600 |
| P16-4SP | 1" | 25.4 | 38.7 | 280 | 4200 | 1120 | 16800 | 340 | 1915 |
| P20-4SP | 1 1/4" | 31.8 | 45.5 | 210 | 3150 | 840 | 12600 | 460 | 2100 |
| P24-4SP | 1 1/2" | 38.1 | 52.8 | 185 | 2775 | 740 | 11100 | 560 | 2800 |
| P32-4SP | 2" | 50.8 | 67.8 | 165 | 2475 | 660 | 9900 | 700 | 3700 |
| EN856 4SH | |||||||||
| P12-4SH | 3/4" | 19.0 | 31.0 | 420 | 6300 | 1680 | 25200 | 280 | 1500 |

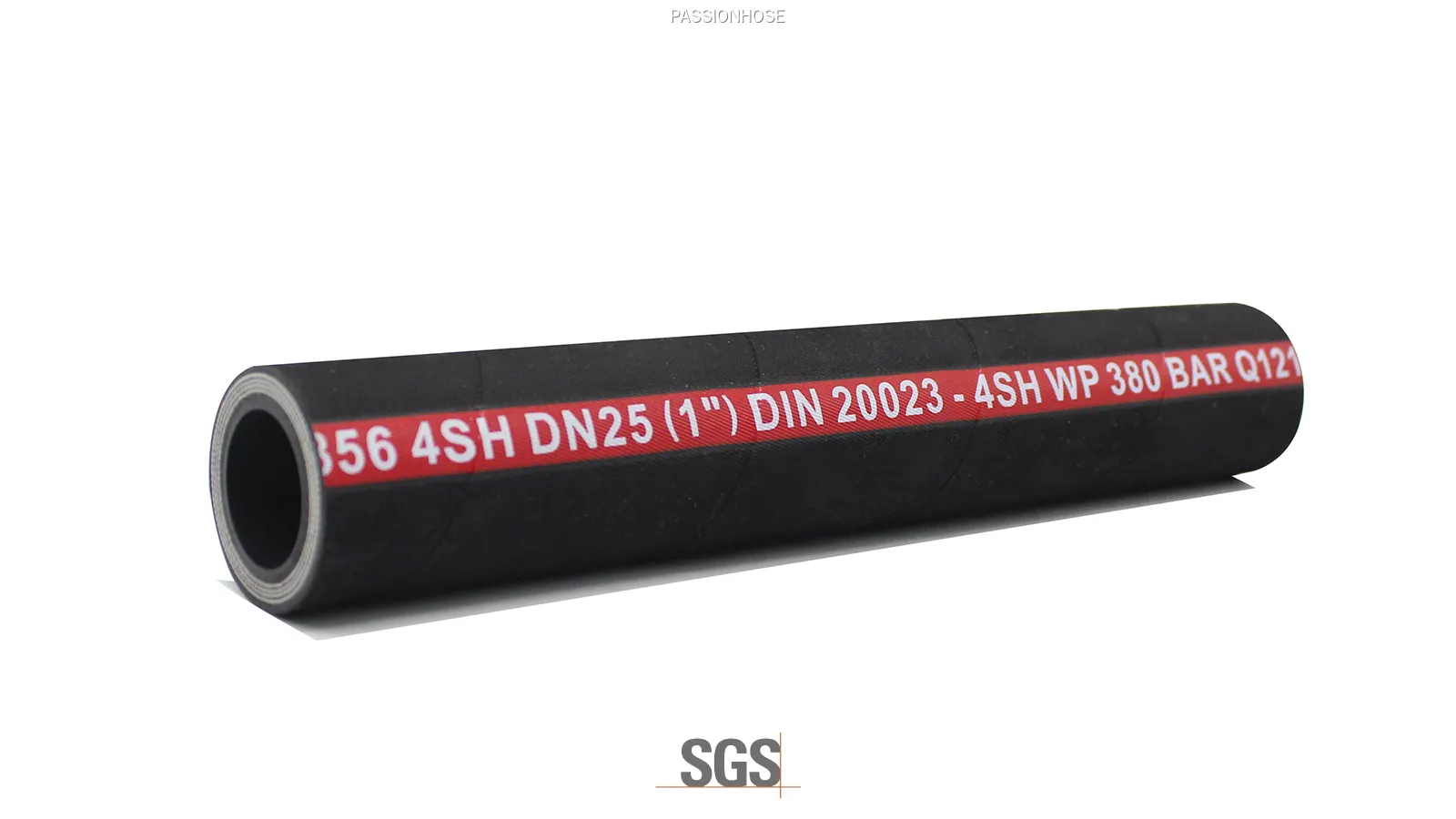

| P16-4SH | 1" | 25.4 | 38.7 | 380 | 5700 | 1520 | 22800 | 340 | 2065 |
| P20-4SH | 1 1/4" | 31.8 | 45.5 | 350 | 5250 | 1400 | 21000 | 460 | 2425 |
| P24-4SH | 1 1/2" | 38.1 | 52.8 | 290 | 4350 | 1160 | 17400 | 560 | 3235 |
| P32-4SH | 2" | 50.8 | 67.8 | 250 | 3750 | 1000 | 15000 | 700 | 4460 |
Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Cutting of the Reinforcement
Inside of the crimped hose.
With advanced winding and spiral machines, the steel wire layer is very neat and even. Also with high concentricity.
Straight JIC female hose ends in carbon steel with zinc plated.
BSP female fittings hose ends for construction machinery.
Paishun is one of the top hydraulic hose manufacturers in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
