Over the years, PASSIONHOSE has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. stainless steel hydraulic fittings PASSIONHOSE have a group of service professionals who are responsible for answering questions raised by customers through the Internet or phone, tracking the logistics status, and helping customers solve any problem. Whether you'd like to get more info on what, why and how we do, try our new product - Fine Quality stainless steel hydraulic fittings overseas market, or would like to partner up, we'd love to hear from you. Always adhering to the business philosophy of 'credibility first, quality first, service first', a set of scientific and rigorous quality management system has been established to check and strictly control the quality throughout the whole process of product production to ensure that the products produced The stainless steel hydraulic fittings is reliable in performance, excellent in quality and stable in quality.
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |
| Part Number | 20411 for wire braided hoses; 20412 for wire spiral hoses |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |
| Part No. | 螺纹 THREAD E | HOSE BORE DN | HOS BORE DASH | O-ring | DIMENSION A | DIMENSION C | DIMENSION S2 |
|---|---|---|---|---|---|---|---|
| 20411-12-04 | M12x1.5 | 6 | 04 | O04.5X1.5 | 26 | 1 | 17 |
| 20411-14-04 | M14x1.5 | 6 | 04 | O06.5X1.5 | 27.5 | 2 | 19 |
| 20411-14-06 | M14x1.5 | 10 | 06 | O06.5X1.5 | 27.5 | 2 | 19 |
| 20411-16-04 | M16x1.5 | 6 | 04 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-16-05 | M16x1.5 | 8 | 05 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-16-06 | M16x1.5 | 10 | 06 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-18-05T | M18x1.5 | 8 | 05 | O10.0X1.5 | 24.5 | 1.5 | 22 |
| 20411-18-06 | M18x1.5 | 10 | 06 | O10.0X1.5 | 29 | 2.5 | 24 |
| 20411-18-08 | M18x1.5 | 12 | 08 | O10.0X1.5 | 29.5 | 2.5 | 24 |
| 20411-22-05T | M22x1.5 | 8 | 05 | O12.0X2.0 | 26.5 | 3 | 27 |
| 20411-22-06T | M22x1.5 | 10 | 06 | O12.0X2.0 | 26.5 | 3 | 27 |
| 20411-22-08 | M22x1.5 | 12 | 08 | O12.0X2.0 | 32 | 2.5 | 27 |
| 20411-26-10 | M26x1.5 | 16 | 10 | O15.0X2.0 | 34.5 | 2.5 | 32 |
| 20411-26-12 | M26x1.5 | 20 | 12 | O15.0X2.0 | 35 | 2.5 | 32 |
| 20411-30-10T | M30x2 | 16 | 10 | O20.0X2.0 | 31 | 3.8 | 36 |
| 20411-30-12 | M30x2 | 20 | 12 | O20.0X2.0 | 39 | 4 | 36 |
| 20411-36-12T | M36x2 | 20 | 12 | O26.0X2.0 | 33 | 4.5 | 46 |
| 20411-36-14T | M36x2 | 22 | 14 | O26.0X2.0 | 33 | 4.5 | 46 |
| 20411-45-16T | M45x2 | 25 | 16 | O32.0X2.5 | 37 | 4 | 55 |
| 20411-45-20T | M45x2 | 32 | 20 | O32.0X2.5 | 37.5 | 4 | 55 |
| 20411-52-20T | M52x2 | 32 | 20 | O38.0X2.5 | 38.5 | 4 | 60 |
| 20411-52-20T | M52x2 | 32 | 20 | O38.0X2.5 | 38.5 | 4 | 60 |
PASSIONCO Ferrule for one wire braided hydraulic hoe
Ferrule for two wire braided hydraulic hose
20511-T

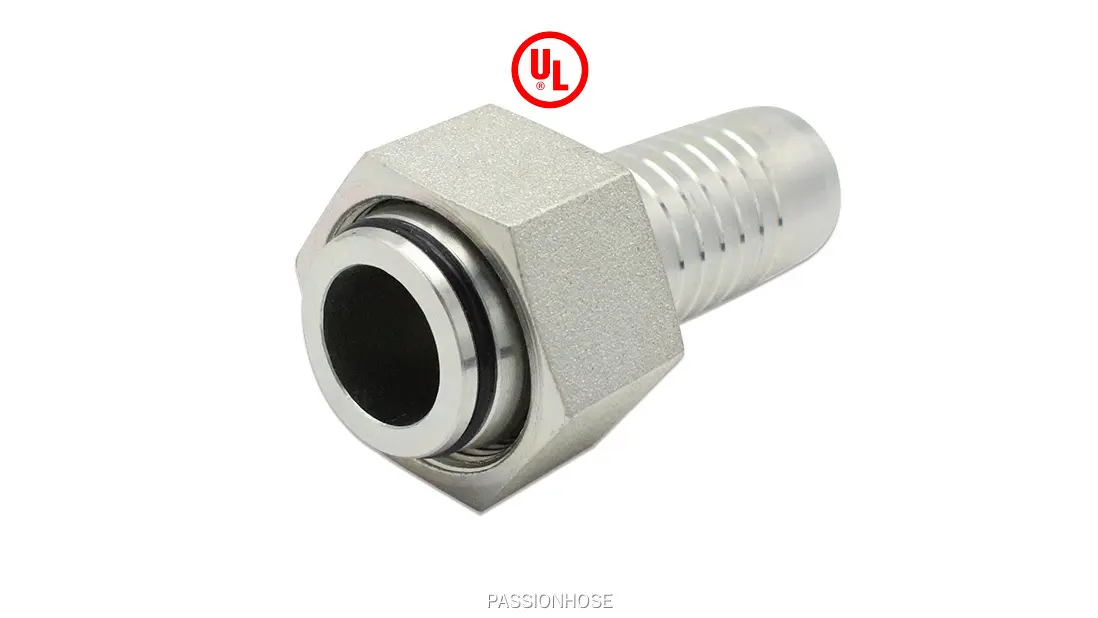

Metric Female 24 degree Cone with o-ring. H.T.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
