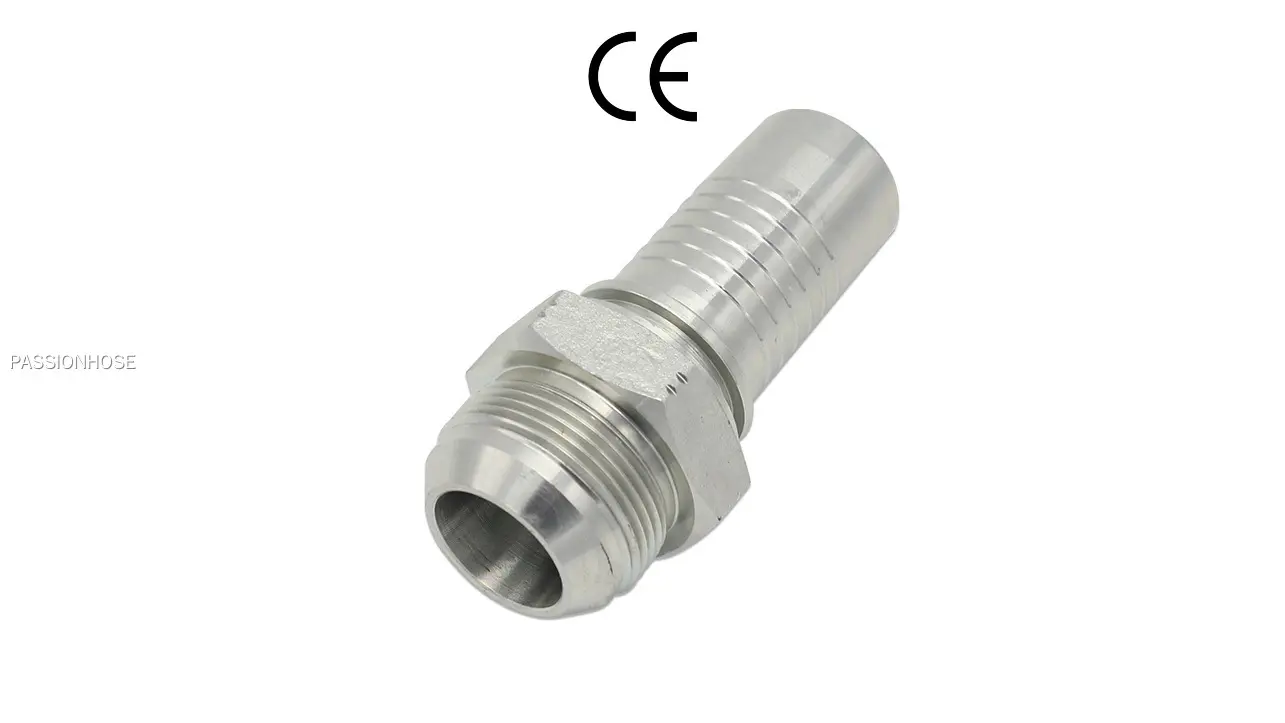

After years of solid and rapid development, PASSIONHOSE has grown into one of the most professional and influential enterprises in China. hydraulic hose fittings We have been investing a lot in the product R&D, which turns out to be effective that we have developed hydraulic hose fittings. Relying on our innovative and hard-working staff, we guarantee that we offer customers the best products, the most favorable prices, and the most comprehensive services as well. Welcome to contact us if you have any questions.hydraulic hose fittings Made of environmentally friendly materials and advanced technology, it has good waterproof performance, strong adaptability to deformation, safety and environmental protection, and is non-toxic and harmless.
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |
| Part Number | 16711 for wire braided hoses; 16712 for wire spiral hoses |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |
| Part No. | 螺纹 THREAD E | HOSE BORE DN | HOS BORE DASH | DIMENSION A | DIMENSION C | DIMENSION S1 |
|---|---|---|---|---|---|---|
| 16711-04-03 | 7/16"x20 | 5 | 03 | 26 | 14 | 12 |
| 16711-04-04 | 7/16"x20 | 6 | 04 | 26.5 | 14 | 12 |
| 16711-05-04 | 1/2"x20 | 6 | 04 | 26.5 | 14 | 14 |
| 16711-05-05 | 1/2"x20 | 8 | 05 | 26.5 | 14 | 14 |
| 16711-05-06 | 1/2"x20 | 10 | 06 | 26.5 | 14 | 17 |
| 16711-06-04 | 9/16"x18 | 6 | 04 | 26.5 | 14.1 | 17 |
| 16711-06-05 | 9/16"x18 | 8 | 05 | 26.5 | 14.1 | 17 |
| 16711-06-06 | 9/16"x18 | 10 | 06 | 26.5 | 14.1 | 17 |
| 16711-08-06 | 3/4"x16 | 10 | 06 | 31.5 | 16.7 | 22 |
| 16711-08-08 | 3/4"x16 | 12 | 08 | 32 | 16.7 | 22 |
| 16711-10-06 | 7/8"x14 | 10 | 06 | 33.5 | 19.3 | 24 |
| 16711-10-08 | 7/8"x14 | 12 | 08 | 34 | 19.3 | 24 |
| 16711-10-10 | 7/8"x14 | 16 | 10 | 35 | 19.3 | 24 |
| 16711-12-08 | 1-1/16"x12 | 12 | 08 | 38.5 | 21.9 | 30 |
| 16711-12-10 | 1-1/16"x12 | 16 | 10 | 39.5 | 21.9 | 30 |
| 16711-12-12 | 1-1/16"x12 | 20 | 12 | 40 | 21.9 | 30 |
| 16711-12-16 | 1-1/16"x12 | 25 | 16 | 42.5 | 21.9 | 30 |
| 16711-14-10 | 1-3/16"x12 | 16 | 10 | 41.5 | 22.6 | 32 |
| 16711-14-12 | 1-3/16"x12 | 20 | 12 | 40.5 | 22.6 | 32 |
| 16711-16-12 | 1-5/16"x12 | 20 | 12 | 43 | 23.1 | 36 |
| 16711-16-16 | 1-5/16"x12 | 25 | 16 | 43.5 | 23.1 | 36 |
| 16711-20-16 | 1-5/8"x12 | 25 | 16 | 47 | 24.3 | 46 |
| 16711-20-20 | 1-5/8"x12 | 32 | 20 | 47 | 24.3 | 46 |
| 16711-24-20 | 1-7/8"x12 | 32 | 20 | 53 | 27.5 | 50 |
| 16711-24-24 | 1-7/8"x12 | 40 | 24 | 53 | 27.5 | 50 |
| 16711-32-32 | 2-1/2"x12 | 50 | 32 | 62 | 33.9 | 65 |
PASSIONCO Ferrule for one wire braided hydraulic hoe
Ferrule for two wire braided hydraulic hose
20511-T
Metric Female 24 degree Cone with o-ring. H.T.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
