Set up years ago, PASSIONHOSE is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. hydraulic connectors If you are interested in our new product hydraulic connectors and others, welcome you to contact us.hydraulic connectors Excellent material selection, exquisite workmanship, stable quality, reliable quality, strong and durable, even if used for a long time, it is not easy to fade or break.
◪ No complaint---standard process and excellent service
◪ Receive them in a very short time---enough stock
◪ Accurate dimensions---automatic CNC machines
◪ Receive them without damage---strong packing
◪ Free sample available
◪ OEM and ODM
◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies
Detail
| Standard | Yonghua |

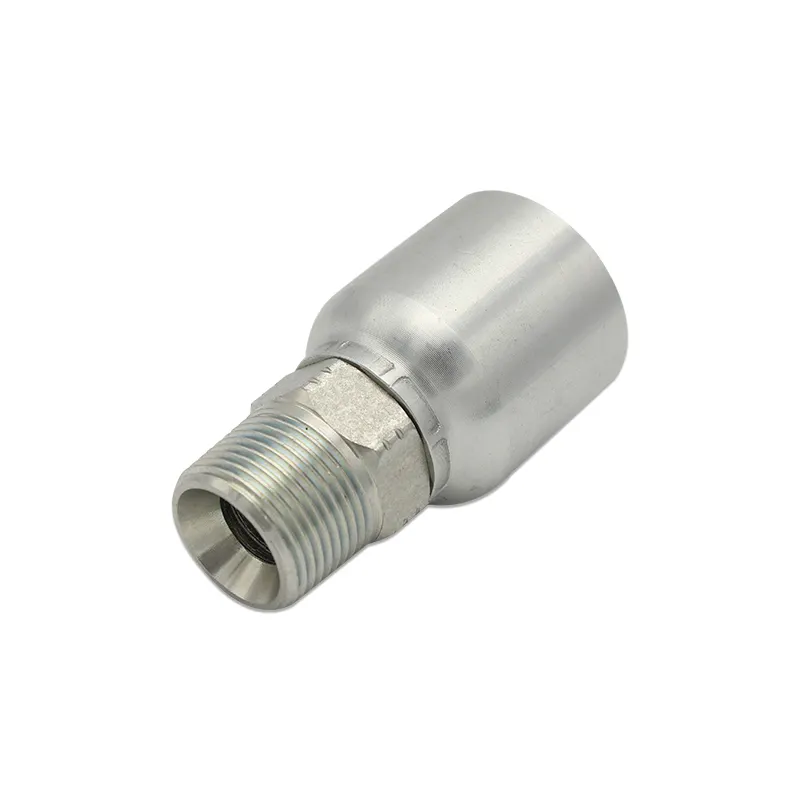

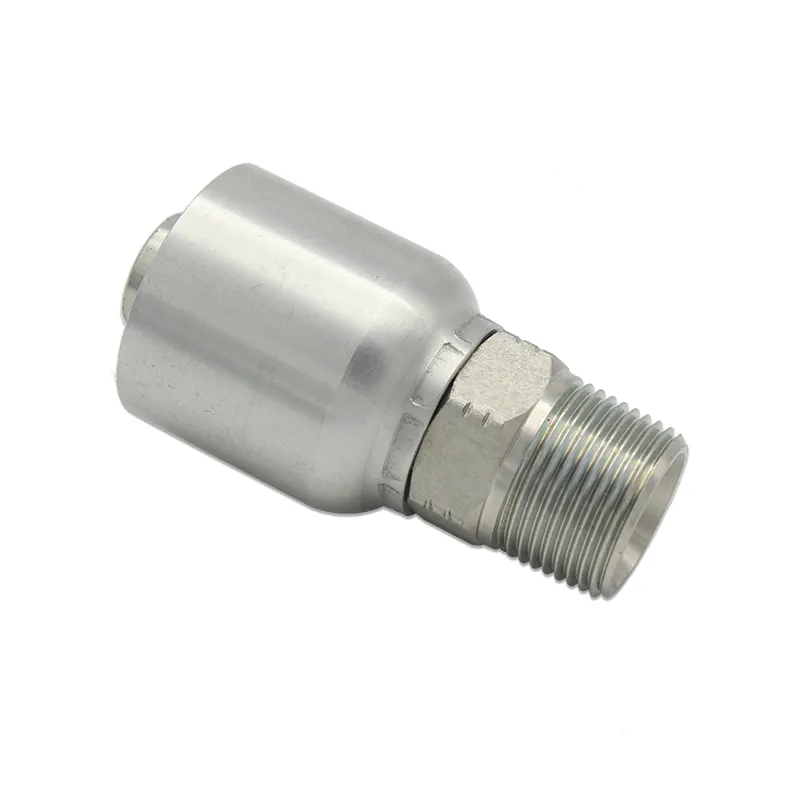

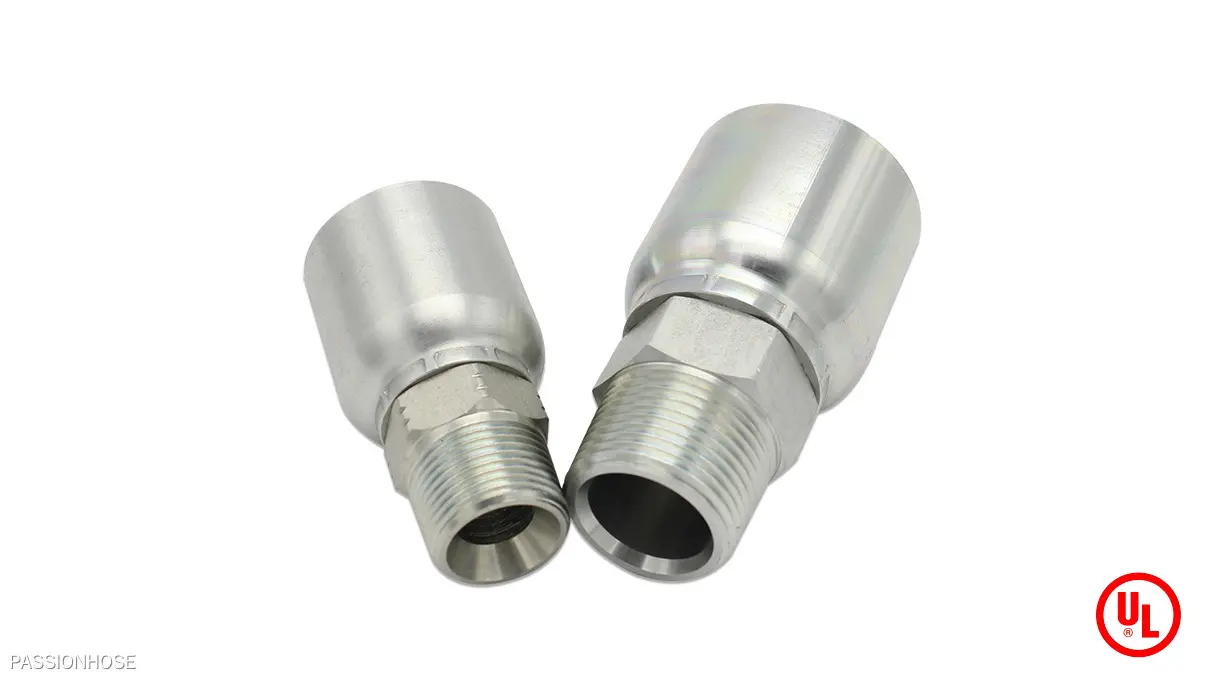

| Part Number | 15611-RW for wire braided hoses |
| Material | Carbon Steel 45# |
| Surface | Zinc plated with Cr+3 |
| Testing | Pass at least 120 hours of salt spray test |
| Part No. | 螺纹 THREAD E | HOSE BORE DN | HOS BORE DASH | DIMENSION A | DIMENSION B | DIMENSION H |
|---|---|---|---|---|---|---|
| 15611-02-04RW | 1/8"x27 NPTF | 6 | 04 | 47 | 23 | 12 |
| 15611-04-04RW | 1/4"x18 NPTF | 6 | 04 | 53 | 29 | 14 |
| 15611-06-04RW | 3/8"x18 NPTF | 6 | 04 | 55 | 31 | 19 |
| 15611-04-05RW | 1/4"x18 NPTF | 8 | 05 | 53 | 29 | 14 |
| 15611-06-05RW | 3/8"x18 NPTF | 8 | 05 | 55 | 31 | 19 |
| 15611-04-06RW | 1/4"x18 NPTF | 10 | 06 | 52 | 29 | 14 |
| 15611-06-06RW | 3/8"x18 NPTF | 10 | 06 | 54 | 31 | 19 |
| 15611-08-06RW | 1/2"x14 NPTF | 10 | 06 | 55 | 32 | 22 |
| 15611-06-08RW | 3/8"x18 NPTF | 12 | 08 | 55 | 32 | 19 |
| 15611-08-08RW | 1/2"x14 NPTF | 12 | 08 | 62 | 38 | 22 |
| 15611-08-10RW | 1/2"x14 NPTF | 16 | 10 | 63 | 38 | 22 |
| 15611-12-10RW | 3/4"x14 NPTF | 16 | 10 | 59 | 34 | 27 |
| 15611-12-12RW | 3/4"x14 NPTF | 20 | 12 | 60 | 34 | 27 |
| 15611-16-16RW | 1"x11-1/2 NPTF | 25 | 16 | 75 | 45 | 36 |
| 15611-20-20RW | 1-1/4"x11-1/2 | 32 | 20 | 104 | 57 | 46 |
| 15611-24-24RW | 1-1/2"x11-1/2 | 40 | 24 | 89 | 51 | 50 |
| 15611-32-32RW | 2"x11-1/2 | 50 | 32 | 104 | 55 | 65 |
PASSIONCO Ferrule for one wire braided hydraulic hoe
Ferrule for two wire braided hydraulic hose
20511-T
Metric Female 24 degree Cone with o-ring. H.T.
ORFS Flat Female
JIC female 37 degree cone seat
One piece type NPT Male
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
