factory Direct refrigerant charging hose manufacturing | PASSIONHOSE1

Set up years ago, PASSIONHOSE is a professional manufacturer and also a supplier with strong capabilities in production, design, and R&D. refrigerant charging hose Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product refrigerant charging hose or our company, feel free to contact us. is a manufacturer of plastic waterstops with many years of production experience. We pay close attention to quality, strictly control management, and comprehensively control product quality from raw material procurement, production and processing, factory inspection, packaging and transportation, etc., to ensure the production The refrigerant charging hose are all qualified products in line with national standards.



Product Features



 Features

• ◪ Flexibility

• ◪ High quality

• ◪ Excellent adhesion

• ◪ Red, Blue, and Yellow Colors

• ◪ 800psi working pressure

• ◪ Resistant to Aging and Abrasion

• ◪ Ball valve is brass material

•


•






Product Description

---struction and specification---

Description

• Structure:

• Inner tube: High nitrile-butadiene rubber (NBR)

• Outer tube: Smooth, NBR&PVC blends.

• Reinforcement: Polyester fiber spiral line.

• Operating temperature range: -30℃ to +100℃

• Color: Red & Blue & Yellow

• One end:1/4"SAE female straight connector

• The other end: 5/16" SAE female 45° connector with ball valve

•




Specification

Part Number	I.D.(mm)	I.D.(inch)	Thickness (mm)	O.D.(mm)	W.P.(psi)	B.P.(bar/psi)	Lengths (m)
PRC-1	5	3/16"	3	11	500	2500	100
PRC-2	5	3/16"	3	11	600	3000	100
PRC-3	5	3/16"	3	11	800	4000	100



Product Details

---various refrigerant charging hose---

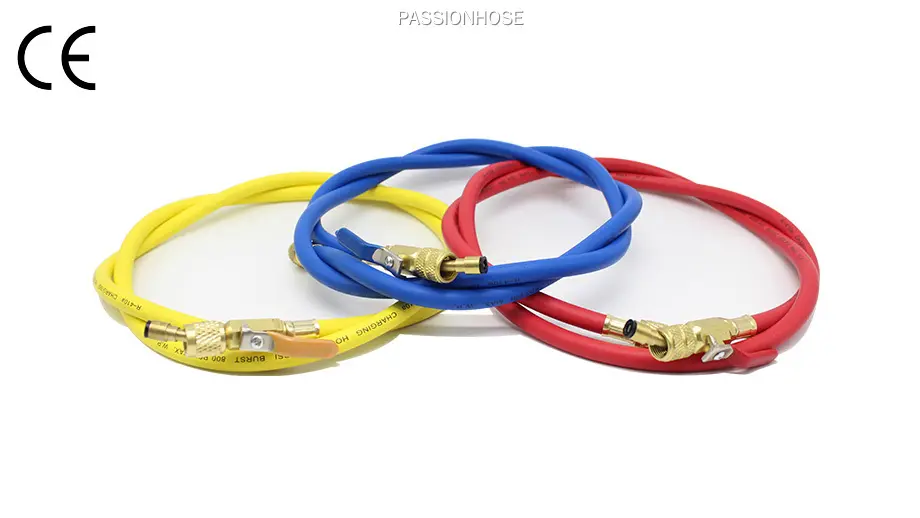

Refrigerant Charging Hose

5mm Red, Blue, Yellow

     Refrigerant Charging Hose

Working Pressure 500, 600, 800psi

Refrigerant Charging Hose Assembly

Refrigerant Charging Hose with 1/4"SAE connector







Refrigerant Charging Hose Assembly

R1234yf quick coupler



Refrigerant Charging Hose Assembly

1/4"SAE bend 45° connector



Refrigerant Charging Hose Assembly

Connector and Ball valve





Application

---high pressure and flexible---


About our product

A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.





For Air Conditioning System

For conveying R12，R22，R134a etc

For Automotive Refrigerant

      Applied widely to auto refrigerant
