Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE

anti static convoluted ptfe hose Reasonable design, simple structure, excellent workmanship, high quality, long service life and wide application range.

Inquiry

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. anti static convoluted ptfe hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product anti static convoluted ptfe hose and our company by directly contacting us.anti static convoluted ptfe hose Selecting high-quality materials, it is made by mixing, granulating, extruding and other processes. It has stable performance, high quality and long service life.

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 2

Product Features

---Why choose PTFE---

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 3

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Inner tube:
smooth PTFE（The imported F-205 of Japan Daikin PTFE）

Outer tube:

stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm
Temperature:

Continuous temperature range: -65℃ to +260℃

Temporary temperature range: -70℃ to +300℃

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 5

Specification
Serial	I.D.(inch)	I.D.(mm)	Thickness of tube (mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius (mm)
1	1/8"	3.5	1.00	6.7	250	1000	16
2	3/16"	4.8	0.85	7.6	205	820	20
3	1/4"	6.4	0.85	9.4	187	750	27
4	5/16"	8.0	0.85	11.1	163	650	27
5	3/8"	10.0	0.85	13.1	130	520	33
6	1/2"	12.7	1.00	16.2	113	450	66
7	5/8"	16.0	1.00	19.4	80	320	150
8	3/4"	19.0	1.20	23.0	70	280	226
9	7/8"	22.2	1.20	26.2	60	240	245
10	1"	25.4	1.50	29.8	50	200	300

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 6

Product Details

---various PTFE hose assemblies---

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 7

Smooth Bore PTFE Hose

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 8

Convoluted Bore PTFE Hose

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 9

Conductive PTFE Hose

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 10

Smooth Bore SS Braided PTFE Hose

brass fittings with o-rings

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 11

Smooth Bore SS Braided PTFE Hose

straight JIC female hose ends in carbon steel with zinc-nickel plated

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 12

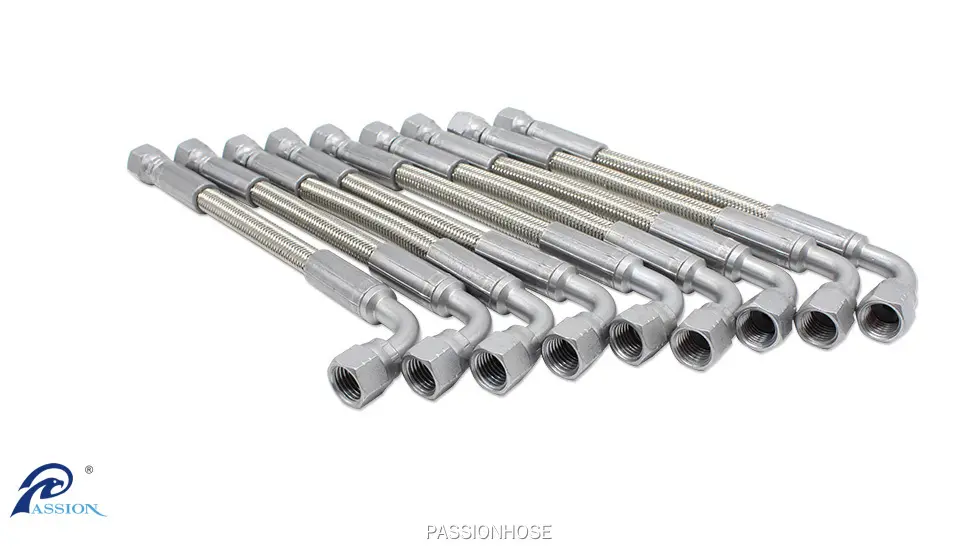

Smooth Bore SS Braided PTFE Hose

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About PTFE Hose

As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 14

Air Compressor

For Air

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 15

Turbocharger

For Oil

Durable anti static convoluted ptfe hose new arrival | PASSIONHOSE 16

Iron

For Steam
