rubber oil hose Selecting high-quality materials, it is made by mixing, granulating, extruding and other processes. It has stable performance, high quality and long service life.
Products Details

PASSIONHOSE has developed to be a professional manufacturer and reliable supplier of high-quality products. Throughout the whole production process, we strictly implement the ISO quality management system control. Since established, we always adhere to independent innovation, scientific management, and continuous improvement, and provide high-quality services to meet and even exceed customers' requirements. We guarantee our new product rubber oil hose will bring you a lot of benefits. We are always standby to receive your inquiry. rubber oil hose PASSIONHOSE is a comprehensive manufacturer and supplier of high-quality products and one-stop service. We will, as always, actively provide prompt services such. For more details about our rubber oil hose and other products, just let us know.rubber oil hose It meets the product design requirements and relevant national standards, and has passed the strict quality inspection of the national authority. The quality is reliable and guaranteed, so you can buy and use it with confidence.


Product Features
---Why choose fuel injection hose---

Fuel Injection Hose Features
  • ◪ Exceptionally flexible for easy routing.

  • ◪ Low Permeation Rate:

    (with an average fuel permeation rate of 0.65g/m2/day~13g/m2/day).

  • ◪ High Temperature Resistance:



    (temperature range -34℃ to 135℃; Intermittent use at +150℃).

  • ◪ Excellent aging resistance.



  •



Product Description
---structure and specification---
Description
  • Structure:

  • Barrier: FKM Rubber, low permeation resistance, chemical resistance.

  • Inner Tube: synthetic rubber with excellent permeation resistance.

  • Reinforcement: Aramid Yarn, provides exceptional dimensional stability in high-temp.

  • Outer tube: synthetic rubber with excellent heat resisatnce, aging resistance and ozone resistance.

  • ContinuousTemperature Range: -34℃ to 135℃.

  • Intermittent use at: 150℃




Specification
Part No.

I.D.

(inch)

I.D.

 (mm)

Tube Thickness (mm)

O.D.

(mm)

W.P.

(bar)

B.P.

(bar)

B.P.

(psi)

PSJR9-021/8''3.2
2.99.020801160
PSJR9-033/16''5.03.011.020801160
PSJR9-041/4"6.33.212.720801160
PSJR9-055/16"8.03.014.020801160
PSJR9-063/8"9.53.2516.020801160
PSJR9-081/2"12.73.6520.020801160
PSJR9-105/8"16.0
4.024.01040580
PSJR9-123/4"19.05.530.01040580
PSJR9-161"25.05.035.01040580

Product Details
---fuel injection hose in different angles ---

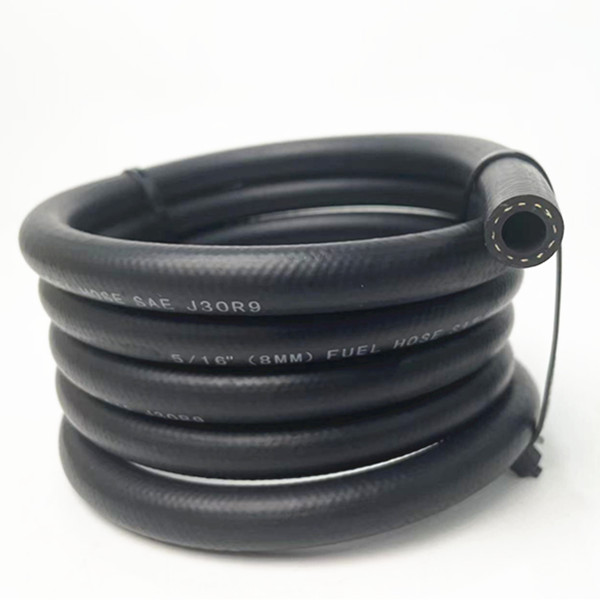

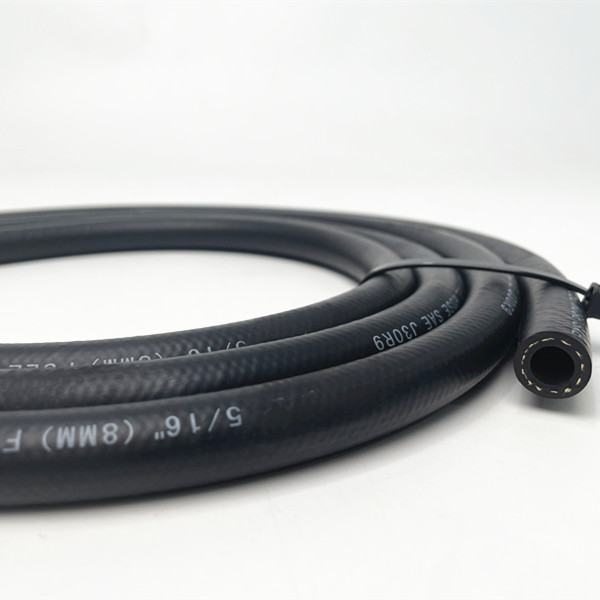

Fuel Injection Hose

FKM layer strengthen hose's permeability resistance largely


Fuel Injection Hose

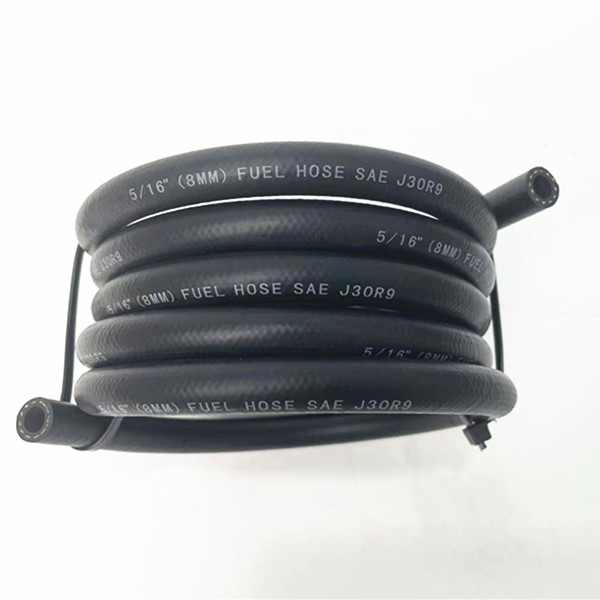

Clear printings with SAE J30R9 standard on the hose


Fuel Injection Hose

Excellent flexibility and kink resistance











Fuel Injection Hose

Continuous temperature range:

-34℃ to 135℃.



Fuel Injection Hose

Excellent ozone resistance




Fuel Injection Hose

Aramid Yarn, provides exceptional dimensional stability in high-temp.





Application
---high temperature, high permeability resistance---

About our product

The SAE J30R9 Fuel Injection Hose is designed specifically for auto and truck fuel injection systems.

It is applicable for gasoline, ethanol extended gasoline, oxidized sour gas, diesel fuel, biodiesel (B5, B10, B20), lubrication oil.

(Sour Gas Compatible, Biodiesel Compatible).





For Car Fuel Injection System

Excellent permeation resistance, high temperature resistance, good ozone resistance.
