A hose manufacturer with over two decades of experience.

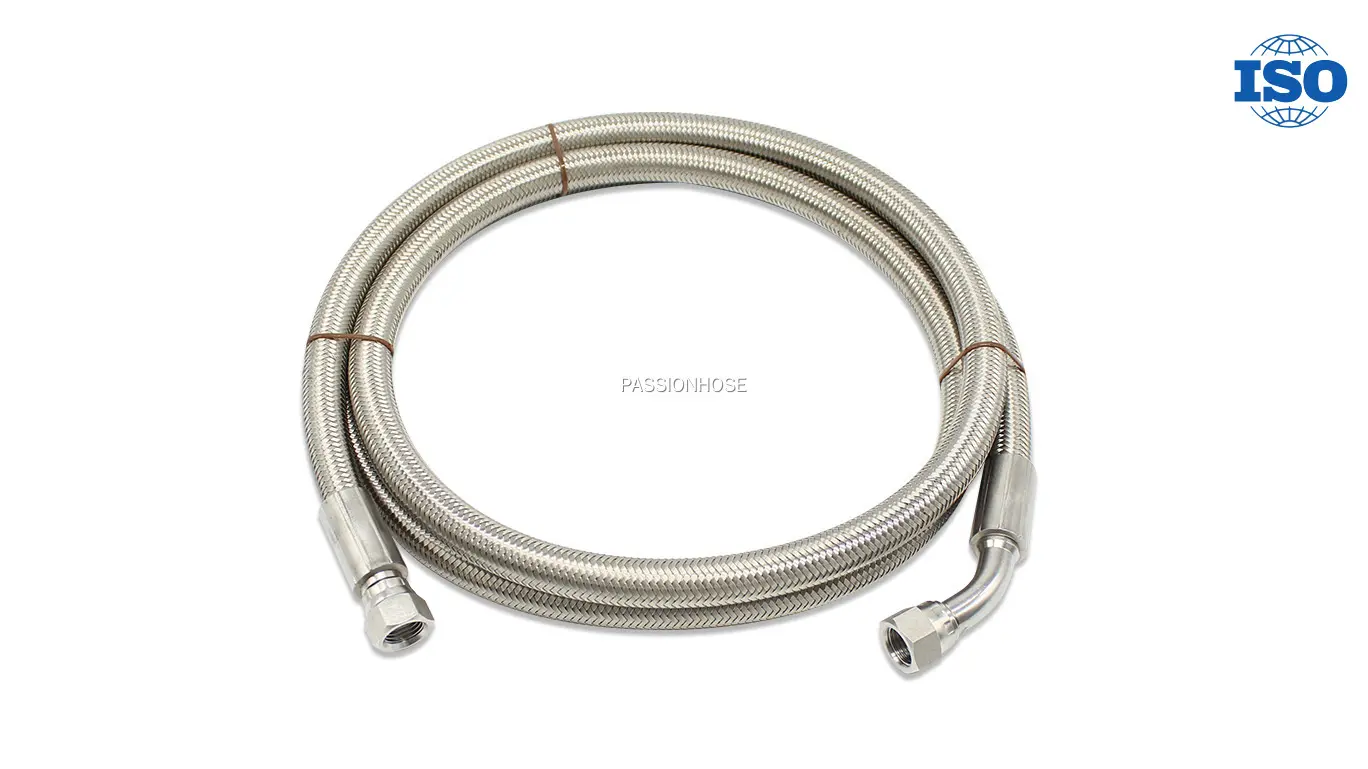

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 1
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 1

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE

rubber hydraulic hose Made of high-quality materials, advanced technology and exquisite craftsmanship, it has the functions of waterproof and shockproof, strong sealing, shock absorption and buffering.
Inquiry

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. rubber hydraulic hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product rubber hydraulic hose and our company by directly contacting us.rubber hydraulic hose Made of high-quality materials, advanced technology and exquisite craftsmanship, it has the functions of waterproof and shockproof, strong sealing, shock absorption and buffering.

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 2
Product Features
---Why choose PTFE---
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 3
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 4

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: corrugated PTFE(The imported F-205 of Japan Daikin PTFE)Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 5
Specification
SerialI.D.(inch)I.D.(mm)Thickness of tube (mm)O.D.(mm)W.P.(bar)B.P.(bar)Min. Bend Radius   (mm)
11/4"6.50.8013.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.3
0.9023.48024550
63/4"19.01.0027.37021563
71"25.41.0033.05015079
81-1/4"32.01.1041.245140125
91-1/2"38.01.4547.943120145
102"50.01.5063.035100180
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 6
Product Details
---various PTFE hose assemblies---
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 7
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 8
PTFE Hose Assembly

straight JIC female hose end in SS304

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 9
PTFE Hose Assembly

2 meters










Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 10
PTFE Hose Assembly

brass fittings with o-rings

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 11
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 12
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 13

Application
---high temperature, resist chemical---

About our product

Stainless steel braided PTFE hoses are widely used in various industries for their unique properties and performance capabilities.

Here are some of the common applications:

1. Chemical industry: Stainless steel braided PTFE hose is used to transfer a wide range of chemicals, acids, and corrosive fluids, including solvents, fuels, and hydraulic fluids.

2. Food and beverage industry: These hoses are used in food and beverage processing plants to transfer food-grade fluids, such as milk, juice, beer, and wine, as well as cleaning solutions.

3. Pharmaceutical industry: Stainless steel braided PTFE hose is used in the pharmaceutical industry to transfer various chemicals and fluids, including solvents, acids, and cleaning solutions.

4. Automotive industry: These hoses are used in the automotive industry for fuel lines, oil lines, and brake lines due to their excellent resistance to high temperatures and corrosive fluids.

5. Aerospace industry: Stainless steel braided PTFE hose is used in the aerospace industry for various applications, including hydraulic lines, fuel lines, and cooling systems, due to their ability to withstand extreme temperatures and pressure conditions.


stainless steel braided PTFE hose is used in a wide range of applications where there is a need to transfer corrosive fluids, chemicals, and high-temperature fluids, especially in industries such as chemical, food and beverage, pharmaceutical, automotive, and aerospace.



Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 14


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 15




Hello, world!
simple hero unit, a simple jumbotron-style con

Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 16




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
Custom rubber hydraulic hose manufacturing Manufacturer | PASSIONHOSE 17




Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
