After years of solid and rapid development, PASSIONHOSE has grown into one of the most professional and influential enterprises in China. hydraulic hose prices We promise that we provide every customer with high-quality products including hydraulic hose prices and comprehensive services. If you want to know more details, we are glad to tell you. adopts advanced production technology and exquisite production process to manufacture hydraulic hose prices, and conducts strict quality inspection on hydraulic hose prices before leaving the factory to ensure that hydraulic hose prices delivered to customers are high-quality qualified products.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Impulse over 400,000 times.
◪ Suitable for heavy machinery.
◪ High concentricity.
◪ Solid construction and long service lifetime.
◪ Flexible and light.
Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | Four layers of high tensile steel wire. |
| Outer Cover | Abrasion and ozone-resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 25 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| EN856 4SP | |||||||||
| P06-4SP | 3/8" | 9.5 | 20.8 | 445 | 6675 | 1780 | 26700 | 180 | 650 |
| P08-4SP | 1/2" | 12.7 | 24.0 | 415 | 6225 | 1660 | 24900 | 230 | 920 |
| P10-4SP | 5/8" | 15.9 | 27.2 | 350 | 5250 | 1400 | 21000 | 250 | 1070 |
| P12-4SP | 3/4" | 19.0 | 31.0 | 350 | 5250 | 1400 | 21000 | 300 | 1600 |
| P16-4SP | 1" | 25.4 | 38.7 | 280 | 4200 | 1120 | 16800 | 340 | 1915 |
| P20-4SP | 1 1/4" | 31.8 | 45.5 | 210 | 3150 | 840 | 12600 | 460 | 2100 |
| P24-4SP | 1 1/2" | 38.1 | 52.8 | 185 | 2775 | 740 | 11100 | 560 | 2800 |
| P32-4SP | 2" | 50.8 | 67.8 | 165 | 2475 | 660 | 9900 | 700 | 3700 |
| EN856 4SH | |||||||||
| P12-4SH | 3/4" | 19.0 | 31.0 | 420 | 6300 | 1680 | 25200 | 280 | 1500 |
| P16-4SH | 1" | 25.4 | 38.7 | 380 | 5700 | 1520 | 22800 | 340 | 2065 |
| P20-4SH | 1 1/4" | 31.8 | 45.5 | 350 | 5250 | 1400 | 21000 | 460 | 2425 |
| P24-4SH | 1 1/2" | 38.1 | 52.8 | 290 | 4350 | 1160 | 17400 | 560 | 3235 |
| P32-4SH | 2" | 50.8 | 67.8 | 250 | 3750 | 1000 | 15000 | 700 | 4460 |

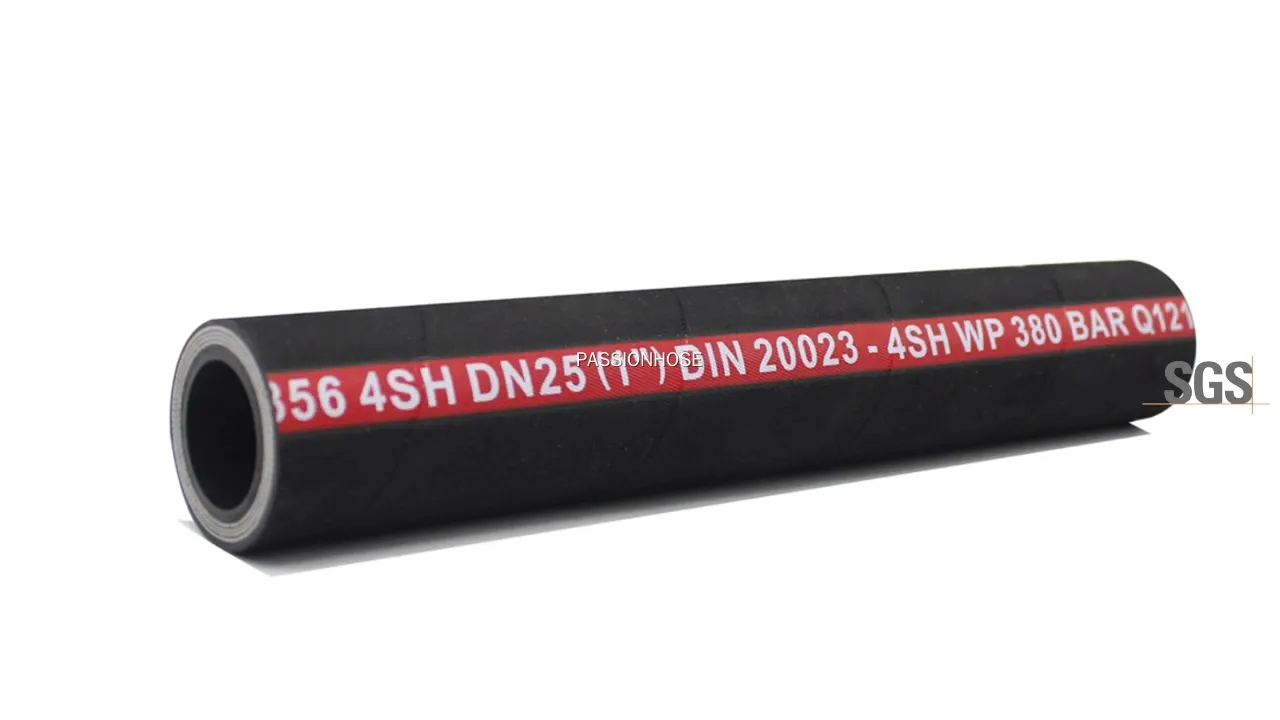

Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Cutting of the Reinforcement
Inside of the crimped hose.
With advanced winding and spiral machines, the steel wire layer is very neat and even. Also with high concentricity.
Straight JIC female hose ends in carbon steel with zinc plated.
BSP female fittings hose ends for construction machinery.
Paishun is one of the top manufacturers of rubber hoses in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
Passion Hose founded in 2007, a professional silicone hose manufacturer, a brand of pipeline hose and accessories R&D, production and sales. Main products: stainless steel shower hose,hydraulic hose, industrial hose, automotivehose, plumbing hose etc., which are widely used in home, hotel, industry and other fields.
