Custom hydraulic hose crimping fittings modern design  Manufacturer | PASSIONHOSE

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. hydraulic hose crimping fittings We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product hydraulic hose crimping fittings or our company. actively introduces advanced manufacturing equipment, and adopts strict production systems for standardized production. The hydraulic hose crimping fittings produced is fine in workmanship, high in quality, long in service life, and wide in application, enjoying a good reputation in the market.



Product Features

---Why Choose PAISHUN Hydraulic Hose Fittings---



PAISHUN Hydraulic Hose Fitting Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•




Product Description

---Struction and Specification---

Description

• Detail


• Standard	Yonghua
  Part Number	03310 for one wire and two wires high pressure rubber hoses
  Material	Carbon Steel 20#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	HOSE BORE DN	HOS BORE DASH	DIMENSION L	DIMENSION D
03310-03	5	03	23	21
03310-04	6	04	30.5	23
03310-05	8	05	30	24
03310-06	10	06	32	26
03310-08	12	08	34	29.1
03310-10	16	10	37	33
03310-12	20	12	42	37.1
03310-14	22	14	45	40.5
03310-16	25	16	51	46.8
03310-20	32	20	59	59
03310-24	40	24	67	67
03310-32	50	32	72	80



Product Details

---More of PAISHUN Hydraulic Hose Fittings---

                00110

PASSIONCO Ferrule for one wire braided hydraulic hoe

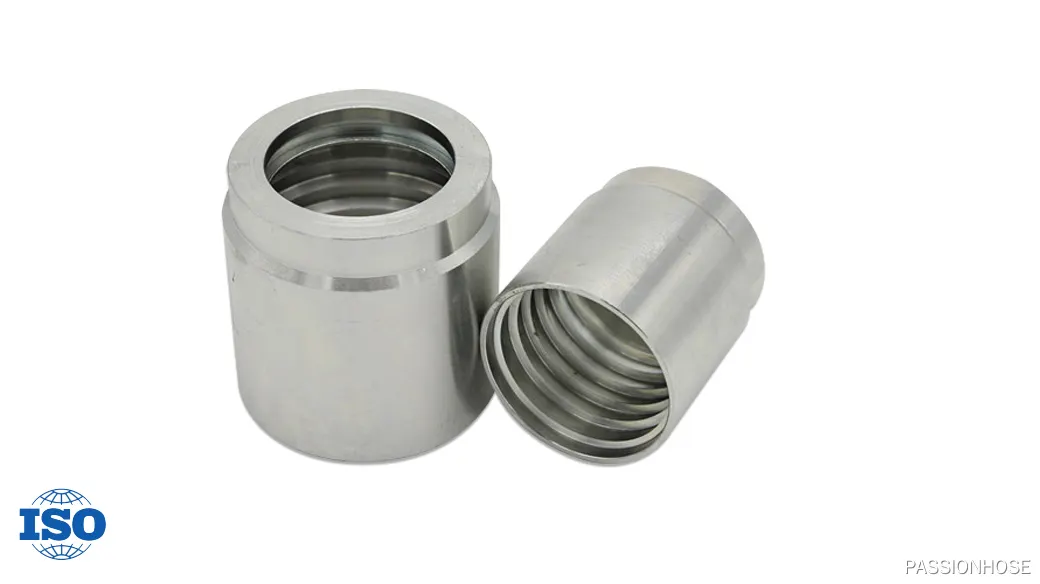

03310

Ferrule for two wire braided hydraulic hose



20511-T

Metric Female 24 degree Cone with o-ring. H.T.



14211T

ORFS Flat Female



26711

JIC female 37 degree cone seat



15611W

One piece type NPT Male





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fittings

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
