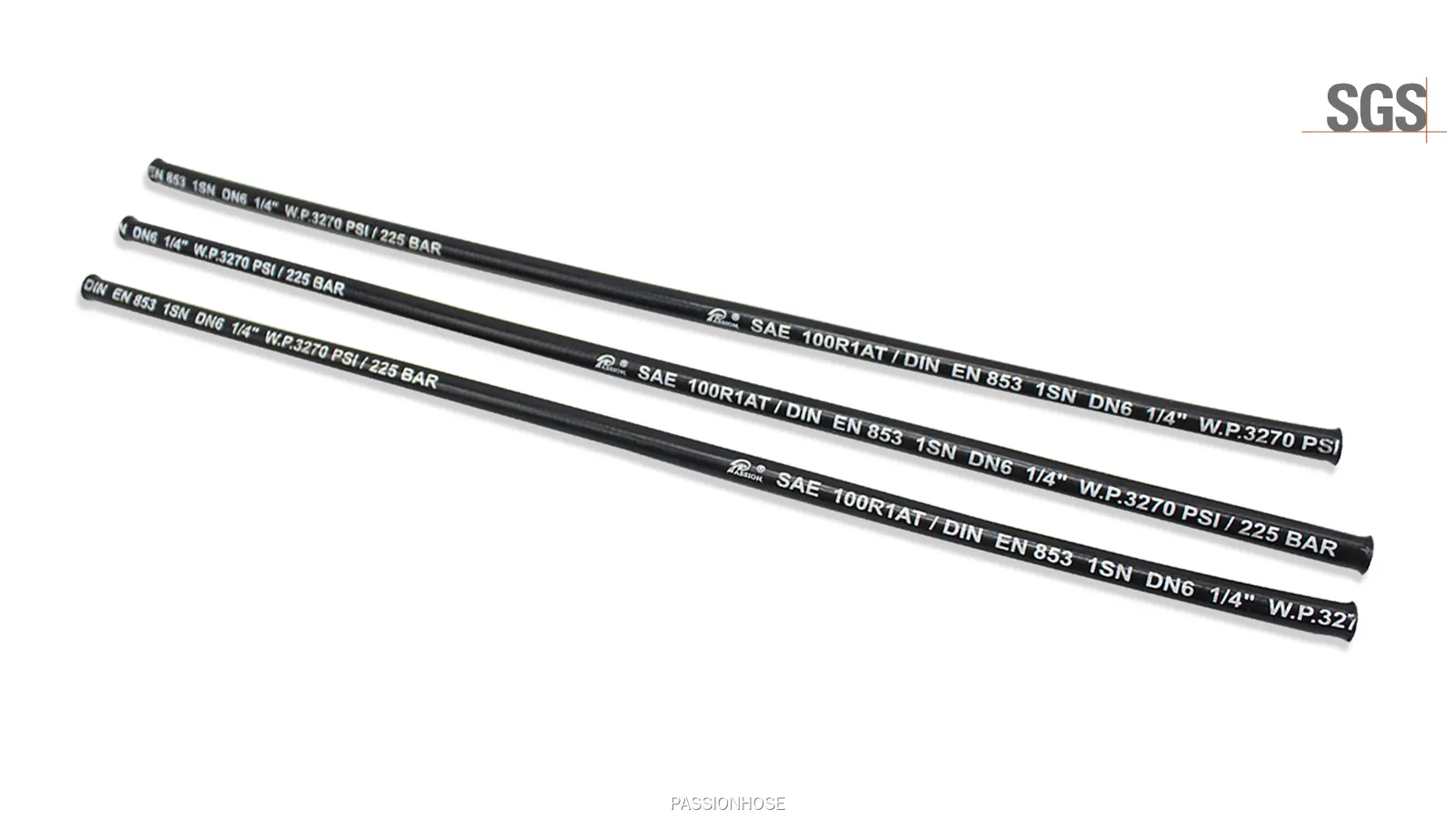

After years of solid and rapid development, PASSIONHOSE has grown into one of the most professional and influential enterprises in China. hydraulic braided rubber hose If you are interested in our new product hydraulic braided rubber hose and others, welcome you to contact us.hydraulic braided rubber hose The material is carefully selected, thick, fine workmanship, high quality, good corrosion resistance and durability, flexible and strong, and durable.
◪ Strict quality control. Test the products before shipment with the complete line of test machines.
◪ OEM accepted, and we can print your LOGO and brand name.
◪ Various colors. Hoses can be black, gray, red, etc.
◪ Customized hose accepted.
◪ Free hose sample available.
◪ Solid construction and long service lifetime.
◪ Very flexible and light.
Detail
| Inner Tube | Oil-resistant synthetic rubber. |
| Reinforcement | One braid of high tensile steel wire. |
| Outer Cover | Abrasion and ozone resistant synthetic rubber. |
| Temperature | -40°C to +100°C / -40°F to +212°F (max 120°C/248°F intermittent) |
| Certification | MSHA, CE, ISO 9001 |
| Packing | Poly stripes, reels, pallets, etc. |
| Delivery | About 28 days for a 20' container. |
| Part No. | I.D. (inch) | I.D. (mm) | O.D. (mm) | W.P. (bar) | W.P. (psi) | B.P. (bar) | B.P. (psi) | Min Bend Radius (mm) | Weight (g/m) |
|---|---|---|---|---|---|---|---|---|---|
| P04-1SN | 1/4" | 6.4 | 13.4 | 225 | 3260 | 900 | 13050 | 100 | 220 |
| P05-1SN | 5/16" | 8.0 | 15.2 | 215 | 3115 | 860 | 12470 | 115 | 260 |
| P06-1SN | 3/8" | 9.5 | 17.3 | 180 | 2610 | 720 | 10440 | 125 | 330 |
| P08-1SN | 1/2" | 12.7 | 20.3 | 160 | 2320 | 640 | 9280 | 180 | 410 |
| P10-1SN | 5/8" | 16.0 | 23.7 | 130 | 1885 | 520 | 7540 | 205 | 490 |
| P12-1SN | 3/4" | 19.0 | 28.0 | 105 | 1520 | 420 | 6090 | 240 | 630 |
| P16-1SN | 1" | 32.5 | 36.2 | 88 | 1275 | 352 | 5105 | 300 | 920 |
Paishun hydraulic hoses have very high flexibility.
Printing colors can be red, blue, yellow, green, etc.
Smooth Surface Hose
Besides cloth surface, hydraulic hoses can also be in smooth surface.
With advanced winding and braiding machines, steel wire layer is very neat and even.
Straight JIC female hose ends in carbon steel with zinc plated
Gray hose with quick couplers for high pressure washing.
Paishun is one of the top hydraulic hose manufacturers in East China.
We're specialized in the production and marketing of these products.
Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer
For Construction Machinery
With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.
For Mining and Drilling
For Agricultural Machinery
For Working platforms, Cranes, and Lifting
PAISHUN hose can be used in working platforms, cranes, and lifting.
Customized hoses are available.
For Pressure washer
With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.
Home use and industry use are both available.
