Custom hydraulic adapters soft Manufacturer | PASSIONHOSE

At PASSIONHOSE, technology improvement and innovation are our core advantages. Since established, we have been focusing on developing new products, improving product quality, and serving customers. hydraulic adapters Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product hydraulic adapters and our company by directly contacting us. Strong technical strength, rich production experience, not only advanced production equipment, sophisticated quality inspection equipment, first-class manufacturing technology, but also a group of excellent design, research and development, production, quality inspection teams, produced hydraulic adapters With excellent performance, stable quality and reliable quality, it is deeply loved by customers in the market.



Product Features

---Why Choose PAISHUN Hydraulic Hose Fittings---



PAISHUN Hydraulic Hose Fitting Features

• ◪ No complaint---standard process and excellent service

• ◪ Receive them in a very short time---enough stock

• ◪ Accurate dimensions---automatic CNC machines

• ◪ Receive them without damage---strong packing

• ◪ Free sample available

• ◪ OEM and ODM

• ◪ Supply hydraulic hose fittings, hydraulic hoses and hydraulic hose assemblies

•

•


•




Product Description

---Struction and Specification---

Description

• Detail


• Standard	Yonghua
  Part Number	15611-RW for wire braided hoses
  Material	Carbon Steel 45#
  Surface	Zinc plated with Cr+3
  Testing	Pass at least 120 hours of salt spray test



Specification

Part No.	螺纹 THREAD E	HOSE BORE DN	HOS BORE DASH	DIMENSION A	DIMENSION B	DIMENSION H
15611-02-04RW	1/8"x27 NPTF	6	04	47	23	12
15611-04-04RW	1/4"x18 NPTF	6	04	53	29	14
15611-06-04RW	3/8"x18 NPTF	6	04	55	31	19
15611-04-05RW	1/4"x18 NPTF	8	05	53	29	14
15611-06-05RW	3/8"x18 NPTF	8	05	55	31	19
15611-04-06RW	1/4"x18 NPTF	10	06	52	29	14
15611-06-06RW	3/8"x18 NPTF	10	06	54	31	19
15611-08-06RW	1/2"x14 NPTF	10	06	55	32	22
15611-06-08RW	3/8"x18 NPTF	12	08	55	32	19
15611-08-08RW	1/2"x14 NPTF	12	08	62	38	22
15611-08-10RW	1/2"x14 NPTF	16	10	63	38	22
15611-12-10RW	3/4"x14 NPTF	16	10	59	34	27
15611-12-12RW	3/4"x14 NPTF	20	12	60	34	27
15611-16-16RW	1"x11-1/2 NPTF	25	16	75	45	36
15611-20-20RW	1-1/4"x11-1/2	32	20	104	57	46
15611-24-24RW	1-1/2"x11-1/2	40	24	89	51	50
15611-32-32RW	2"x11-1/2	50	32	104	55	65



Product Details

---More of PAISHUN Hydraulic Hose Fittings---

                00110

PASSIONCO Ferrule for one wire braided hydraulic hoe



03310

Ferrule for two wire braided hydraulic hose



20511-T

Metric Female 24 degree Cone with o-ring. H.T.



14211T

ORFS Flat Female



26711

JIC female 37 degree cone seat

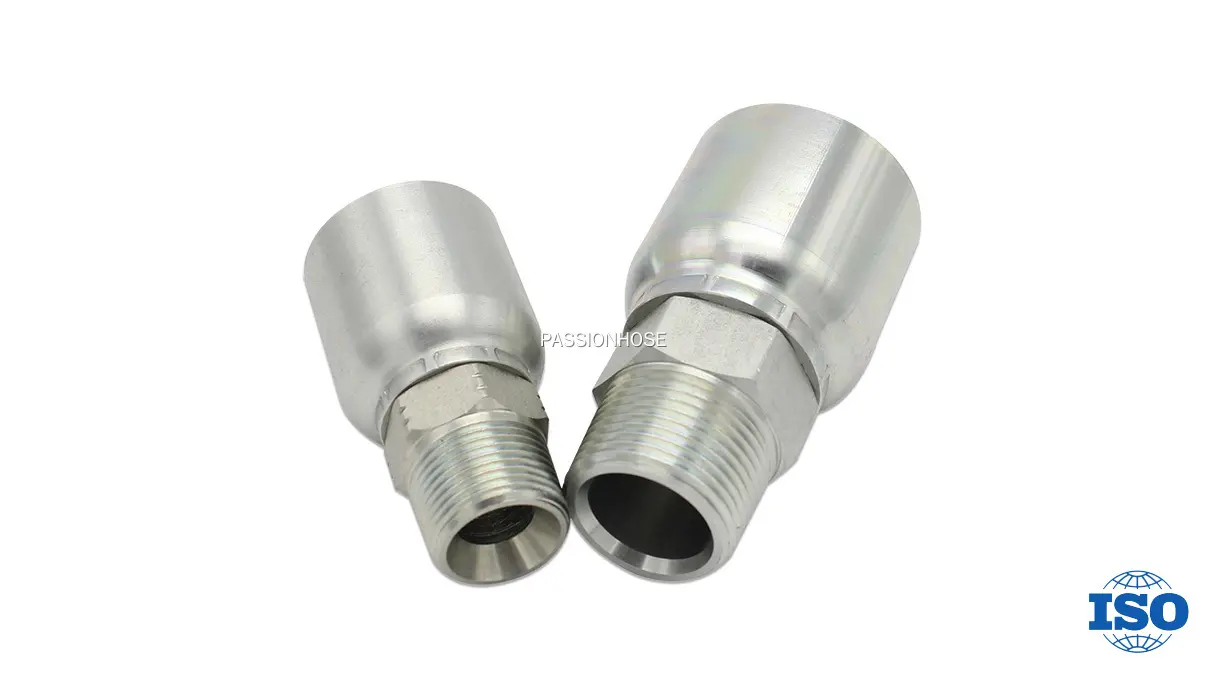

15611W

One piece type NPT Male





Application

---Consttruction, Lifting, Pressure Washing---


About our hydraulic hose fittings

Paishun products are particularly suitable for the following areas of applications:
* Heavy equipment and earth-moving machinery in construction sites
* Mining and drilling
* Agricultural machines and equipment
* Working platforms, cranes, and lifting
* Pressure washer



For Construction Machinery

With high impulse performance, PAISHUN hydraulic hose can be widely used on construction machinery such as excavators, bulldozers, earthmovers, etc.

For Mining and Drilling

With the MSHA certificate and extraordinary anti-flame resistance performance, PAISHUN hydraulic hose can be used on mining industry.

t, a simple jumbotron-style con



For Agricultural Machinery

PAISHUN hydraulic hose can also be used in agricultural machinery.

For Working platforms, Cranes, and Lifting

PAISHUN hose can be used in working platforms, cranes, and lifting.

Customized hoses are available.





For Pressure washer

With high flexibility, PAISHUN hydraulic hose can be also used on pressure washers, and jet washers for the washing sites.

Home use and industry use are both available.
