Custom high pressure stainless steel braided ptfe hose new arrival Manufacturer | PASSIONHOSE
keeps up with the development trend of the industry, adopts the industry's cutting-edge technology and technology in product production, and continuously improves and innovates high pressure stainless steel braided ptfe hose, so that the produced high pressure stainless steel braided ptfe hose has obvious improvements in quality, service life, performance, etc. The improvement, stable quality, reliable quality, you can rest assured to buy.
Relying on advanced technology, excellent production capabilities, and perfect service, PASSIONHOSE takes the lead in the industry now and spreads our PASSIONHOSE all over the world. Together with our products, our services are also supplied to be the highest-level. high pressure stainless steel braided ptfe hose We promise that we provide every customer with high-quality products including high pressure stainless steel braided ptfe hose and comprehensive services. If you want to know more details, we are glad to tell you. is a manufacturer of plastic waterstops with many years of production experience. We pay close attention to quality, strictly control management, and comprehensively control product quality from raw material procurement, production and processing, factory inspection, packaging and transportation, etc., to ensure the production The high pressure stainless steel braided ptfe hose are all qualified products in line with national standards.

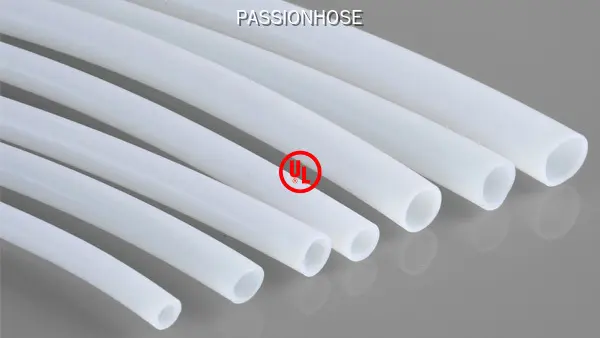

Smooth Bore PTFE Tube
Core Properties: PTFE is resistant to low & high temperature, corrosion, aging with non-sticky surface.
Working Temperature: -65℃ ~ + 260℃ （-80F ~ 500F）
Transfer Medium: Strong acid, strong alkali, petroleum, diesel, gasoline, chemical, food, medicine, glue & other fluids.
Tube Color: Red, black, blue, natural; white, translucent, etc.
Packing Type: Roll, reel, carton, pallet, wooden case, etc.
Conductivity: 10^6
Certification: ISO9001:2015, TS16949:2016, Reach, RoHS, FDA, etc.
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P. | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1x3 | 1 | 0.039 | 3 | 0.118 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 2 | 2x4 | 2 | 0.079 | 4 | 0.157 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 3 | 2.5x4 | 2.5 | 0.098 | 4 | 0.157 | 0.75 | 0.030 | 148 | 10.2 | 444 | 30.6 |
| 4 | 3x4 | 3 | 0.118 | 4 | 0.157 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 5 | 3x5 | 3 | 0.118 | 5 | 0.197 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 6 | 3.2x5.2 | 3.2 | 0.126 | 5.2 | 0.205 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 7 | 3.5x5.5 | 3.5 | 0.138 | 5.5 | 0.217 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 8 | 4x6 | 4 | 0.157 | 6 | 0.236 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 9 | 4.5x5.5 | 4.5 | 0.177 | 5.5 | 0.217 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 10 | 5x7 | 5 | 0.197 | 7 | 0.276 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 11 | 6x8 | 6 | 0.236 | 8 | 0.315 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 12 | 6x9 | 6 | 0.236 | 9 | 0.354 | 1.5 | 0.059 | 148 | 10.2 | 444 | 30.6 |
| 13 | 6.5x7.5 | 6.5 | 0.256 | 7.5 | 0.295 | 0.5 | 0.020 | 148 | 10.2 | 444 | 30.6 |
| 14 | 8x10 | 8 | 0.315 | 10 | 0.394 | 1 | 0.039 | 148 | 10.2 | 444 | 30.6 |
| 15 | 10x12 | 10 | 0.394 | 12 | 0.472 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 16 | 10x12.5 | 10 | 0.394 | 12.5 | 0.492 | 1.25 | 0.049 | 118 | 8.16 | 370 | 25.5 |
| 17 | 12x14 | 12 | 0.472 | 14 | 0.551 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 18 | 13x15 | 13 | 0.512 | 15 | 0.591 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 19 | 14x16 | 14 | 0.551 | 16 | 0.630 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 20 | 16x18 | 16 | 0.630 | 18 | 0.709 | 1 | 0.039 | 118 | 8.16 | 370 | 25.5 |
| 21 | 16x19 | 16 | 0.630 | 19 | 0.748 | 1.5 | 0.059 | 118 | 8.16 | 370 | 25.5 |
| 22 | 19x22 | 19 | 0.748 | 22 | 0.866 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 23 | 20x24 | 20 | 0.787 | 24 | 0.945 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 24 | 25x28 | 25 | 0.984 | 28 | 1.102 | 1.5 | 0.059 | 74 | 5.1 | 296 | 20.4 |
| 25 | 25x29 | 25 | 0.984 | 29 | 1.142 | 2 | 0.079 | 74 | 5.1 | 296 | 20.4 |
| 26 | 32x36 | 32 | 1.260 | 36 | 1.417 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 27 | 38x42 | 38 | 1.496 | 42 | 1.654 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| 28 | 48x52 | 48 | 1.969 | 52 | 2.126 | 2 | 0.079 | 29 | 2 | 145 | 10 |
| No. | Spec. | I.D. | O.D. | Thickness | W.P. | B.P | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | psi | bar | psi | bar | ||
| 1 | 1/16" x 1/8" | 1.58 | 1/16" | 3.17 | 1/8" | 0.8 | 0.031 | 218 | 15 | 725 | 50 |
| 2 | 1/8"x 3/16" | 3.17 | 1/8" | 4.76 | 3/16" | 0.8 | 0.031 | 174 | 12 | 638 | 44 |
| 3 | 3/16" x 1/4" | 4.76 | 3/16" | 6.35 | 1/4" | 0.8 | 0.031 | 131 | 9 | 464 | 32 |
| 4 | 1/4" x 5/16" | 6.35 | 1/4" | 7.93 | 5/16" | 0.8 | 0.031 | 102 | 7 | 363 | 25 |
| 5 | 1/4" x 3/8" | 6.35 | 1/4" | 9.52 | 3/8" | 1.5 | 0.059 | 174 | 12 | 638 | 44 |
| 6 | 5/16" x 3/8" | 7.93 | 5/16" | 9.52 | 3/8" | 0.8 | 0.031 | 87 | 6 | 319 | 22 |
| 7 | 3/8" x 1/2" | 9.6 | 3/8" | 12.7 | 1/2" | 1.5 | 0.059 | 131 | 9 | 464 | 32 |
| 8 | 1/2" x 5/8" | 12.7 | 1/2" | 15.87 | 5/8" | 1.5 | 0.059 | 102 | 7 | 363 | 25 |
| 9 | 5/8" x 3/4" | 15.87 | 5/8" | 19.05 | 3/4" | 1.5 | 0.059 | 87 | 6 | 319 | 22 |
Smooth Bore PTFE
Conductive Smooth Bore PTFE
Corrugated Bore PTFE
