Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE

has established a strict storage management system to ensure the excellent quality of flexible ss304 braided convoluted tubing ptfe hose from the source. In addition, we have also established a scientific and perfect quality management system to ensure that flexible ss304 braided convoluted tubing ptfe hose produced are in line with national quality inspection standards of high-quality products.

Construction:
Inner tube: smooth bore PTFE
Outer tube: stainless steel 304 wire braid

Temperature range:

-65℃ to +260℃

Feature:

High temperature hose
Excellent chemical compatibility
Resists moisture
Low friction minimizes pressure drops and deposits

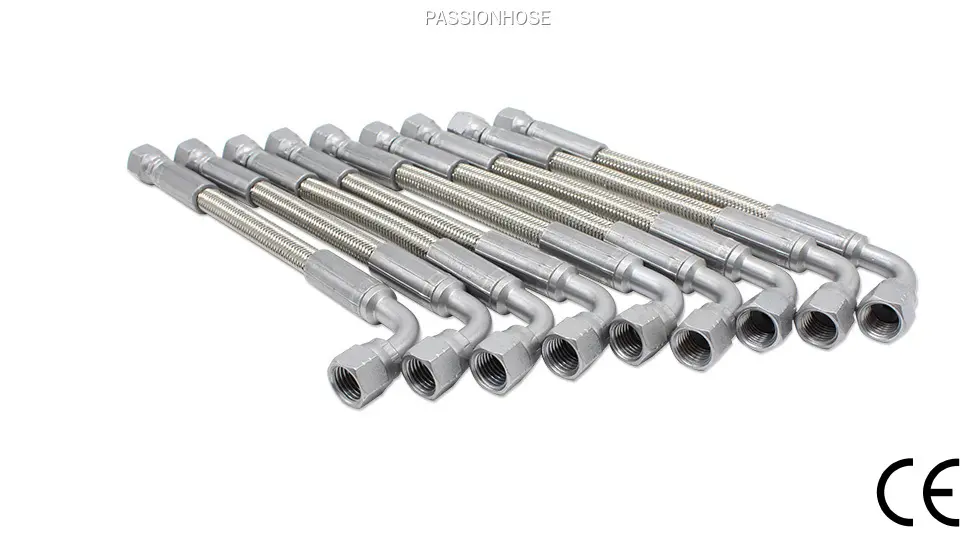

PTFE Hose Assembly

Ferrule: 00TF0-04

Crimping Fitting: 26711-04-04, 26791-04-04
Material: Carbon Steel with zinc-nickel plated

Inquiry

Over the years, PASSIONHOSE has been offering customers high-quality products and efficient after-sales services with the aim of bringing unlimited benefits for them. flexible ss304 braided convoluted tubing ptfe hose We promise that we provide every customer with high-quality products including flexible ss304 braided convoluted tubing ptfe hose and comprehensive services. If you want to know more details, we are glad to tell you. attaches great importance to product quality, not only has established a strict production management system and a scientific quality inspection system, but also arranges professional quality inspectors to conduct strict factory inspections on products to ensure that flexible ss304 braided convoluted tubing ptfe hose entering the market has excellent performance and reliable quality qualified products.

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 2

Product Features

---Why choose PTFE---

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 3

PTFE Features

◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.
◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
◪ Excellent weather resistance, long service life, no brittle fracture and no aging.
◪ With a very low friction coefficient. non-flammable.
◪ With a very low evaporate transpiration rate, cold liquid is not volatile.
◪ With excellent electrical characteristics.
◪ Excellent mechanical properties, shock resistance and flexibility.

Product Description

---struction and specification---

Description

Inner tube:
smooth PTFE（The imported F-205 of Japan Daikin PTFE）

Outer tube:

stainless steel 304 wire braid （SS304 with diameter of 0.2mm and 0.25mm
Temperature:

Continuous temperature range: -65℃ to +260℃

Temporary temperature range: -70℃ to +300℃

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 5

Specification
Serial	I.D.(inch)	I.D.(mm)	Thickness of tube (mm)	O.D.(mm)	W.P.(bar)	B.P.(bar)	Min. Bend Radius (mm)
1	1/8"	3.5	1.00	6.7	250	1000	16
2	3/16"	4.8	0.85	7.6	205	820	20
3	1/4"	6.4	0.85	9.4	187	750	27
4	5/16"	8.0	0.85	11.1	163	650	27
5	3/8"	10.0	0.85	13.1	130	520	33
6	1/2"	12.7	1.00	16.2	113	450	66
7	5/8"	16.0	1.00	19.4	80	320	150
8	3/4"	19.0	1.20	23.0	70	280	226
9	7/8"	22.2	1.20	26.2	60	240	245
10	1"	25.4	1.50	29.8	50	200	300

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 6

Product Details

---various PTFE hose assemblies---

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 7

Smooth Bore PTFE Hose

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 8

Convoluted Bore PTFE Hose

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 9

Conductive PTFE Hose

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 10

Smooth Bore SS Braided PTFE Hose

brass fittings with o-rings

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 11

Smooth Bore SS Braided PTFE Hose

straight JIC female hose ends in carbon steel with zinc-nickel plated

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 12

Smooth Bore SS Braided PTFE Hose

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated

Application

---high temperature, resist chemical---

About PTFE Hose

As a PTFE hose manufacturer, our hoses be used in aviation transportation technology, electronic products, components and insulators, chemical manufacturing, food processing, fluid transportation equipment, and water treatment systems

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 14

Air Compressor

For Air

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 15

Turbocharger

For Oil

Custom flexible ss304 braided convoluted tubing ptfe hose made in china Manufacturer | PASSIONHOSE 16

Iron

For Steam
