Custom ac charging hose manufacturing Manufacturer | PASSIONHOSE

After years of solid and rapid development, PASSIONHOSE has grown into one of the most professional and influential enterprises in China. ac charging hose We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product ac charging hose or our company. actively introduces advanced manufacturing equipment, and adopts strict production systems for standardized production. The ac charging hose produced is fine in workmanship, high in quality, long in service life, and wide in application, enjoying a good reputation in the market.



Product Features



 Features

• ◪ Flexibility

• ◪ High quality

• ◪ Excellent adhesion

• ◪ Red, Blue, and Yellow Colors

• ◪ 800psi working pressure

• ◪ Resistant to Aging and Abrasion

• ◪ Ball valve is brass material

•


•






Product Description

---struction and specification---

Description

• Structure:

• Inner tube: High nitrile-butadiene rubber (NBR)

• Outer tube: Smooth, NBR&PVC blends.

• Reinforcement: Polyester fiber spiral line.

• Operating temperature range: -30℃ to +100℃

• Color: Red & Blue & Yellow

• One end:1/4"SAE female straight connector

• The other end: 5/16" SAE female 45° connector with ball valve

•




Specification

Part Number	I.D.(mm)	I.D.(inch)	Thickness (mm)	O.D.(mm)	W.P.(psi)	B.P.(bar/psi)	Lengths (m)
PRC-1	5	3/16"	3	11	500	2500	100
PRC-2	5	3/16"	3	11	600	3000	100
PRC-3	5	3/16"	3	11	800	4000	100



Product Details

---various refrigerant charging hose---

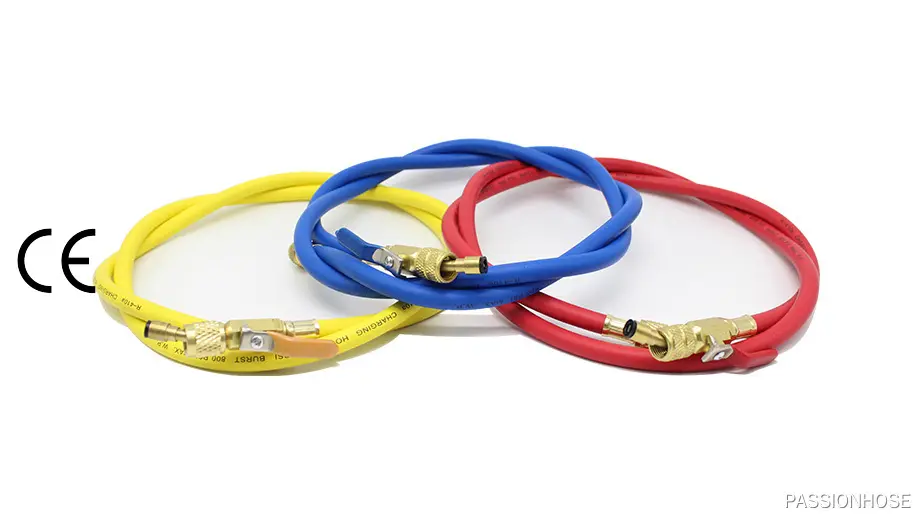

Refrigerant Charging Hose

5mm Red, Blue, Yellow

     Refrigerant Charging Hose

Working Pressure 500, 600, 800psi

Refrigerant Charging Hose Assembly

Refrigerant Charging Hose with 1/4"SAE connector







Refrigerant Charging Hose Assembly

R1234yf quick coupler



Refrigerant Charging Hose Assembly

1/4"SAE bend 45° connector



Refrigerant Charging Hose Assembly

Connector and Ball valve





Application

---high pressure and flexible---


About our product

A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.





For Air Conditioning System

For conveying R12，R22，R134a etc

For Automotive Refrigerant

      Applied widely to auto refrigerant
