Custom ac charging hose aluminum foil Manufacturer | PASSIONHOSE

Always striving toward excellence, PASSIONHOSE has developed to be a market-driven and customer-oriented enterprise. We focus on strengthening the capabilities of scientific research and completing service businesses. We have set up a customer service department to better provide customers with prompt services including order tracking notice. ac charging hose Having devoted a lot to product development and service quality improvement, we have established a high reputation in the markets. We promise to provide every customer throughout the world with prompt and professional service covering the pre-sales, sales, and after-sales services. No matter where you are or what business you are engaged in, we'd love to help you deal with any issue. If you want to know more details about our new product ac charging hose or our company, feel free to contact us.ac charging hose Selected high-quality PVC material, manufactured by advanced technology and process, has good anti-corrosion and aging resistance, good water-stop performance, and can be applied to tunnels, culverts, diversion aqueducts, dams, liquid storage structures, underground facilities, etc. .



Product Features



 Features

• ◪ Flexibility

• ◪ High quality

• ◪ Excellent adhesion

• ◪ Red, Blue, and Yellow Colors

• ◪ 800psi working pressure

• ◪ Resistant to Aging and Abrasion

• ◪ Ball valve is brass material

•


•






Product Description

---struction and specification---

Description

• Structure:

• Inner tube: High nitrile-butadiene rubber (NBR)

• Outer tube: Smooth, NBR&PVC blends.

• Reinforcement: Polyester fiber spiral line.

• Operating temperature range: -30℃ to +100℃

• Color: Red & Blue & Yellow

• One end:1/4"SAE female straight connector

• The other end: 5/16" SAE female 45° connector with ball valve

•




Specification

Part Number	I.D.(mm)	I.D.(inch)	Thickness (mm)	O.D.(mm)	W.P.(psi)	B.P.(bar/psi)	Lengths (m)
PRC-1	5	3/16"	3	11	500	2500	100
PRC-2	5	3/16"	3	11	600	3000	100
PRC-3	5	3/16"	3	11	800	4000	100



Product Details

---various refrigerant charging hose---

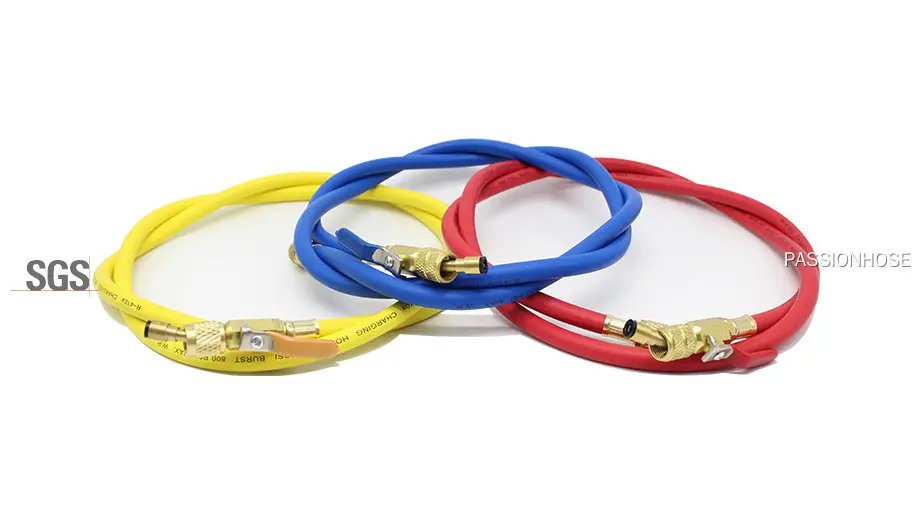

Refrigerant Charging Hose

5mm Red, Blue, Yellow

     Refrigerant Charging Hose

Working Pressure 500, 600, 800psi

Refrigerant Charging Hose Assembly

Refrigerant Charging Hose with 1/4"SAE connector







Refrigerant Charging Hose Assembly

R1234yf quick coupler



Refrigerant Charging Hose Assembly

1/4"SAE bend 45° connector



Refrigerant Charging Hose Assembly

Connector and Ball valve





Application

---high pressure and flexible---


About our product

A flexible hose for conveying refrigerants such as R12, R22, R502, R32, R1234YF, R410a, and R134a; applied widely to the auto refrigerant, air conditioning, industrial refrigerant, etc; both the inner rubber layer and protective layer are of high-level oil resistance of grade RMA-A and antiseepage.





For Air Conditioning System

For conveying R12，R22，R134a etc

For Automotive Refrigerant

      Applied widely to auto refrigerant
