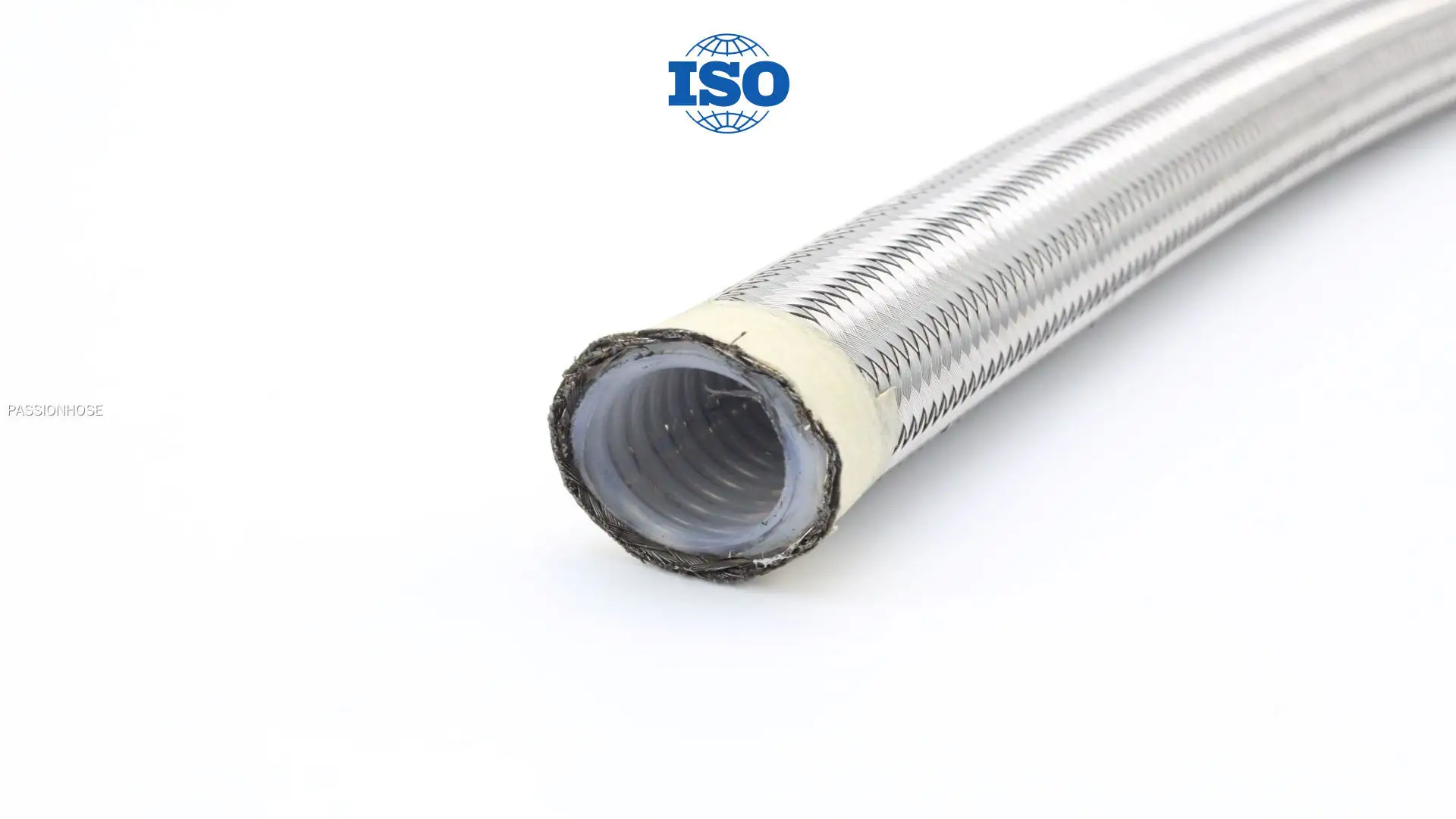

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 1
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 2
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 3
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 4
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 1
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 2
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 3
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 4

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE

is a powerful manufacturer specializing in the production of plastic waterstops. It has advanced management models, strong independent research and development capabilities, professional production and quality inspection equipment, and an excellent elite team. 12183] provided strong support.
Inquiry

Guided by scientific and technological innovation, PASSIONHOSE always keeps outward-oriented and sticks to the positive development on the basis of technological innovation. high pressure stainless steel braided ptfe hose Today, PASSIONHOSE ranks the top as a professional and experienced supplier in the industry. We can design, develop, manufacture, and sell different series of products on our own combining the efforts and wisdom of all our staff. Also, we are responsible for offering a wide range of services for customers including technical support and prompt Q&A services. You may discover more about our new product high pressure stainless steel braided ptfe hose and our company by directly contacting us. has established a strict storage management system to ensure the excellent quality of high pressure stainless steel braided ptfe hose from the source. In addition, we have also established a scientific and perfect quality management system to ensure that high pressure stainless steel braided ptfe hose produced are in line with national quality inspection standards of high-quality products.

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 5
Product Features
---Why choose PTFE---
                               Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 6
PTFE Features
  • ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

  • ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

  • ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

  • ◪ With a very low friction coefficient. non-flammable.

  • ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

  • ◪ With excellent electrical characteristics.

  • ◪ Excellent mechanical properties, shock resistance and flexibility.




Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 7

Product Description
---struction and specification---
Description
  • Structure:

  • Inner tube: smooth PTFE(The imported F-205 of Japan Daikin PTFE)

  • Outer tube: stainless steel 304 wire braid (SS304 with diameter of 0.2mm and 0.25mm

  • Temperature:

  • Continuous temperature range: -65℃ to +260℃

  • Temporary temperature range: -70℃ to +300℃


Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 8
Specification
Part No.

I.D.

(inch)

I.D.

 (mm)

Tube Thickness (mm)

O.D.

(mm)

W.P.

(bar)

B.P.

(bar)

Min.

Bend Radius

(mm)

11/4"6.50.813.115040020
25/16"8.00.6513.613036525
33/8"10.00.6515.512535033
41/2"13.00.8518.911033042
55/8"16.0
0.9023.48024550
63/4"19.01.027.37021563
71"25.01.033.05015079
81-14''
32.01.141.245140125
91-1/2''38.0
1.4547.943120145
102''50.01.5
63.035100180
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 9
Product Details
---various PTFE hose assemblies---
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 10
PTFE Hose Assembly

45 deg. JIC female hose end in SS304

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 11
PTFE Hose Assembly

straight JIC female hose end in SS304

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 12
PTFE Hose Assembly

2 meters










Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 13
PTFE Hose Assembly

brass fittings with o-rings

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 14
PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 15
PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated



Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 16

Application
---high temperature, resist chemical---

About PTFE Hose

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.


Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 17


For Air System

Convey high temperature and high-pressure air


For Fuel Pump

Covey high pressure and low pressure fuel
Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 18




Hello, world!
simple hero unit, a simple jumbotron-style con

Cost-effective high pressure stainless steel braided ptfe hose all sizes | PASSIONHOSE 19




For Oil Line

Covey fuel for oil line in vehicle




For Brake System

Covey fuel for brake system in vehicle
