anti static convoluted ptfe hose at Wholesale Prices | PASSIONHOSE

With strong R&D strength and production capabilities, PASSIONHOSE now has become a professional manufacturer and reliable supplier in the industry. All our products including anti static convoluted ptfe hose are manufactured based on the strict quality management system and international standards. anti static convoluted ptfe hose We will do our best to serve customers throughout the whole process from product design, R&D, to delivery. Welcome to contact us for further information about our new product anti static convoluted ptfe hose or our company.anti static convoluted ptfe hose It meets the product design requirements and relevant national standards, and has passed the strict quality inspection of the national authority. The quality is reliable and guaranteed, so you can buy and use it with confidence.



Product Features

---Why choose PTFE---



PTFE Features

• ◪ Resistant to strong acid and alkali, resistant to various corrosive chemicals.

• ◪ Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

• ◪ Excellent weather resistance, long service life, no brittle fracture and no aging.

• ◪ With a very low friction coefficient. non-flammable.

• ◪ With a very low evaporate transpiration rate, cold liquid is not volatile.

• ◪ With excellent electrical characteristics.

• ◪ Excellent mechanical properties, shock resistance and flexibility.






Product Description

---struction and specification---

Description

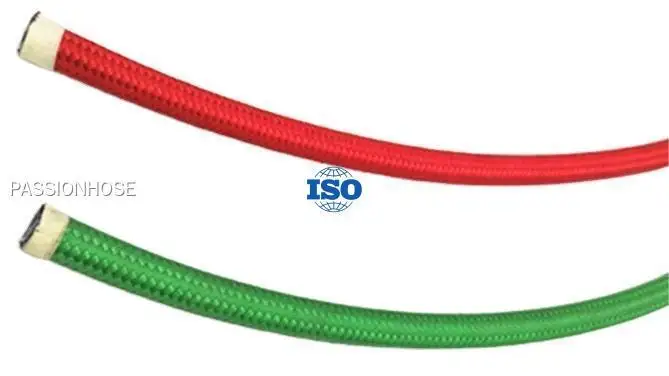

• Structure:

• Inner tube: smooth PTFE（The imported F-205 of Japan  Daikin PTFE）

• Middle Layer: 304 Stainless Steel Wire braided

• Cover: Nylon Braided layer (Red, Black, Green etc)

• Temperature:

• Continuous temperature range: -65℃ to +260℃

• Temporary temperature range: -70℃ to +300℃



Specification

Part No.	I.D. (inch)	I.D.  (mm)	Tube Thickness (mm)	O.D. (mm)	W.P. (bar)	B.P. (bar)	Min.  Bend Radius (mm)
1	1/8''	3.2	1	7.5	320	1080	45
2	3/16''	5.0	0.85	8.7	256	725	75
3	1/4"	6.5	0.85	10.3	210	680	81
4	5/16"	8.0	0.85	12.3	188	620	131
5	3/8"	10.0	0.85	14.2	185	540	182
6	1/2"	13.0	1	17.5	106	360	211
7	5/8"	16.3	1	20.5	80	250	252
6	3/4"	19.0	1.2	24.0	78	223	380
7	1"	25.4	1.5	30.5	40	195	485



Product Details

---various PTFE hose assemblies---



PTFE Hose Assembly

45 deg. JIC female hose end in SS304



PTFE Hose Assembly

straight JIC female hose end in SS304



PTFE Hose Assembly

2 meters









PTFE Hose Assembly

brass fittings with o-rings



PTFE Hose Assembly

straight JIC female hose ends in carbon steel with zinc-nickel plated



PTFE Hose Assembly

90 deg. elbow JIC female hos ends in carbon steel with zinc-nickel plated





Application

---high temperature, resist chemical---


About our product

High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liquids, gases and highly corrosive media with alternating hot and cold heat, it has better performance and longevity than other hoses.





For Air System

Convey high temperature and high-pressure air

For Fuel Pump

Covey high pressure and low pressure fuel





Hello, world!

simple hero unit, a simple jumbotron-style con



For Oil Line

Covey fuel for oil line in vehicle

For Brake System

Covey fuel for brake system in vehicle
