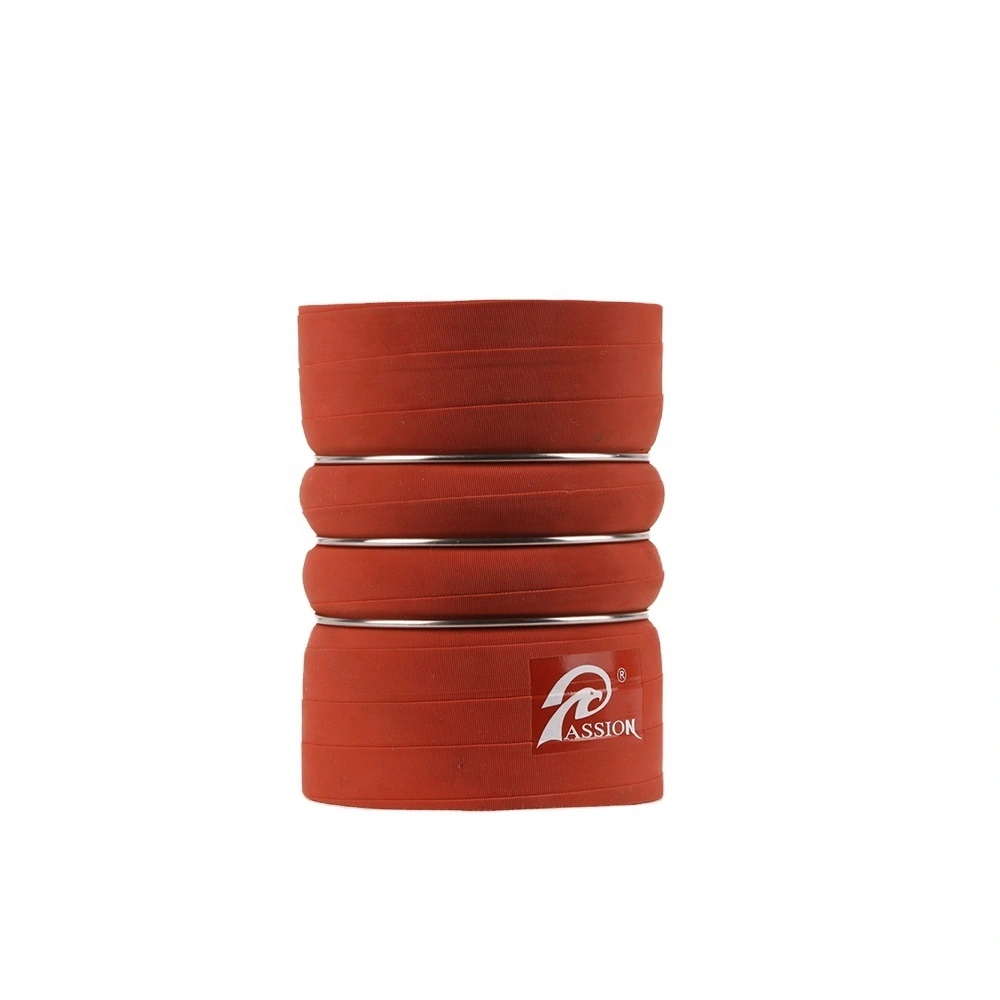

Paishun - High Performance Silicone CAC Intercooler Hose for Turbo Straight Hump Hose
High Performance Silicone CAC Intercooler Hose for Turbo with good performance and reliable quality are created by conforming to the development trend of the industry, integrating internal superior resources, and adopting the industry’s cutting-edge manufacturing technology and production process.Therefore,It has been proved that the product can be applied to Rubber Hoses.
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Having invested a great deal of funds to technology research and product development,Hangzhou Paishun Rubber & Plastic Co., Ltd has successfully worked out High Performance Silicone CAC Intercooler Hose for Turbo. It is delicately designed to comply with the industry standard. Hangzhou Paishun Rubber & Plastic Co., Ltd relentlessly strive for innovations and changes, hoping to lead the industry development and improve our products and services in our unique way. We are committed to being one of the best enterprises in the market.
Place of Origin:
Zhejiang, China
Brand Name:
PAISHUN
Model Number:
Silicone Intercooler Hose
Intercooler Hose Color:
Red, blue, black
Profile:
Cylindrical
Intercooler Hose Thinkness:
4 ~ 6mm
Intercooler Hose Length:
100mm, 120mm...
Temperature:
-40℃ ~ +250℃
Intercooler Hose Reinforcement:
Polyester or Aramid Fiber (Nomex)
Intercooler Layer of reinforcement:
3~ 5 layers
Material:
Silicone Rubber
Shape:
Straight Hump
Intercooler Hose ID:
45mm, 51mm, 60mm, 63mm, 102mm...
Product Description
Product Item
High Temperature Silicone CAC Intercooler Hose for Turbo
Material
Silicone rubber + Fabric reinforcement
Temperature range
-40 ~ +250 C
Pressure
0.5~6 bar
ID
8mm ~ 152mm or as request
Reinforcement
Polyester cloth or Aramid cloth
Thickness
4mm, 4.5mm, 5mm or request
Color
Blue, Red, Black or request
Standard silicone hoses are not suitable for use with pressurized oil or fuel.
We do, however, offer special Fluorosilicone liners for oil resistance.
PASSION FOR HOSE, PASSION FOR YOU

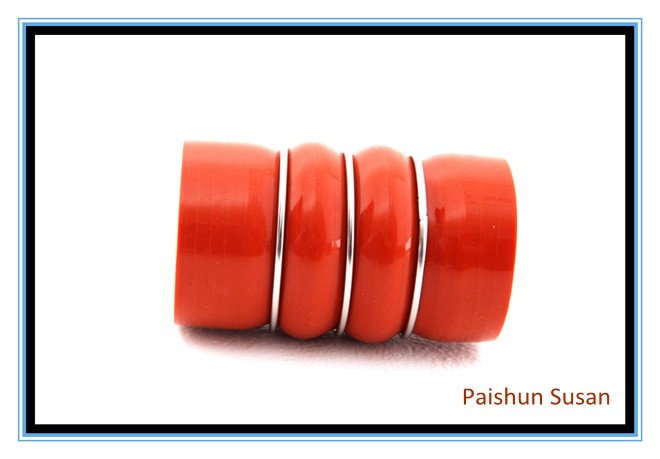

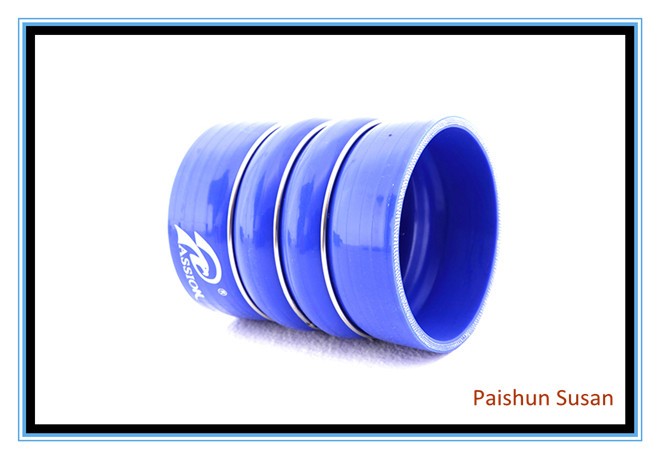

Detailed Images
Bill of Loading Customer's Comments
Why they order silicone hose from us again and again?
Because:
A. MATERIAL
Silicone Rubber material:
Wacker from Germany or KCC from South Korea
Hardness
70 Shore A
Density
1.25
Tensile Strength
9.4Mpa
Tear Strength
17.5KN/M
Elongation
330%
Compression set
30%
Reinforcement material:
Polyester cloth or Aramid cloth
Composition
100% kelvar fabric
Weight per m2
120 g
Tensile Strenght on Warp and Weft
750 N/5CM, 700 N/5CM
Elongation on Warp and Weft
28%, 28%
(note: data may different for different lot of material.)
B. THE THICKNESS, THE SURFACE, THE LOGO
The Thickness
4 layers with 4.5mm wall. 3 layers, 5 layers, 6 layers ok too.
