Paishun - Engine Cooling System High Temp Silicone Hose 90 Degree Elbow Hose Silicone Rubber Hose
By fully understanding the product series and industry dynamics, Hangzhou Paishun Rubber & Plastic Co., Ltd adapts ourselves to the development of products very quickly.Engine Cooling System High Temp Silicone Hose 90 Degree Elbow Hose is our newest product and is expected to lead industry development. Technological innovation is the fundamental reason for Hangzhou Paishun Rubber & Plastic Co., Ltd to achieve sustainable development. Combining all good performance of adopted raw materials, our Engine Cooling System High Temp Silicone Hose 90 Degree Elbow Hose has been proved to be applied to the field(s) of Rubber Hoses.Our staff has tested multiple times that in the applied fields, the product can give out its best performance such as durability and stability.
| Place of Origin: | Zhejiang, China | Brand Name: | PAISHUN |
| Model Number: | Silicon Hose | Processing Service: | Cutting |
| Item: | automotive silicone hose | Material: | Silicone Rubber |
| Color: | Black, blue, Orange, Red, Green etc. | Size: | 4MM~200MM |
| Shape: | Customized Shape | Temperature range: | -40C ~+250C |
| Package: | Cartons | MOQ: | 20pcs |
| Layers: | 2~5plies | Business Type: | Silicone Hose Manufacturer |

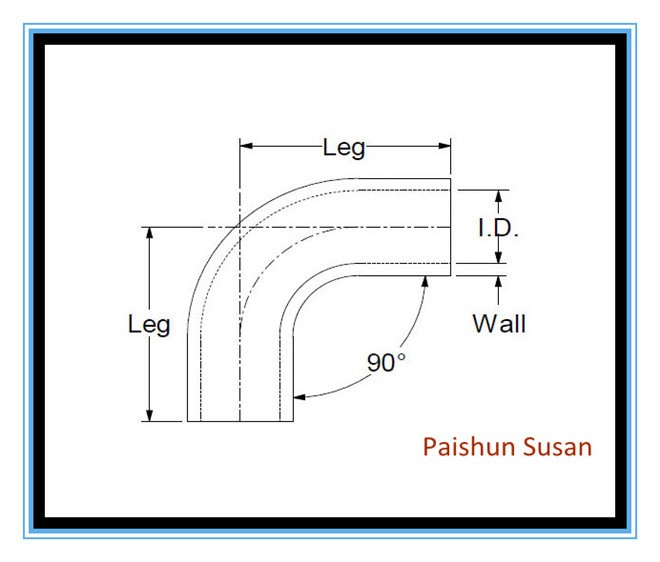

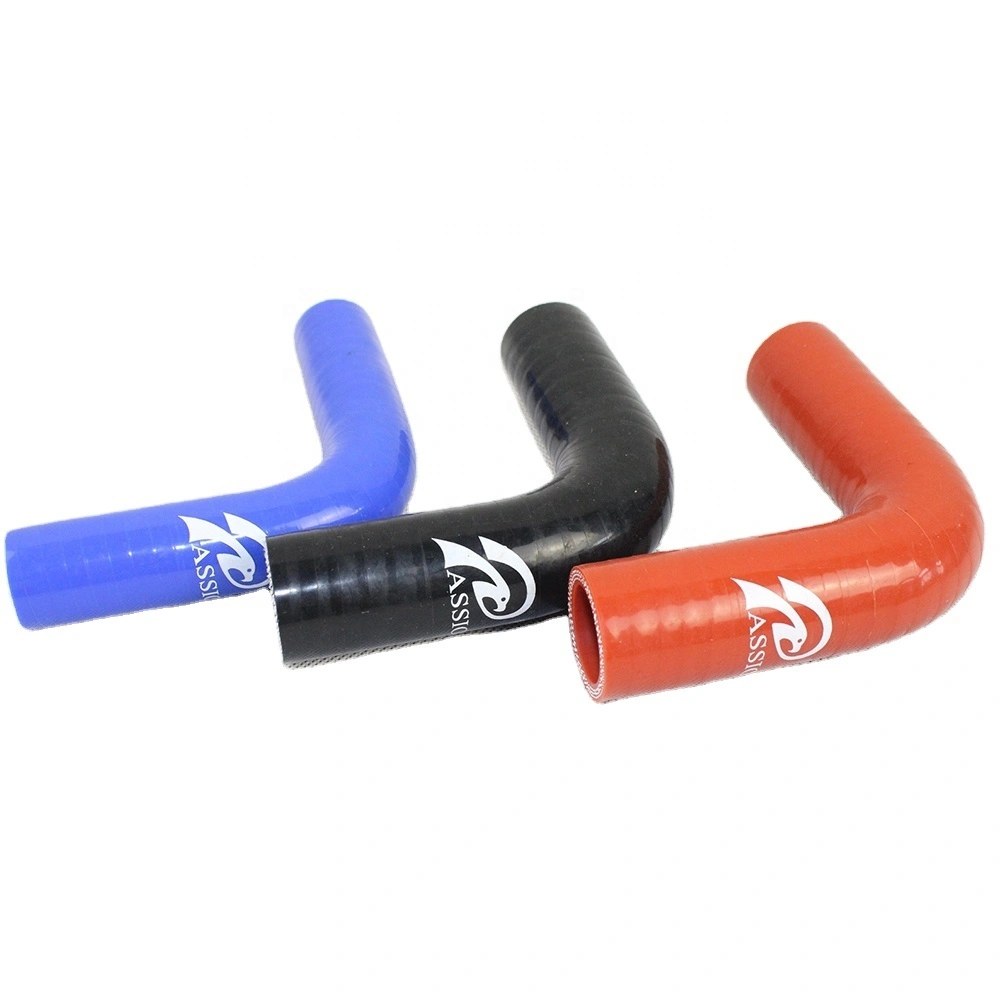

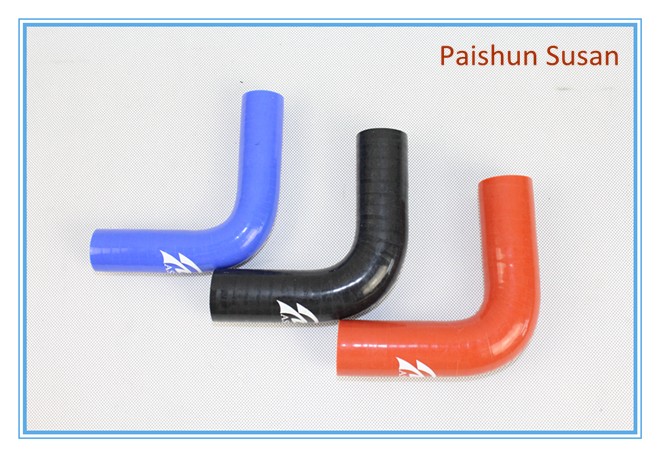

Product Item | Engine Cooling System 90 Degree Elbow Silicon Rubber Hose |
Material | Silicone rubber + Fabric reinforcement |
Temperature range | -40 ~ +250 C |
Pressure | 0.5~6 bar |
ID | 8mm ~ 152mm or as request |
Reinforcement | Polyester cloth or Aramid cloth |
Thickness | 4mm, 4.5mm, 5mm or request |
Color | Blue, Red, Black or request |
Note | Standard silicone hoses are not suitable for use with pressurized oil or fuel |
We do, however, offer special fluorosilicone liners for oil resistantce. |
PASSION FOR HOSE, PASSION FOR YOU

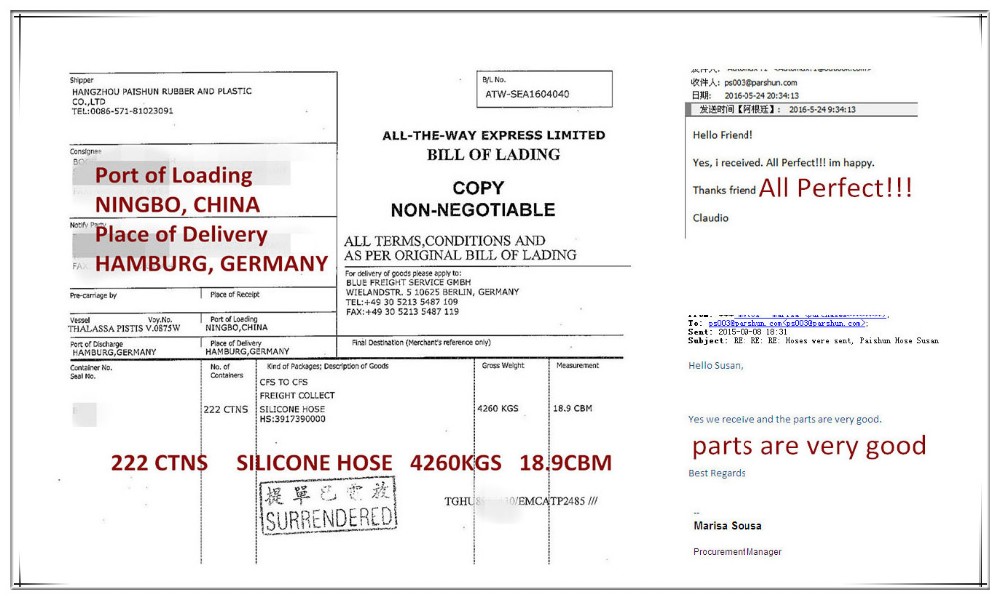

Bill of Loading Customer's Comments
Why they order silicone hoses from us again and again?
Because:
A. Material
Silicone Rubber Material: Wacker from Germany or KCC from South Korea | ||
Shore hardness | 70 Shore A | |
Density | 1.25 | |
Tensile Strength | 9.4Mpa | |
Tear Strength | 17.5KN/M | |
Elongation | 330% | |
Compression set | 30% | |
Reinforcement material: Polyester cloth or Aramid cloth | ||
Composition | 100% Kevlar fiber | |
Weigth for m2 | 120 g | |
Tensile Strenght on Warp and Weft | 750 N/5CM, 700 N/5CM | |
Elongation on Warp and Weft | 28%, 28% | |
(note: data may different for different lot material.) | ||
B. THE THICKNESS, THE SURFACE, THE LOGO
The Thickness
4 layers with 4.5mm wall
3 layers, 5 layers, 6 layers ok too.
4.5mm, 5mm, 8mm available.
The Surface
Always, smooth surface
Wrapped surface available too.
The Logo
Our logo, PASSION
Print your logo avaibla too.
C. VARIOUS KINDS OF SILICONE HOSES

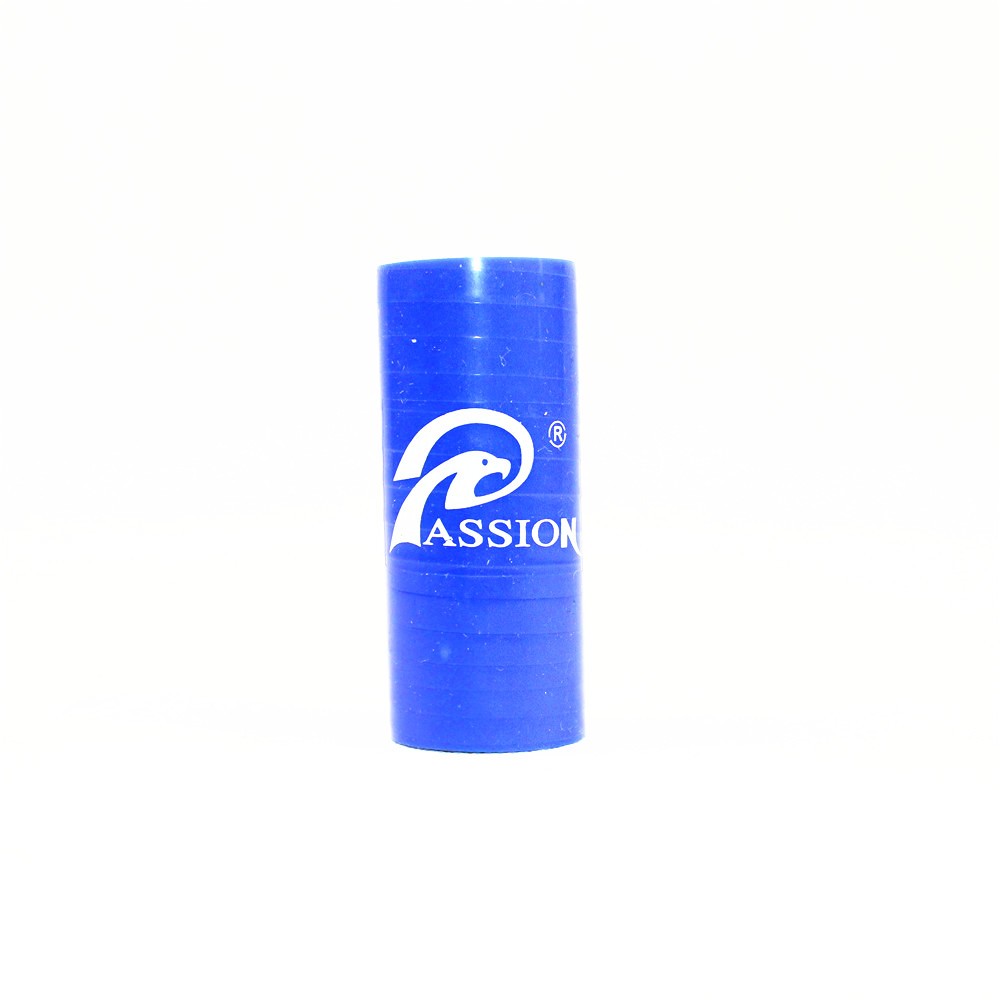

1) Straight coupler, 76mm, 1000mm, 2000mm. |

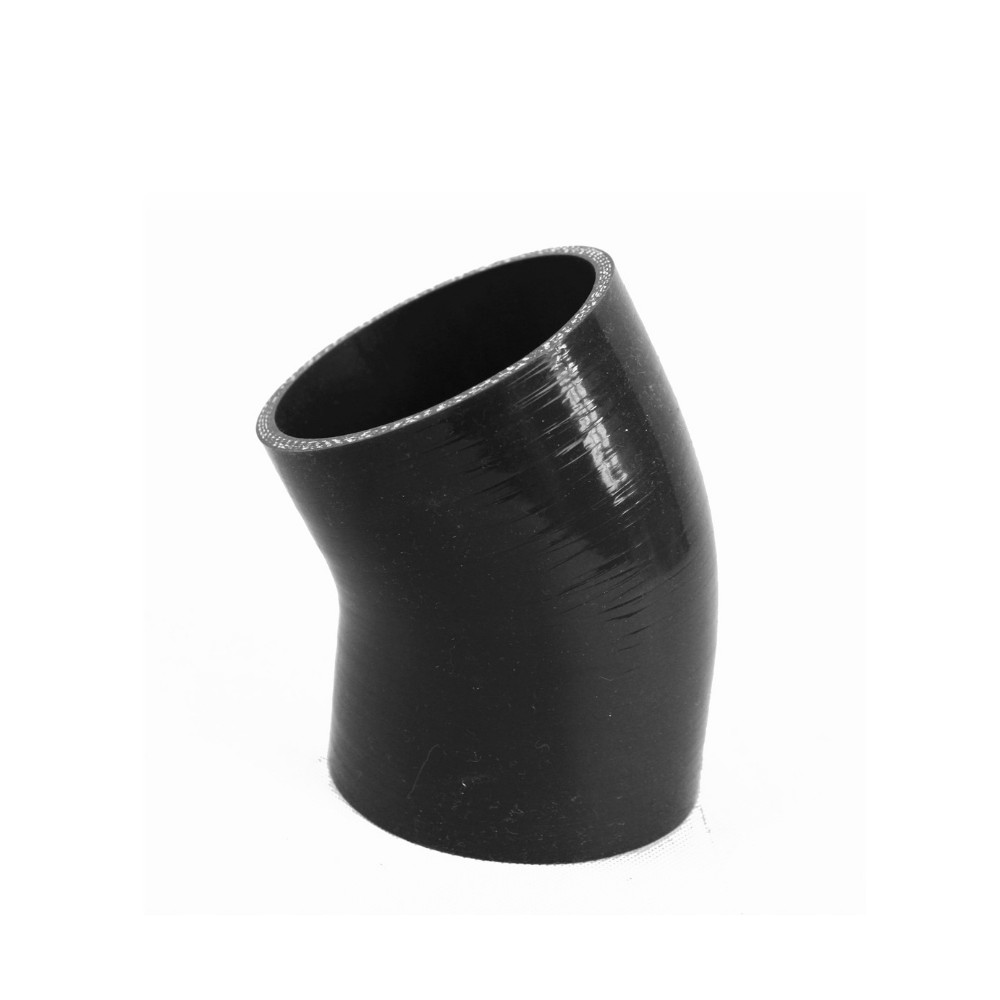

2) Elbow hose, 30 bend, 45 bend, 60 bend, 90 bend, 135 bend, 180 bend. |
3) Straight reducer. |
4) Elbow reducing, 45 degree reducing and 90 degree reducing. |

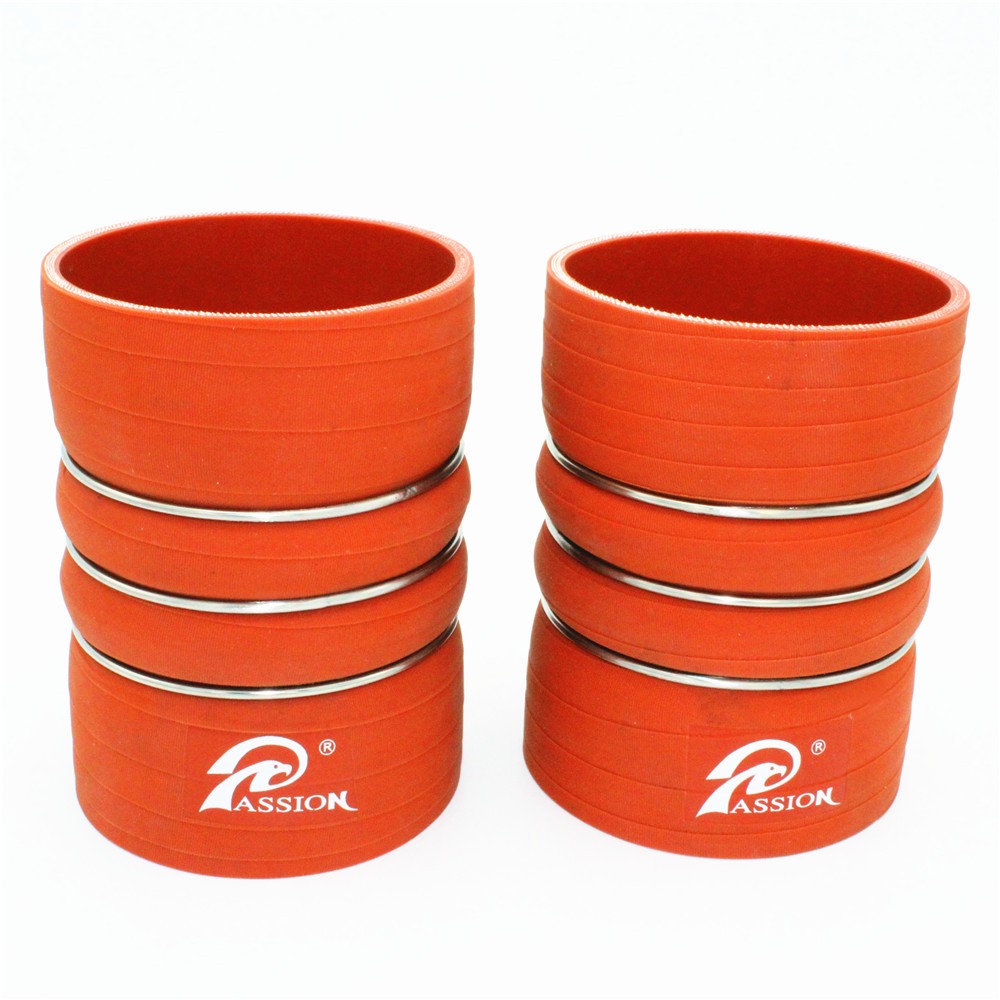

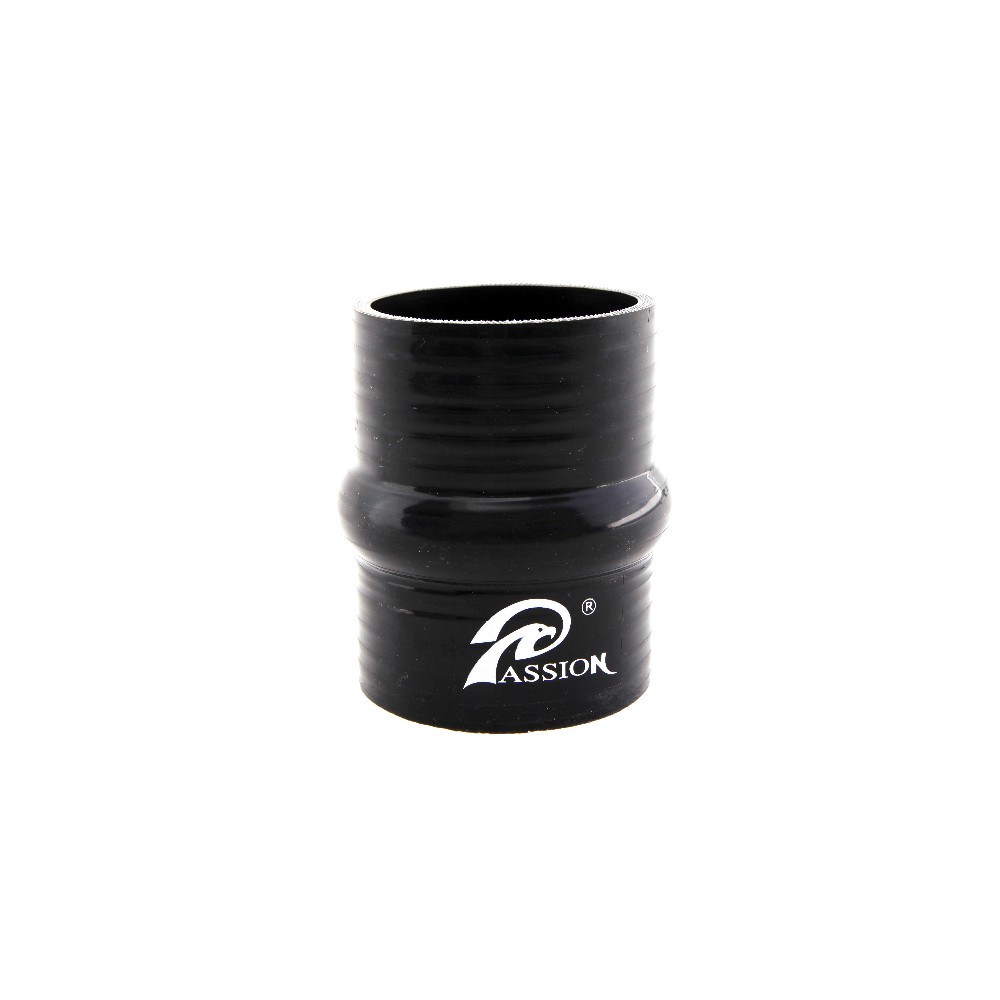

5) Bellows hump hose, intercooler CAC hose. |
6) T hose |
7) Vacuum hose |
8) Braided heater hose |
D. SPECIAL SERVICE
Low MOQ
Size>100 types, MOQ=20pcs
Size>200 types, MOQ=10pcs.
Sample + Customzied Hose
Free sample, available
Customzied hose according to drawing, available
Delivery time
30~35days for 222ctns.
E. FOLLOWING UP AND INSPECTING
a. Before shipment, photos will be offered.

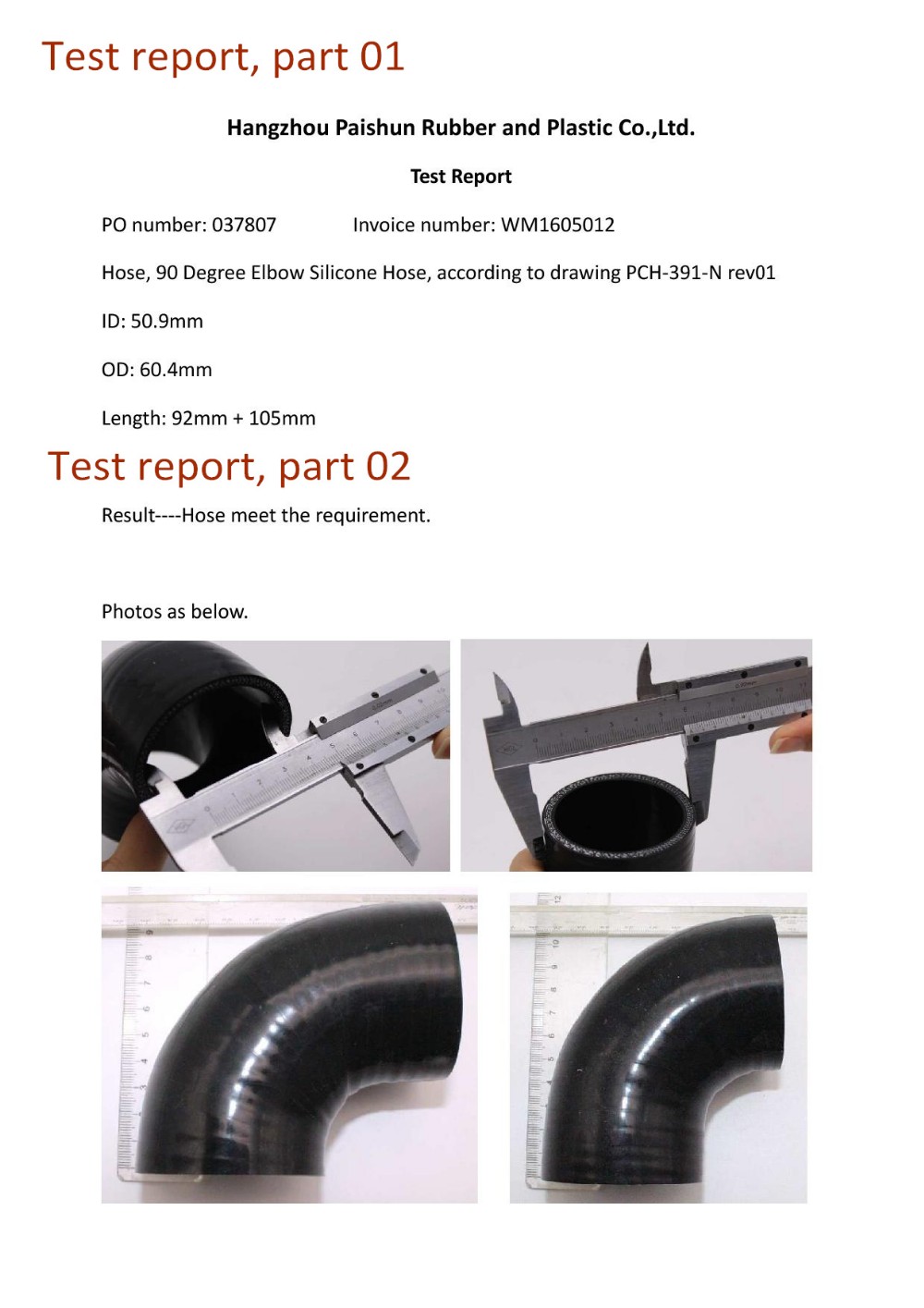

b. If requested, test report can be offered.
F. PACKING AND PACKING DETAILS
Print ID (60-45) on the inner tube.
It is easy to pick out this one from thousands ones.
Pack hose with individul pp bag, and stick lable on each bag.
Put hoses into carton with a big pp bag inside.

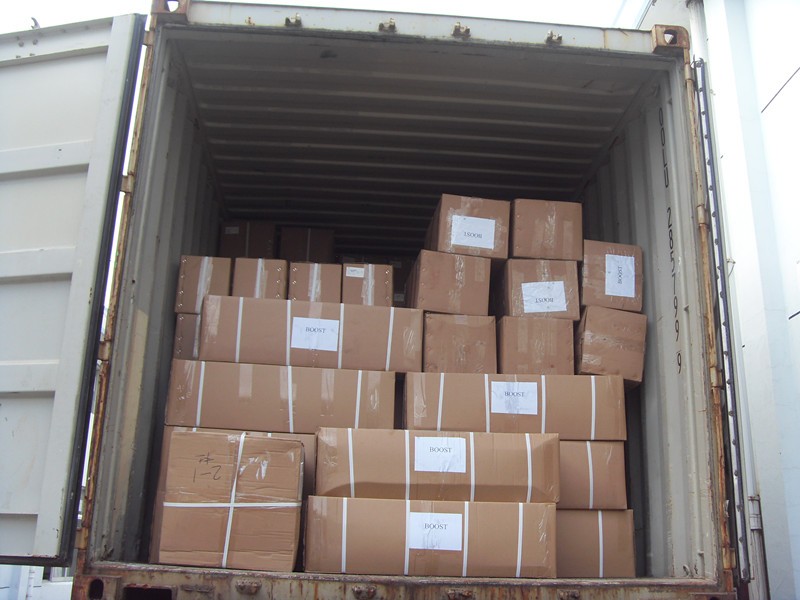

Be well packed and shipped by container.

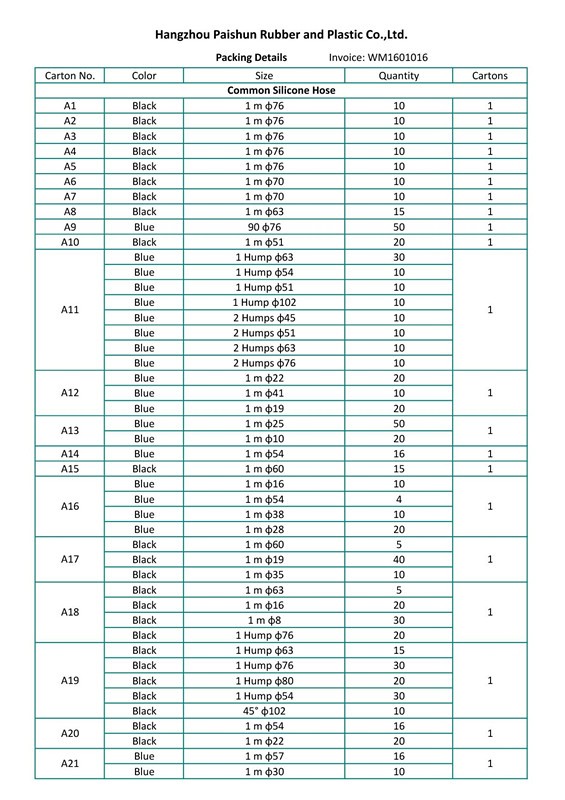

Packing details will be sent after shipment.
G. FACTORY AND FACILITY
Common packing: Be well packed with a plastic bag, then put hoses into carton with a big PP bag.
Loading port: Ningbo or Shanghai port.
