Paishun - Transparent High Pressure Braided Silicon Hose Silicone Heater Hose / Braided Silicone Hose
After years of painstaking research, Hangzhou Paishun Rubber & Plastic Co., Ltd’s technicians have successfully developed Transparent High Pressure Braided Silicon Hose. It has been proved that techniques can efficiently improve work efficiency and ensure product performance.It has extensive uses in the application field(s) of Rubber Hoses. For product inquiries, technical support, and other questions, you can reach us in any way stated on our 'Contact Us' page.
| Place of Origin: | Zhejiang, China | Brand Name: | Paishun |
| Model Number: | Transparent Silicone Hose | Item: | Transparent Silicone Hose |
| Size: | 3mm~38mm | Material: | Silicone Rubber |
| Surface: | Smooth Surface | Reinforcement: | 1 layer fiber braided |
| Color: | Blue, red, black etc. | Max Length: | 100meter |
| Temperature Range: | -40C~+250C | Package: | OPP film or as request |
| Business Type: | Manufacturer |

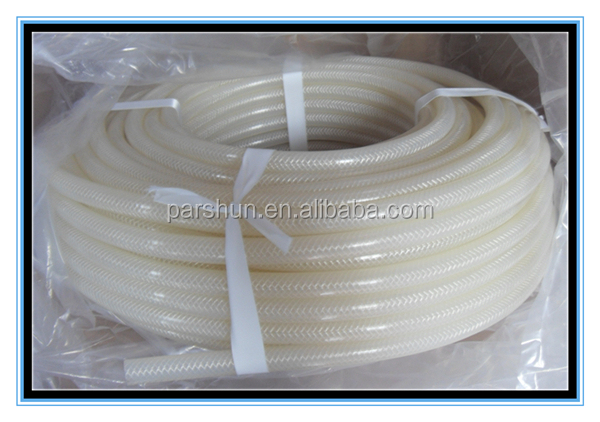

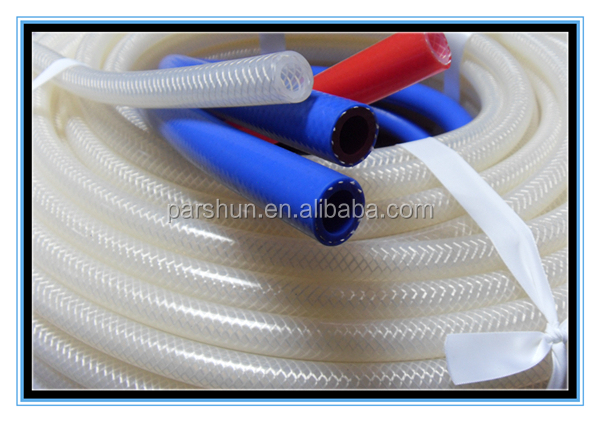

Transparent High Pressure Braided Silicon Hose
DESCRIPTION
APPLICATIONS
The high pressure silicone hose combine Excellent Performance of silicone tube and one single-layer nylon tube. Especially the burst pressure, anti-wear properties is greatly improved. It is safer and more reliable.
Widely used in food, medical, automotive, diving, construction machinery in the braking system, fuel system, and defense industry.
Structure: 1. Interior and exterior rubber lining use silicone material. Suitable for high temperature application.
2. Middle linning is one layer of high strengthen weaving fiber.
Size: Normal size(1/4''~1'') and can produce as per request.
Pressure: 0.5MPa~2.0Mpa
Color: Blue, red, transparent, black etc.
Temperature Range: -50C ~ +220C
SIZE | Burst Pressure (Bar) | Bend Radius (mm) | Hose Size | |
ID(inch) | Wall Thickness | |||
1/4’’ | 3.2 | 9.7 | 38.1 | 1/4 |
5/16” | 3.5 | 9.7 | 38.1 | 5/16 |
3/8” | 3.5 | 9.7 | 38.1 | 3/8 |
1/2” | 3.5 | 6.6 | 50.8 | 1/2 |
5/8” | 4.0 | 6.2 | 63.5 | 5/8 |
3/4” | 4.5 | 5.5 | 76.2 | 3/4 |
1” | 4.5 | 4.8 | 89.0 | 1 |

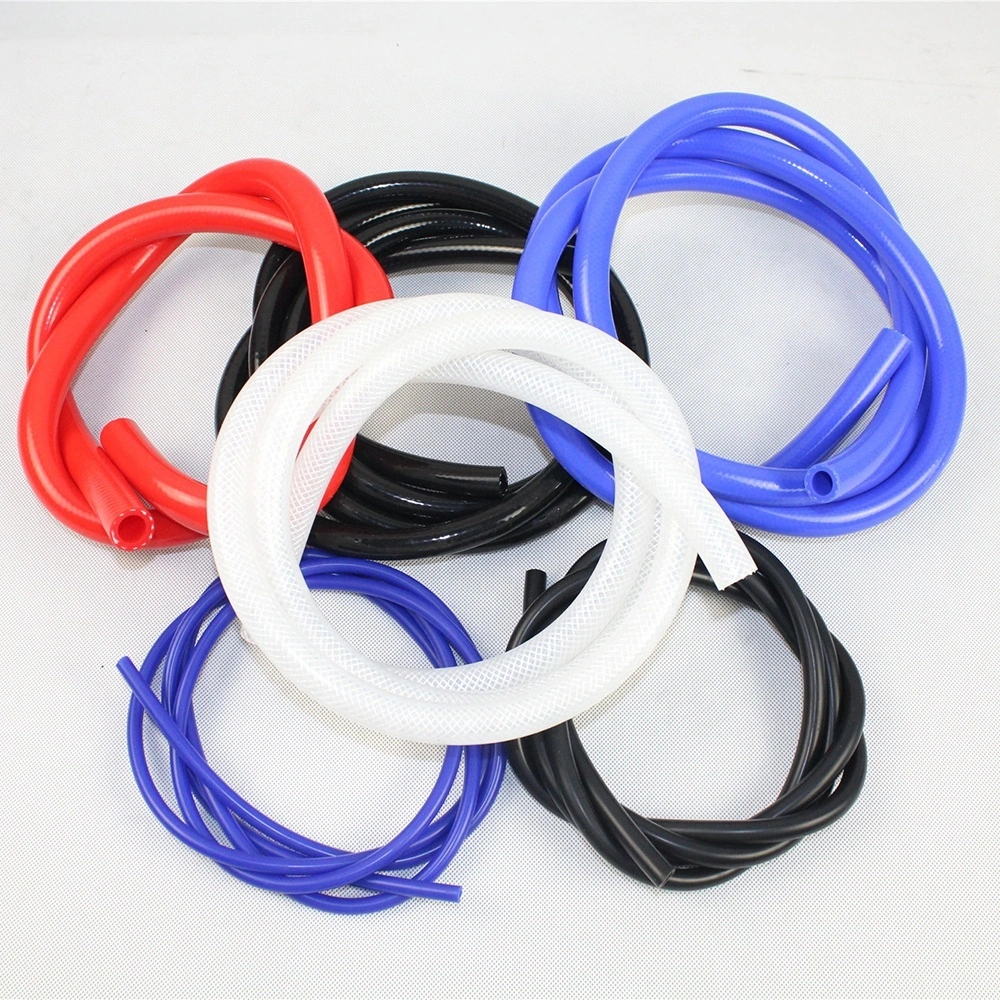

Color Options:
Innner tube: Clear, Blue, Red, Black etc.
Outer tube: Clear, Blue, Red, Black etc.
(Inner tube and outer tube can adopt different colors)
We can also produce Food Grade, Medical Grade silicone hose.

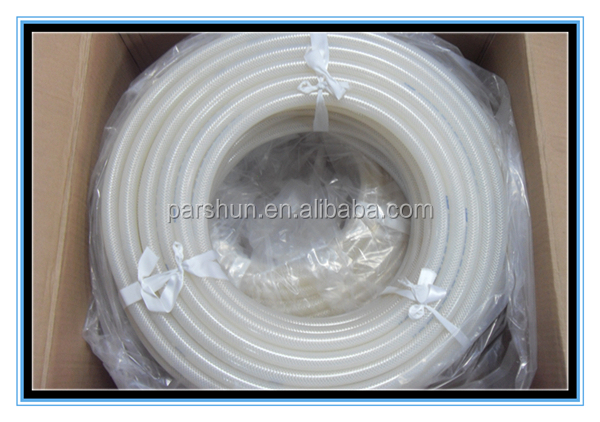

CARTONS & PALLETS PACKAGING
CONTAINER LOADING
Fair
1.Q:Are you a factory or trading company?
A:We are a factory
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION people always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, ISO, SGS, TUV etc. Authentication.
