Name: Paishun - 20 BAR 300 PSI Rubber Air Hose / Jackhammer Hose Air Fluid Hose Assembly
Uploaded: 2025-12-17T09:55:29+08:00
Description: Characterized by those practical and multi-functional features,20 BAR 300 PSI Rubber Air Hose / Jackhammer Hose has been approved to be used in the field(s) of Rubber Hoses.It is expected that more and more people will recognize it for its strong performance and also more benefits will be brought by it to people in different fields.

Characterized by those practical and multi-functional features,20 BAR 300 PSI Rubber Air Hose / Jackhammer Hose has been approved to be used in the field(s) of Rubber Hoses.It is expected that more and more people will recognize it for its strong performance and also more benefits will be brought by it to people in different fields.

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Hangzhou Paishun Rubber & Plastic Co., Ltd has been investing a lot in product development and has gained positive results. 20 BAR 300 PSI Rubber Air Hose / Jackhammer Hose is the result of high-end technologies.With the continual of enlarging of its application range in Rubber Hoses, its demands are increasing rapidly every year. Compared with the traditional ones, it better meets the market demands.

Place of Origin:	Zhejiang, China	Brand Name:	Paishun
Model Number:	ID 25MM	Processing Service:	Crimping
Material:	EPDM/ SBR	Color:	Red
Reinforcement:	High Tensile Textile Braided	Name:	Jackhammer hose
Size:	25X36mm	Length:	50ft
Standard:	ISO 2398	Working pressure:	300PSI
Working temperature:	-30 to 70 Deg C	Packing:	Wooden pallet

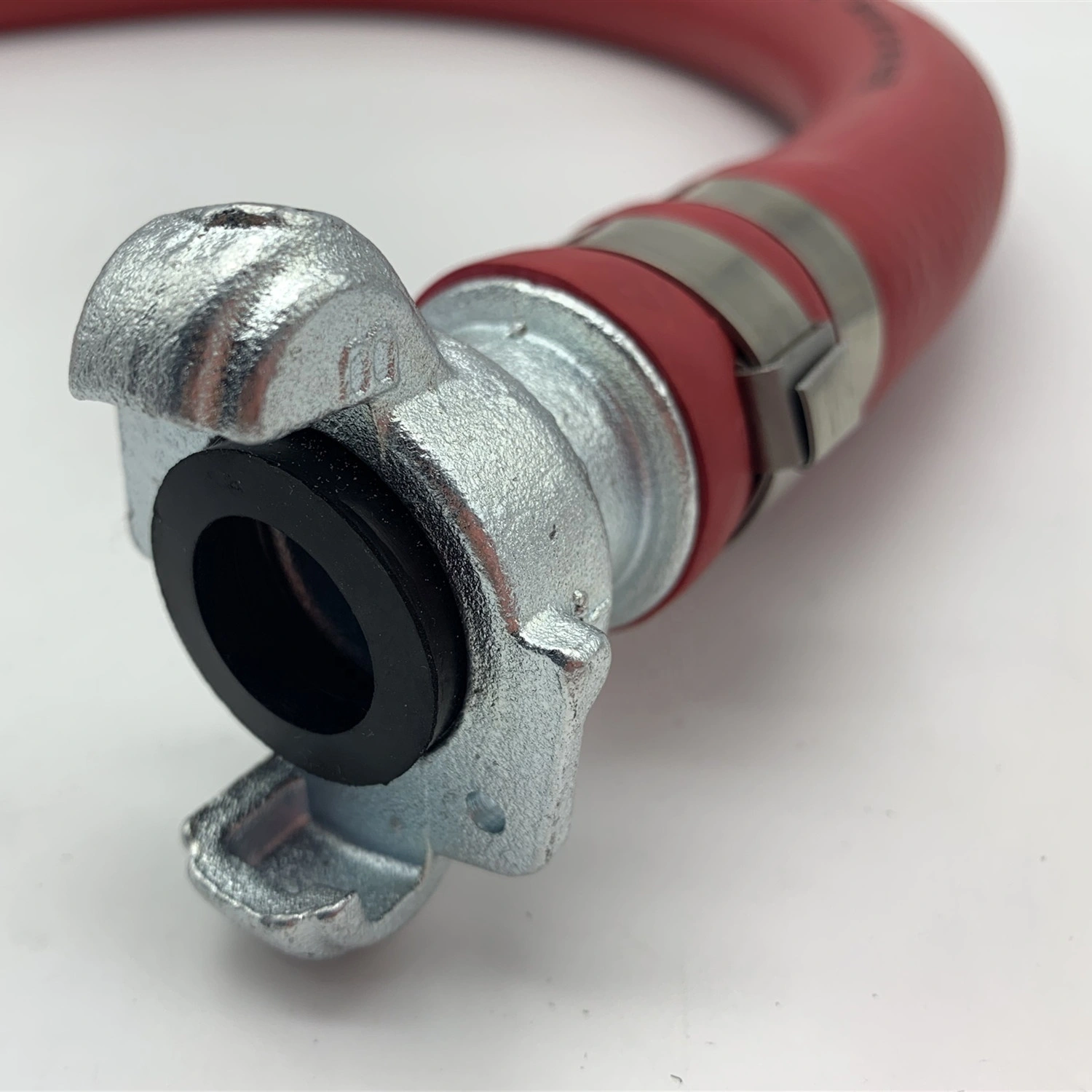

Rubber Air hose Assembly (Jack hammer hose)

Construction: Tube: NR& SBR synthetic rubber.

Reinforcement: High tensile polyester fiber braided.

Cover: NR & SBR or EPDM synthetic rubber.

Temperature: -30℃ - +70℃

Color: Red, Yellow, etc.

Application: Mainly used for building site and road construction

Standard length: 50ft(15m)

Specification of hose:

Item code	Inner Diameter		Outer Diameter	Working Pressure		Burst Pressure		Length	Weight
Item code	inch	mm	mm	bar	psi	bar	psi	ft/pc	kg/pc
HPR1	3/4"	19	29	17	250	50	750	50	10
HPR2	1"	25.4	36	14	200	40	600	50	14.5
HPR3	1"	25.4	37	20	300	60	900	50	15.5

Specification of fittings:

CRIMPED W/HOSE ENDS;

BANDED W/HOSE ENDS (C/W Safety Clamp)

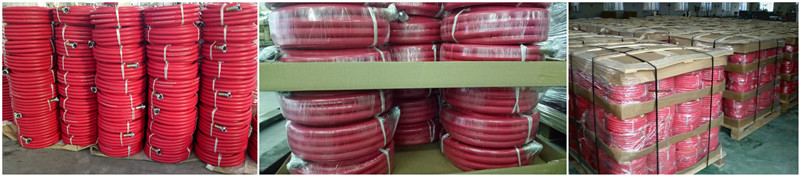

Paishun - 20 BAR 300 PSI Rubber Air Hose / Jackhammer Hose Air Fluid Hose Assembly 8
