Paishun - 5/8" Inch Industrial Red Water Rubber Hose Rubber Air/ Water Hose
Technologies matter a lot in the manufacturing process of the product. By applying technology, we have successfully upgraded the product.It is popular in the application scenario(s) of Rubber Hoses now. At Hangzhou Paishun Rubber & Plastic Co., Ltd, it is our goal to provide the highest quality products and superior service to our customers, both being our top priority. With regard to its design, 5/8" Inch Industrial Red Water Rubber Hose is designed by a team of our designers who are always close to the industry trend and keep alert to the changes.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | Water Hose | Processing Service: | Cutting |
| Size: | 5/8"Inch | Inner Diameter: | 16mm |
| Outer Diameter: | 24mm | Certification: | CE |
| Cover: | NR & SBR synthetic rubber | Standard Length: | 50m, 100m |
| Hose Surface: | Smooth surface | Reinforcement: | High Tensile Polyester Fiber Braided |
| Color: | Black, Red, Yellow, Blue, Green, Orange,etc | Material: | NR & SBR synthetic rubber |

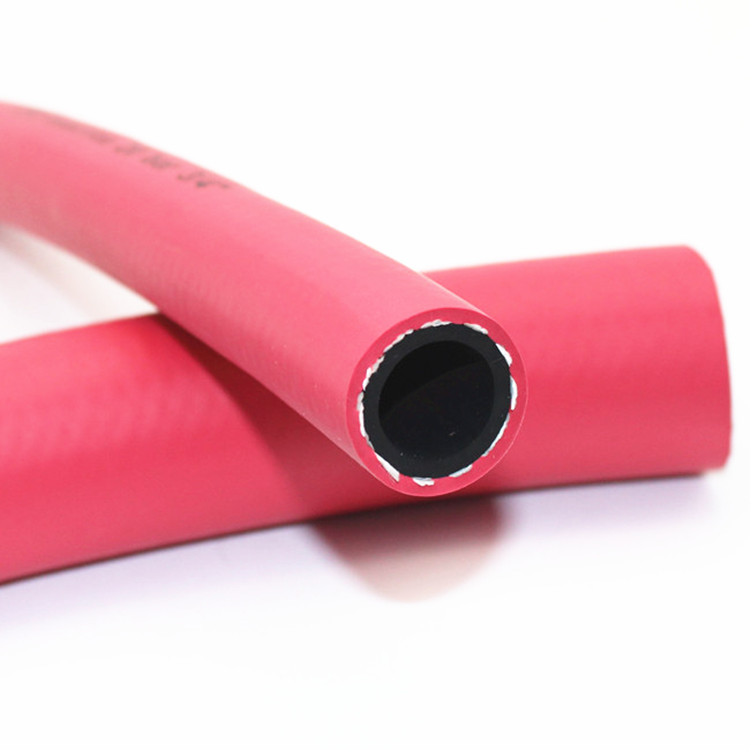

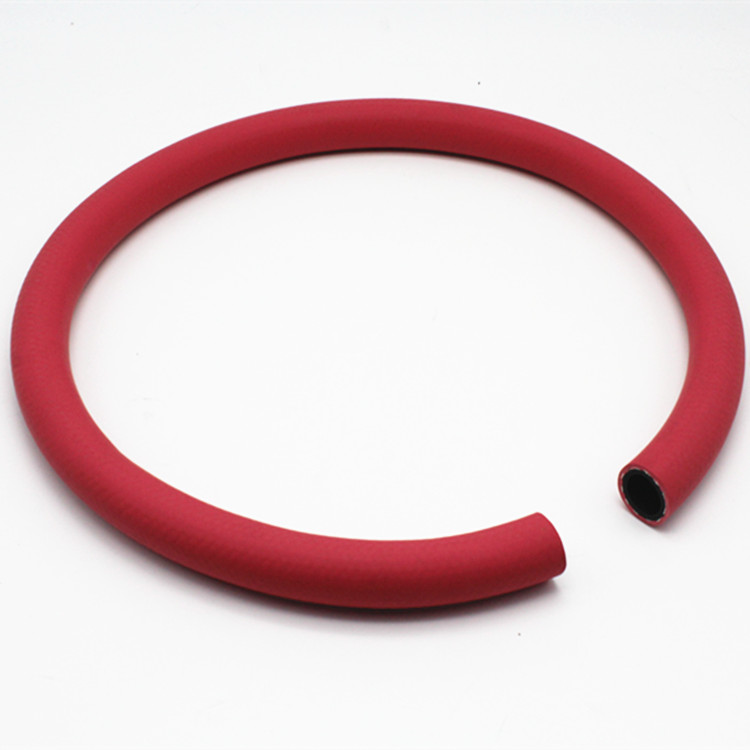

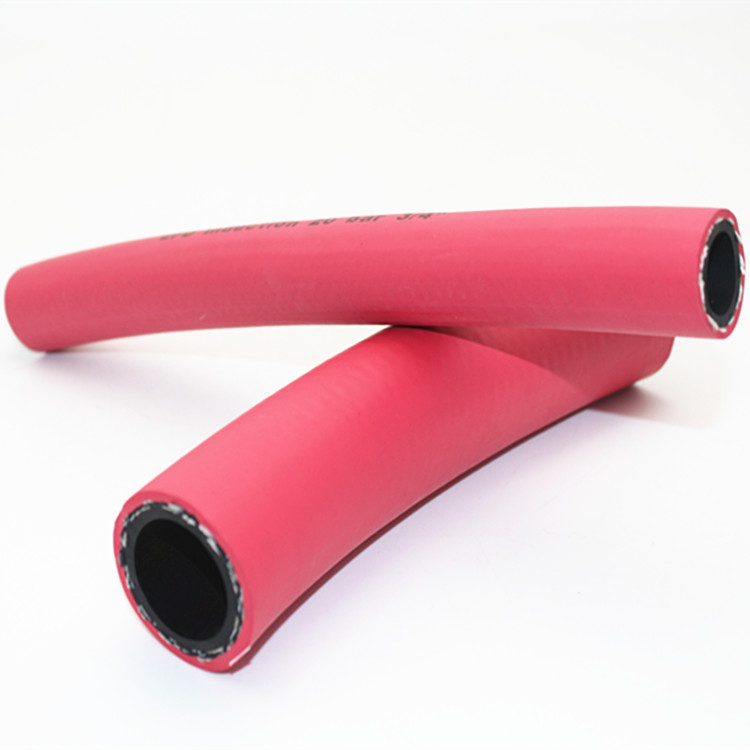

5/8" Inch Industrial Red Water Rubber Hose
Rubber Water Hose (smooth surface)
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, Red, Yellow, Blue, Green, Orange, etc.
Application: Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production etc.
Standard length: 50m, 100m.
Specification:
|
Item code |
Braided |
Inner Diameter |
Outer Diameter |
Working Pressure |
Burst Pressure |
Length |
Measurement |
Weight |
|||
|
inch |
mm |
mm |
bar |
psi |
bar |
psi |
m |
cbm/roll |
kg/m |
||
|
HPR1 |
1B |
1/4" |
6 |
12 |
12 |
180 |
36 |
540 |
100 |
0.025 |
0.14 |
|
HPR2 |
1B |
5/16" |
8 |
14 |
12 |
180 |
36 |
540 |
100 |
0.03 |
0.2 |
|
HPR3 |
1B |
3/8" |
10 |
15 |
12 |
180 |
36 |
540 |
100 |
0.04 |
0.21 |
|
HPR4 |
1B |
1/2" |
13 |
20 |
12 |
180 |
36 |
540 |
100 |
0.07 |
0.32 |
|
HPR5 |
1B |
5/8" |
16 |
24 |
12 |
180 |
36 |
540 |
50 |
0.05 |
0.44 |
|
HPR6 |
1B |
3/4" |
19 |
27 |
12 |
180 |
36 |
540 |
50 |
0.06 |
0.5 |
|
HPR7 |
1B |
1" |
25 |
35 |
12 |
180 |
36 |
540 |
50 |
0.09 |
0.79 |
|
HPR8 |
2B |
1-1/4" |
32 |
45 |
12 |
180 |
36 |
540 |
50 |
0.16 |
1.38 |
|
HPR9 |
2B |
1-1/2" |
38 |
52 |
12 |
180 |
36 |
540 |
50 |
0.2 |
1.7 |

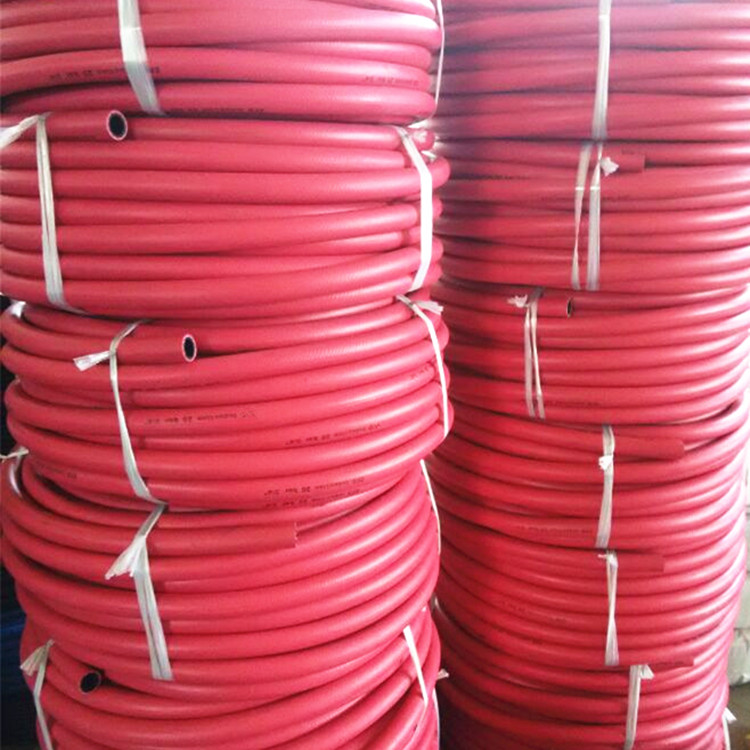

Packaging: Well packed by transparent OPP film or according to your requirement.
Shipping: We ship the goods by express, by air, by sea or according to your requirement.
Lead time: according to your quantity, generally speaking, 35 days 20' container.
♦ What is your terms of payment?
• T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
♦ How about your delivery time?
• Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
♦ Can you produce according to the samples?
• Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
♦ What is your sample policy?
• We can supply the sample for free, but the courier cost for you to pay.
♦ Do you test all your goods before delivery?
• Yes, we have 100% test before delivery
♦ How do you make our business long-term and good relationship?
• We keep good quality and competitive price to ensure our customers benefit ;
• We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
