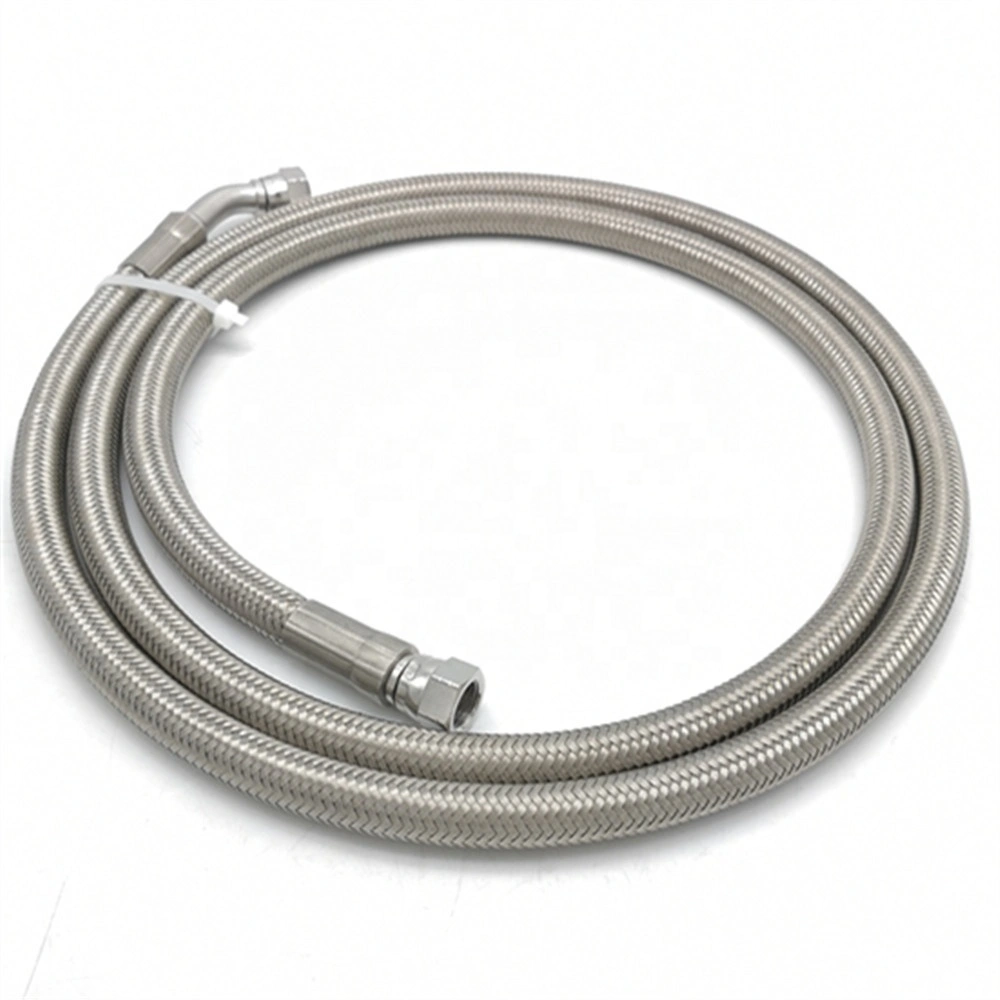

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 1

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 2

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 3

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 4

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 5

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 6

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 7

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly

Name: Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly
Uploaded: 2025-12-17T10:03:05+08:00
Description: Innovation is a factor in the long-term quality assurance of High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting.The measured data indicates that products meets the market requirements.In additon,we can customize size, shape or color to suit the specific need of our customers.

Innovation is a factor in the long-term quality assurance of High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting.The measured data indicates that products meets the market requirements.In additon,we can customize size, shape or color to suit the specific need of our customers.

Customization:

Customized logo (Min. Order: 100 Pieces),Graphic customization (Min. Order: 100 Pieces),Customized packaging (Min. Order: 100 Pieces)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

The application of technology plays an important role in the developing and manufacturing process of the product. Widely used in the application scene(s) of Plastic Tubes, the product has won wide popularity. It has been proved that high-end technologies can contribute to the high-efficiency manufacturing process.In the field(s) of Plastic Tubes,High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting is widely accepted by users. Hangzhou Paishun Rubber & Plastic Co., Ltd have realized the importance of technology. In recent years, we have been investing heavily in technology improvement and upgrades and the research and development of new products. In this way, we can occupy a more competitive position in the industry.

Place of Origin:	Zhejiang, China	Brand Name:	PAISHUN
Model Number:	AN3	Material:	PTFE
Specification:	1/8" I.D.	Length:	36''
Thickness:	0.85mm	Standard:	SAE 100R14
Processing Service:	Cutting, extrusion and braid, PU / PVC coating cover	Dash:	03
Inner Diameter:	3.2mm	Outer Diameter:	6.5mm
Operating Temperature:	-65C to +260C	Connection:	stainless steel JIC female swivels
Inner tube:	smooth virgin ptfe lined	Outer:	AISI 304 Braided
Max. Working Pressure:	105 bar	Min. Burst Pressure:	827 bar
Min. Bend Radius:	40mm

Why Choose PTFE

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 8

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 9

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 12

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 13

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 14

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 15

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 16

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 17

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 18

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 19

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 20

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - High Temperature Flexible Stainless Steel Braided PTFE Hose With Fitting PTFE Hose Assembly 21

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
