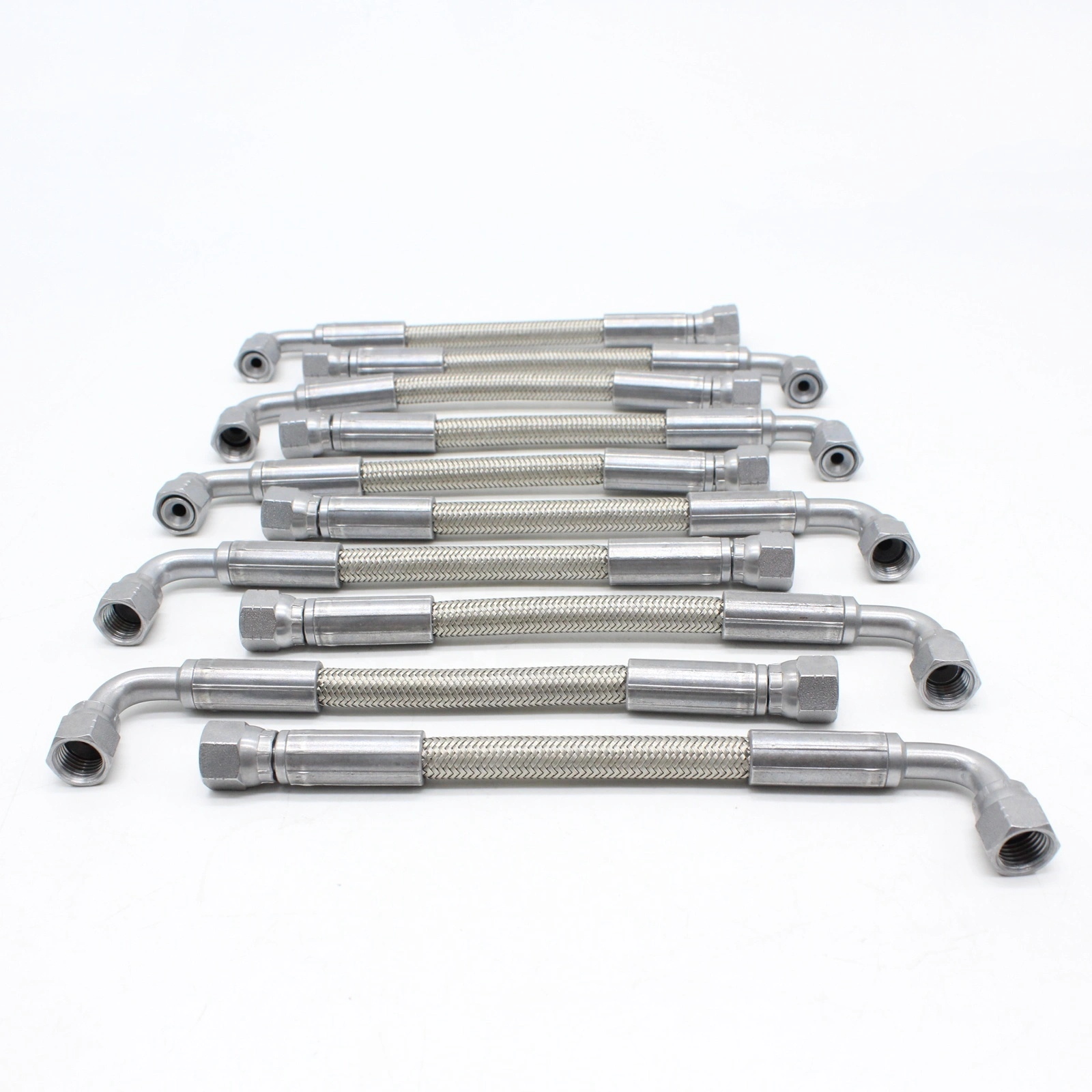

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 1

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 2

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 3

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 4

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 5

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 6

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 7

Paishun - 3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly

Name: Paishun - 3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly
Uploaded: 2025-12-17T10:03:52+08:00
Description: we have successfully developed one of the most outstanding products-3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models.We have conducted many practical experiments which prove that the product can function its greatest effect in the field(s) of Auto Brake Hoses.

we have successfully developed one of the most outstanding products-3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models.We have conducted many practical experiments which prove that the product can function its greatest effect in the field(s) of Auto Brake Hoses.

Customization:

Customized logo (Min. Order: 1000 Meters),Graphic customization (Min. Order: 1000 Meters),Customized packaging (Min. Order: 1000 Meters)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models launched by Hangzhou Paishun Rubber & Plastic Co., Ltd has a clear positioning and is a product designed to solve industry pain points. Modern technologies innovate means are adopted for the flawless manufacturing of 3/16" Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models.So far, the application areas of the product have been expanded to the Auto Brake Hoses. For the growth and development of our company, Hangzhou Paishun Rubber & Plastic Co., Ltd will never stop upgrading and developing technologies to enhance our core competitiveness. Our vision is to become a famous enterprise in the global market.

OE NO.:	NO	Size:	3/16", 3/16"
Warranty:	3 years	Place of Origin:	Zhejiang, China
Brand Name:	PASSION	Car Model:	KRX Models
Style:	PTFE Brake Hose	Temperature:	-65C to +260C
Connection:	JIC Female Swivel fitting	Inner tube:	smooth bore ptfe
Outer:	SS304 wire braided	Diameter:	5.0mm x 7.7mm
Min. Bending Radius:	75mm

Why Choose PTFE

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 8

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 9

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 12

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 13

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

-Brake systems

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 14

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 15

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 16

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 17

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 18

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 19

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 20

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - 3/16 Smooth Bore PTFE Brake Hoses With 304 Stainless Steel Braid For KRX Models PTFE Hose Assembly 21

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
