A hose manufacturer with over two decades of experience.

Products

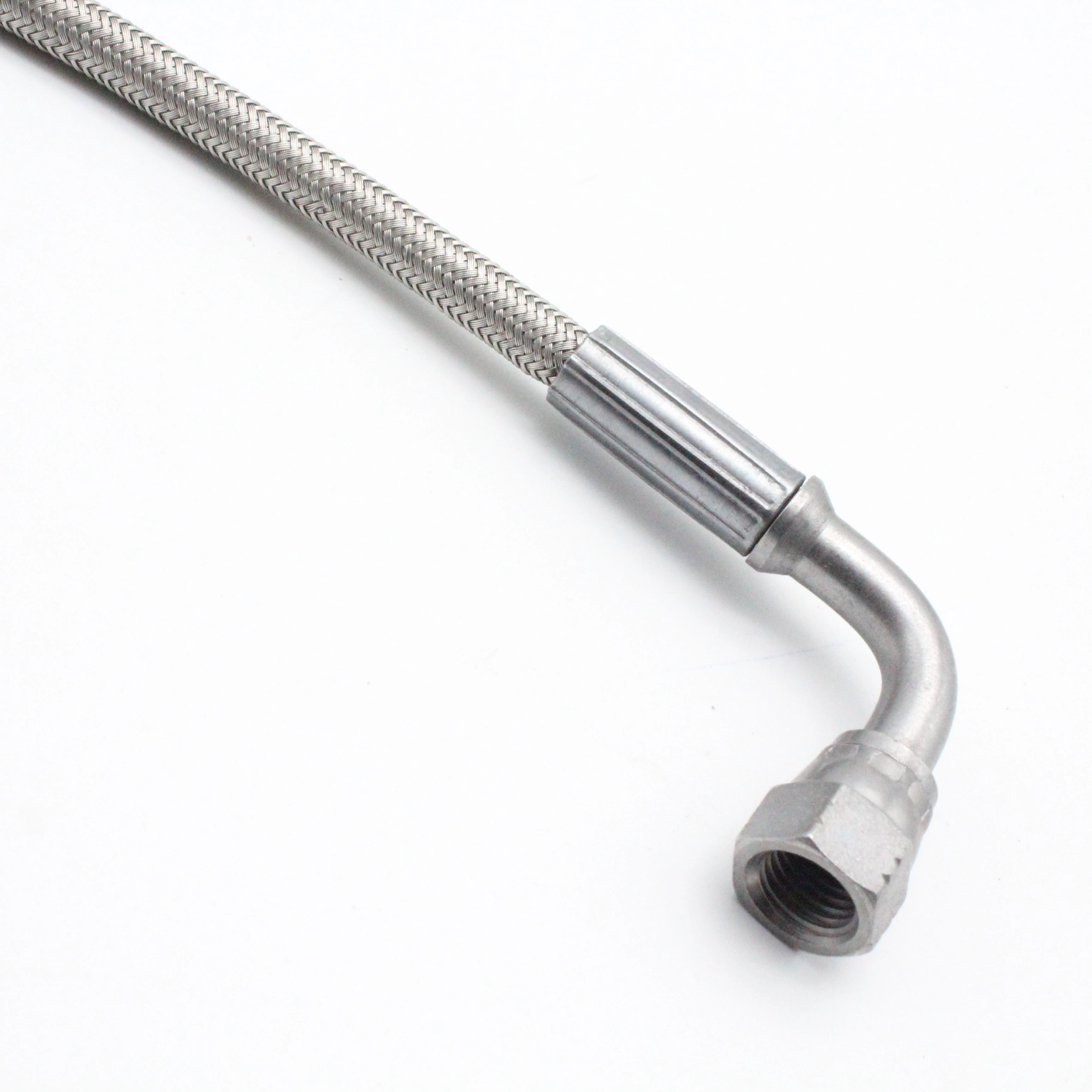

Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 1
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 2
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 3
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 4
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 5
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 1
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 2
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 3
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 4
Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 5

Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly

The use of highly advanced technologies contributes to the safe and efficient manufacturing of the product.At present, 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends can be widely seen in the application scope(s) of Plastic Tubes.
5.0
Customization:
Customized logo (Min. Order: 1000 Meters),Graphic customization (Min. Order: 1000 Meters),Customized packaging (Min. Order: 1000 Meters)
shipping:
Support Sea freight · Land freight
design customization

    oops...!

    no product data.

    Go to homepage
    Required Products
    Total price discount:

    There are different types and sizes of 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends that buyers can buy from the Paishun. It is designed in accordance with the national standard. Looking to the future, 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends will continue to follow the route of independent innovation, and continue to introduce high-tech talents as intellectual support, and strive to achieve the goal of becoming a world-class enterprise.

    Place of Origin:Zhejiang, ChinaBrand Name:PAISHUN
    Model Number:R14-04Material:PTFE
    Specification:1/4" I.D.Length:1 meter
    Thickness:0.85mmStandard:SAE 100R14
    Processing Service:extrusion and braidStyle:ptfe stainless steel braided hose
    Size:1/8" to 2"Temperature:-65C to +260C
    Connection:JIC female thread

    Why Choose PTFE
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 6
    Character of PTFE
    The PTFE hose material is made of Japanese Daikin.
    The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.
    PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:
    1. Excellent weather resistance, long service life, no brittle fracture and no aging.
    2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.
    3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.
    4. With a very low friction coefficuent. non-flammable.
    5. With very low evaporate transpiration rate, cold liquid is not volatile.
    6. With excellent electrical charateristics (does not change with frequency and temperature changes)
    7. Excellent mechanical properties, shock resistance and flexibility.



    Product Overview
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 7
    Inner tube: PTFE
    Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260
    Advantage:
    Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.
    No
    Specification
    I.D.
    O.D.
    Thickness
    W.P.
    B.P
    Min. Bending Radius
    mm
    mm
    mm
    bar
    bar
    mm
    1
    1/8
    3.5
    6.6
    1
    320
    988
    51
    2
    3/16
    4.8
    7.6
    0.85
    242
    726
    75
    3
    1/4
    6.4
    9.2
    0.85
    210
    653
    81
    4
    5/16
    8
    11
    0.85
    188
    587
    92
    5
    3/8
    9.7
    12.8
    0.85
    185
    556
    131
    6
    1/2
    12.7
    15.9
    1
    106
    461
    182
    7
    5/8
    16
    19.2
    1
    90
    382
    211
    8
    3/4
    19
    22.7
    1.2
    78
    269
    338
    9
    7/8
    22.2
    26
    1.2
    60
    195
    421
    10
    1
    25
    29.3
    1.5
    40
    153
    539
    11
    2
    50
    55.6
    2
    30
    120
    1015
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 8
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 9



    PTFE Hose Assembly

    We can crimp the hose assembly in our factory.
    Ferrule: 00TF0
    Fitting: According to customers' request. Most of them use JIC Female thread.
    Material 1: carbon steel with zinc plated
    Material 2: carbon steel with nickel alloy plated
    Material 3: SS304 / SS316
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 10
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 11
    Application
    Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

    -Flamethrower
    -Air Compressor
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 12
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 13
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 14
    Packing&Shipping
    Packing 1: PE bag with headcard for short hose assembly
    Packing 2: by rolls with poly stripes
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 15
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 16
    Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 17
    If you need the goods urgently, ship
    by express
    is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
    special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 18
    If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
    air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 19
    If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
    Paishun - 6mm Flexible High Temperature PTFE Stainless Steel Braided Hose with JIC Female Hose Ends PTFE Hose Assembly 20
    The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.
