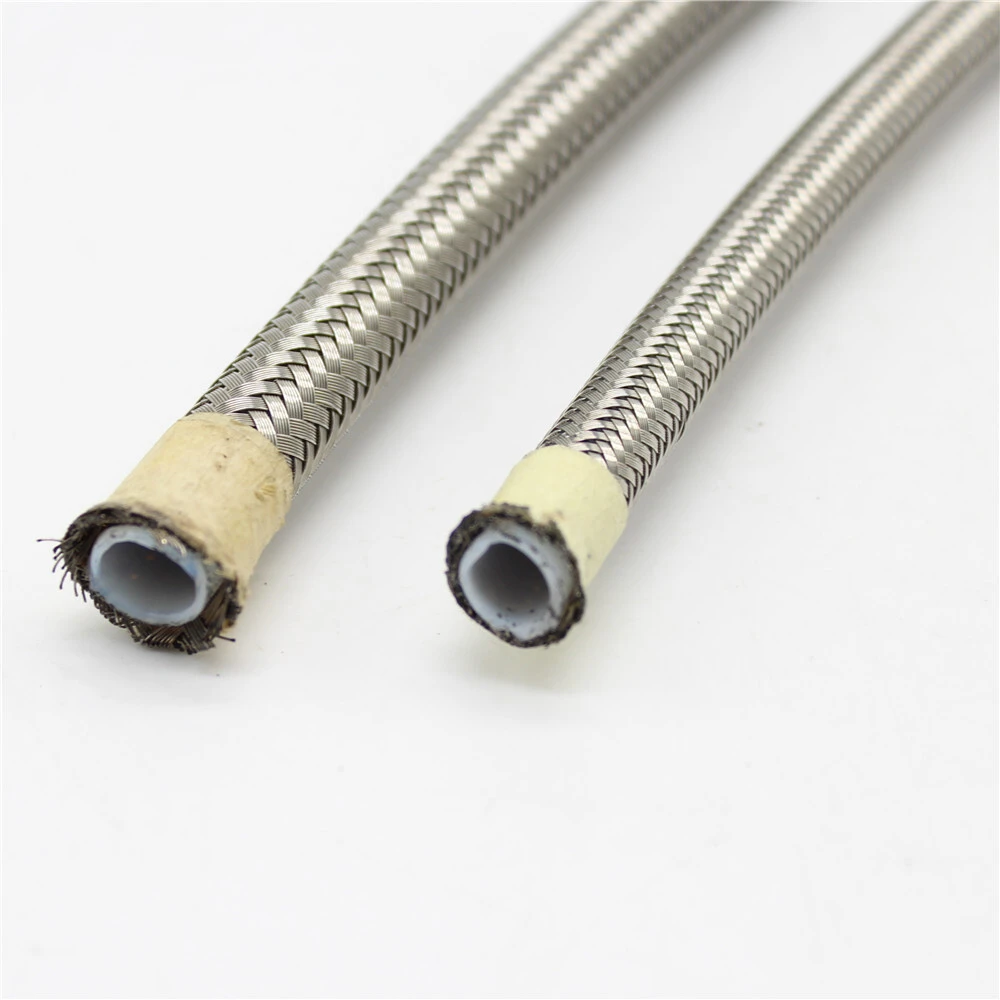

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 1

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 2

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 3

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 4

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 5

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 6

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 7

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose

Name: Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose
Uploaded: 2025-12-17T10:12:55+08:00
Description: Technologies are essential to the manufacturing of Flexible DN8 Stainless Steel Wire Braided PTFE Hose.After being upgraded for several generations, the newest product has been proved to have more extensive uses in Plastic Tubes and other fields.

Technologies are essential to the manufacturing of Flexible DN8 Stainless Steel Wire Braided PTFE Hose.After being upgraded for several generations, the newest product has been proved to have more extensive uses in Plastic Tubes and other fields.

Customization:

Customized logo (Min. Order: 500 Meters),Customized packaging (Min. Order: 500 Meters),Graphic customization (Min. Order: 500 Meters),Hose Assembly (Min. Order: 500 Meters)

shipping:

Support Sea freight · Land freight

Inquiry

Write a Review

Required Products

Total price discount:

BUY TOGETHER

Inquiry together

Thanks to the efforts of Hangzhou Paishun Rubber & Plastic Co., Ltd's employees, our development work has been carried out smoothly and efficiently. Our Flexible DN8 Stainless Steel Wire Braided PTFE Hose is developed to lead the industry trend with its new features and unique appearance. Our professional engineers applied technology to product development.The product can be used in a wide range of applications like Plastic Tubes requiring very high quality. Hangzhou Paishun Rubber & Plastic Co., Ltd are full of passion for what we are doing now. Nurtured by the corporate culture of unity and integrity, every employee is optimistic and constantly looking for more and better methods to manufacture the products. Our vision is to create benefits for our partners and customers.

Place of Origin:	Zhejiang, China	Brand Name:	PASSION PTFE HOSE
Model Number:	PSPT-08	Material:	PTFE
Specification:	5/16'' ID	Length:	50 to 100m (random length)
Thickness:	0.85mm	Standard:	SAE100 R14
Processing Service:	Cutting, Hose assembly	Inner diameter:	7.9mm+/-0.3
Outer diameter:	10.8mm+/-0.3	Max.Working Pressure:	188 bar
Min.Burst Pressure:	587 bar	Min. Bend Radius:	92mm
Tube:	smooth Seamless PTFE	Performance:	Excellent high Temperature & Chemical resistance
Cover:	304 /316 stainless steel braided	Packing:	woven bags
Temperature Range:	-60C to +220 C

Why Choose PTFE

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 8

Character of PTFE

The PTFE hose material is made of Japanese Daikin.

The temperature range is -200C to +260C, melting point: 327C. It can't be injection molded and can be pressed and formed. The max. operating temperature is 280C.

PTFE has the following excellent properties due to its strong carbon-fluorine bond and high molecular wieght:

1. Excellent weather resistance, long service life, no brittle fracture and no aging.

2. Resistant to strong acid and alkali, resistant to various corrosive chemicals.

3. Anti-adhesive, anti-moisture and ultraviolet, non-toxic.

4. With a very low friction coefficuent. non-flammable.

5. With very low evaporate transpiration rate, cold liquid is not volatile.

6. With excellent electrical charateristics (does not change with frequency and temperature changes)

7. Excellent mechanical properties, shock resistance and flexibility.

Product Overview

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 9

Inner tube: PTFE

Outer tube: stainless steel 304 wire braided Temperature range: -65℃ to +260℃

Advantage:

Because of its high temperature resistance, low temperature resistance, corrosion resistance high lubricating property, inadhesion, toxicity and electrical insulation it is widely used in mechanical, electrical applicances, automotive, aerospace,, chemical, pharmaceutical, communication and other fields.

No	Specification	I.D.	O.D.	Thickness	W.P.	B.P	Min. Bending Radius
No	Specification			mm	mm	mm	bar	bar	mm
1	1/8	3.5	6.6	1	320	988	51
2	3/16	4.8	7.6	0.85	242	726	75
3	1/4	6.4	9.2	0.85	210	653	81
4	5/16	8	11	0.85	188	587	92
5	3/8	9.7	12.8	0.85	185	556	131
6	1/2	12.7	15.9	1	106	461	182
7	5/8	16	19.2	1	90	382	211
8	3/4	19	22.7	1.2	78	269	338
9	7/8	22.2	26	1.2	60	195	421
10	1	25	29.3	1.5	40	153	539
11	2	50	55.6	2	30	120	1015

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 10

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 11

PTFE Hose Assembly

We can crimp the hose assembly in our factory.

Ferrule: 00TF0

Fitting: According to customers' request. Most of them use JIC Female thread.

Material 1: carbon steel with zinc plated

Material 2: carbon steel with nickel alloy plated

Material 3: SS304 / SS316

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 12

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 13

Application

Because of wide using temeprature range, it can be used for food processing, high temperature fluid, chemicals and compressed gas, like

-Flamethrower

-Air Compressor

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 14

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 15

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 16

Packing&Shipping

Packing 1: PE bag with headcard for short hose assembly

Packing 2: by rolls with poly stripes

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 17

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 18

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 19

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 20

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

Paishun - Flexible DN8 Stainless Steel Wire Braided PTFE Hose SS PTFE Smooth Hose 21

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.
