(Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.

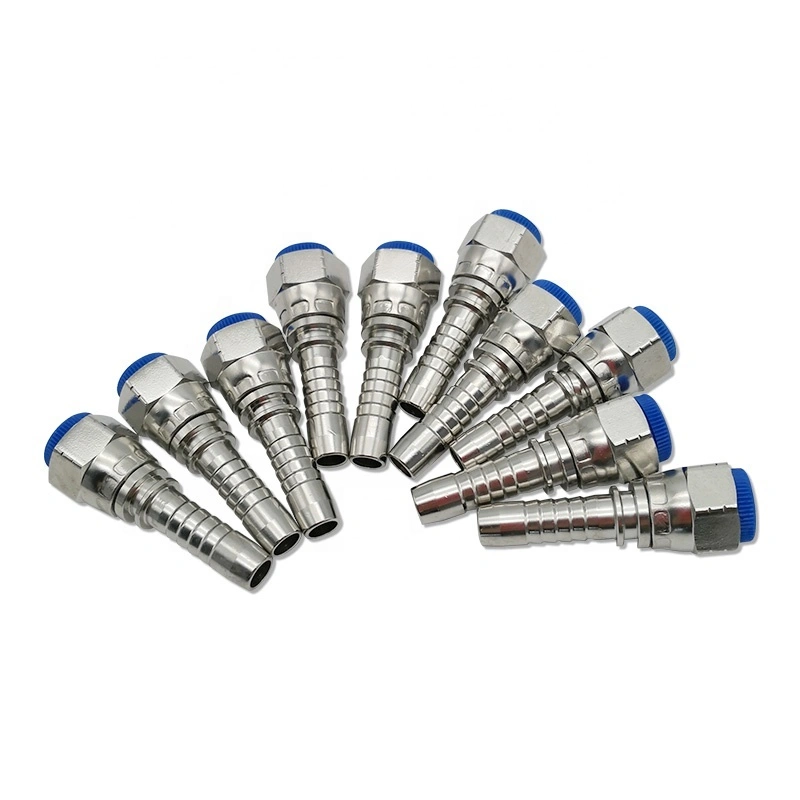

Paishun - 3/8" Stainless Steel JIC Female PTFE Braided Hose Fittings Hydraulic Hose Fitting
As we realize the importance of technology in this tech-driven business society, we have made some innovations and improvements in our currently-used technologies. Advanced technologies are applied in the manufacturing process now in our company.With those proven advantages,3/8" Stainless Steel JIC Female PTFE Braided Hose Fittings has received wide popularity in the field(s) of 3/8" Stainless Steel JIC Female PTFE Braided Hose Fittings.
5.0
Customization:
Customized packaging (Min. Order: 2000 Pieces),Customized logo (Min. Order: 1000 Pieces),Graphic customization (Min. Order: 2000 Pieces)
shipping:
Support Sea freight · Land freight
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Required Products
Total price discount:
In the fierce market competition, Hangzhou Paishun Rubber & Plastic Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Other Hydraulic Parts industry. Hydraulic Hose Fitting Hangzhou Paishun Rubber & Plastic Co., Ltd adhere to the corporate spirit of 'pragmatism & innovation' and aim to create benefits for our stakeholders. Driven by the fierce competition in the market, Hangzhou Paishun Rubber & Plastic Co., Ltd hold a firm belief that we must focus on R&D and develop new technologies to adapt to the market trends.
| Condition: | New | Warranty: | Unavailable |
| Showroom Location: | None | Type: | Fittings, PTFE Hose Fitting |
| Brand Name: | PAISHUN | Place of Origin: | Zhejiang, China |
| Weight: | 0.081 | Color: | Silver |
| Material: | SS304 | Size: | 3/8" |
| Packaging: | Cartons | Standard: | Yonghua |
Product Description
Part Number | 26711 |
Thread | JIC Female 74 Degree Cone Seat |
Material | Stainless Steel 304 / Stainless Steel 316 |
Standard | Yonghua |
Detailed Images
Related Products
Workshop
Projection Test
It can efficiently test the surface shape and contour of various complicated fittings.
(Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.
Product Overview
Inner tube: corrugated PTFE
Outer tube: stainless steel 304 wire braided
Temperature range: -65℃ to +260℃
Advantage:
high temperature resistance, corrsion resistance, excellent flexibility and resistance to distortion
No | Specification | I.D. | O.D. | Thickness | W.P. | B.P | Min. Bending Radius |
mm | mm | mm | bar | bar | mm | ||
1 | 1/4 | 6.4 | 11.5 | 0.8 | 150 | 400 | 20 |
2 | 5/16 | 8 | 12.3 | 0.65 | 130 | 365 | 25 |
3 | 3/8 | 10 | 14.2 | 0.65 | 125 | 350 | 33 |
4 | 1/2 | 13 | 17.2 | 0.85 | 110 | 330 | 42 |
5 | 5/8 | 16 | 21.6 | 0.9 | 80 | 245 | 50 |
6 | 3/4 | 19 | 25.3 | 1 | 70 | 215 | 63 |
7 | 1 | 25 | 31 | 1 | 50 | 150 | 79 |
8 | 1 1/4 | 32 | 39 | 1.1 | 45 | 140 | 125 |
9 | 1 1/2 | 38 | 45 | 1.45 | 43 | 120 | 145 |
10 | 2 | 50 | 60 | 1.5 | 35 | 100 | 180 |
PTFE Hose Assembly
We can crimp the hose assembly in our factory.
Ferrule: 00TF0
Fitting: According to customers' request. Most of them use JIC Female thread.
Material 1: carbon steel with zinc plated
Material 2: carbon steel with nickel alloy plated
Material 3: SS304 / SS316
Application
High temperature hydraulic, pneumatic and chemical delivery hoses for rubber, automotive, machine tools, shipbuilding, electromechanical, diesel, pressure control, paper and printing industries. For liqids, gases and highly corrosive media with laternating hot and cold heat, it has better performance and longevity than other hoses.
-Flamethrower
-Air Compressor
