Paishun - ISO7241A BSP and NPT Hydraulic Quick Connect Hose Coupling Quick Coupling
Several tests prove that our Rubber hoses is a kind of product combining aesthetics, functions, and practicality. With its characteristics, it is able to be used in the application field(s) of Other Hydraulic Parts and so on. Customers can be worry-free because the tests prove that the product is stable and excellent when being used in those fields. The product is endowed with stable and multi-functional performance. It is mainly used in the application field(s) of Other Hydraulic Parts. Hangzhou Paishun Rubber & Plastic Co., Ltd will provide high-quality services, and bring customers a better experience. In this way, the company can continue to strengthen its future strength in technological innovation and strive to create complete products Ecological chain.
| Condition: | New | Warranty: | 1.5 years |
| Showroom Location: | None | Type: | Fittings |
| Brand Name: | PAISHUN | Place of Origin: | Zhejiang, China |
| Material: | Carbon Steel | Surface: | Zinc-Chromate plated |
| Standard: | ISO7241-1A | Size: | 1/4" to 2" |
| After Warranty Service: | Video technical support, Online support, Spare parts | Local Service Location: | None |
| After-sales Service Provided: | Online support, Video technical support, Free spare parts |

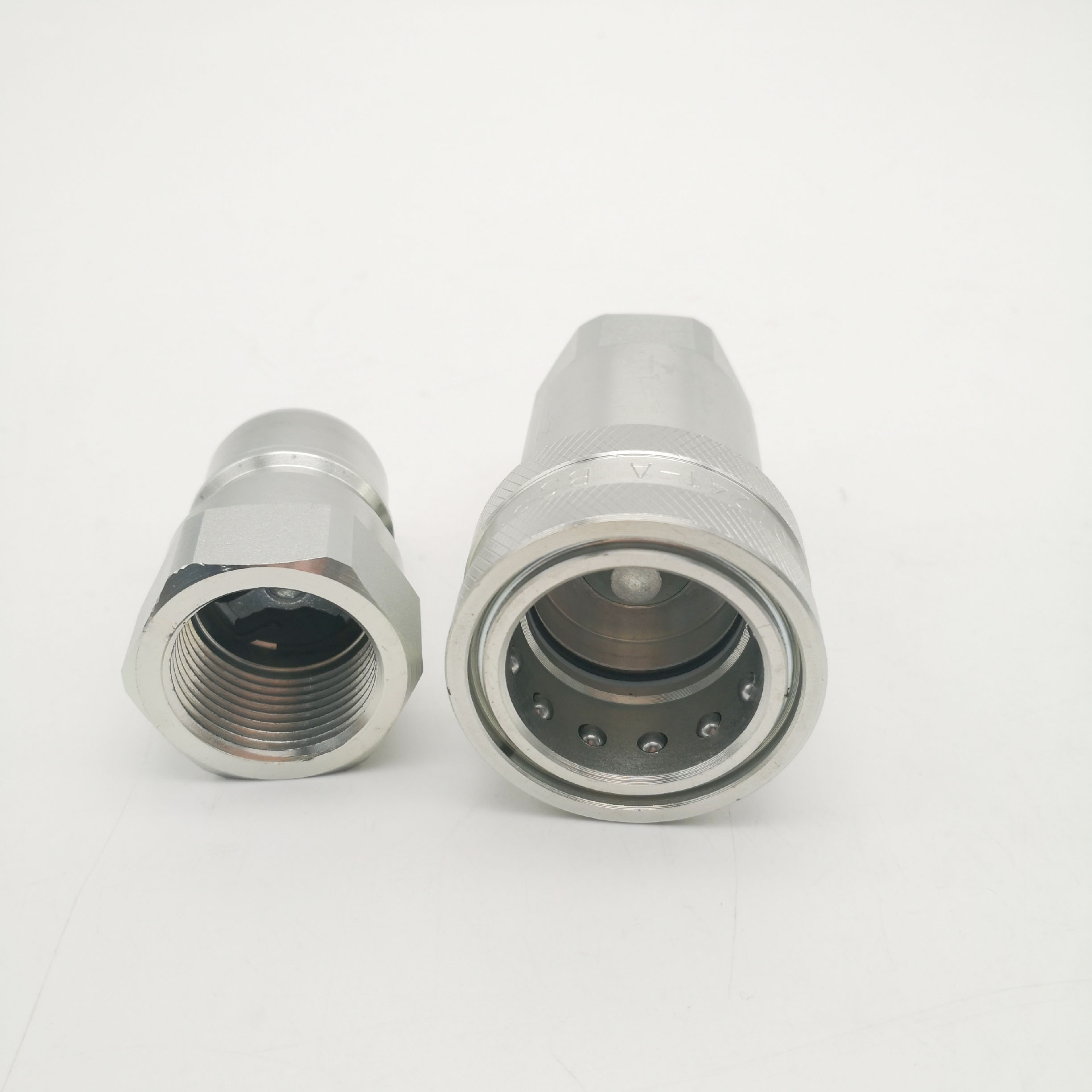

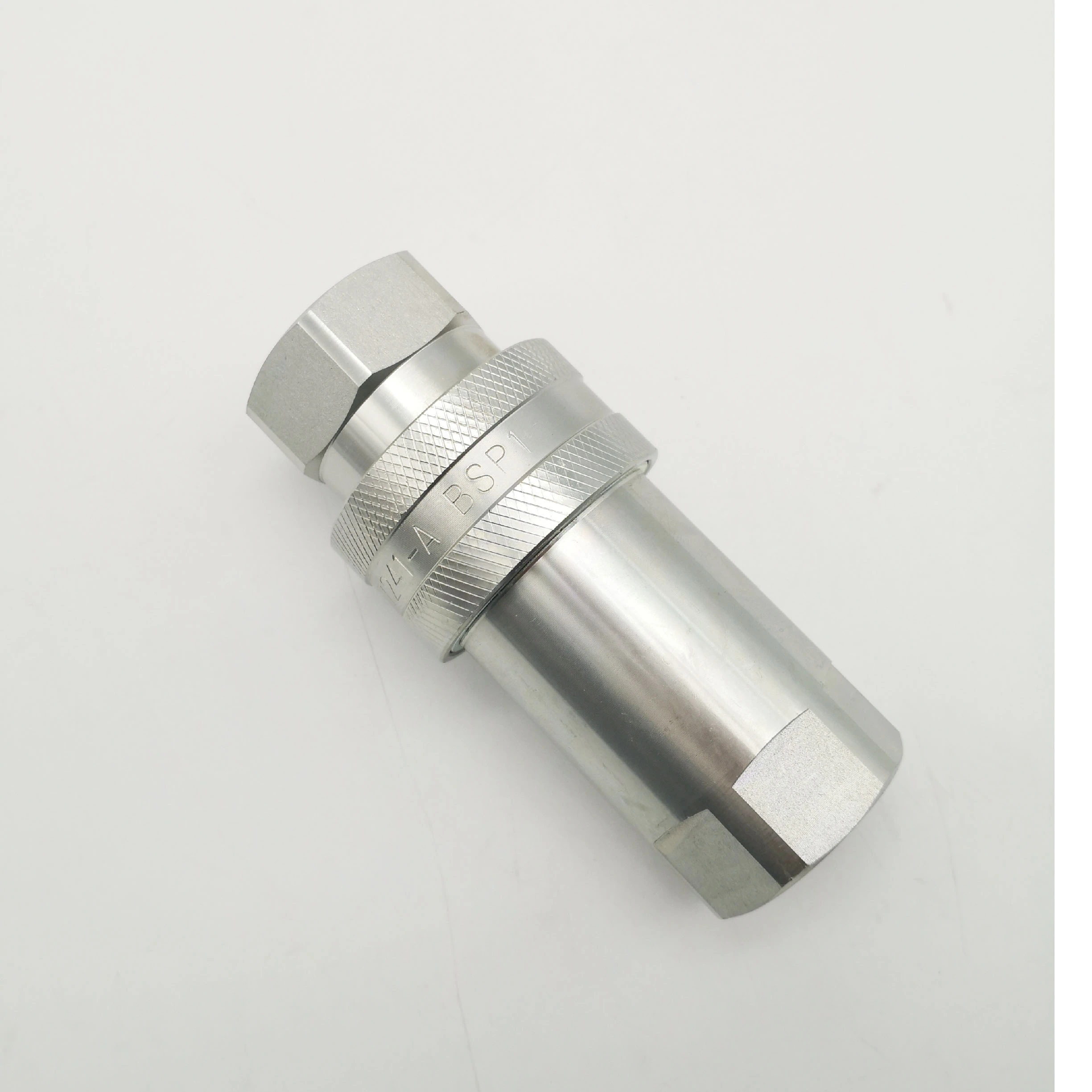

ISO7241A BSP and NPT Hydraulic Quick Connect Hose Coupling
1 Application: Mainly used for construction equipment, hydraulic machinery, oil euipment and other hydraulic applications.
2 Material of Female Socket: Zinc- Chromate plated Steel
Material of Male Plug: Zinc- Chromate plated Steel
3 Advantage: Critical Parts are hardened for durability.
Poppet valves are available to prevent uncoupled leakage.
Poppet valves open automatically when coupled within rated working pressure to keep the flow expeditely.
4 Sizes: NPT 1/4, 3/8, 1/2, 3/4, 1. It's OK to order Female Socket and Male Plug together or seperately.
5 Standard: ISO7241-1 Series A
Specification:
| Part Numbers | Description | Operating Pressure | NFPA Rated Flow | |||||
| complete coupler | female body half | male body half | body size | thread size and description | maximum | |||
| PSI | BAR | GPM | LPM | |||||
| H001-02F | H001-02SF | H001-02PF | 1/4" | 1/4" Female Pipe | 5000 | 345 | 3 | 12 |
| H001-03F | H001-03SF | H001-03PF | 3/8" | 3/8" Female Pipe | 4500 | 310 | 6 | 23 |
| H001-04F | H001-04SF | H001-04PF | 1/2" | 1/2" Female Pipe | 4000 | 276 | 12 | 45 |
| H001-06F | H001-06SF | H001-06PF | 3/4" | 3/4" Female Pipe | 4000 | 276 | 28 | 106 |
| H001-08F | H001-08SF | H001-08PF | 1" | 1" Female Pipe | 4000 | 276 | 50 | 189 |
