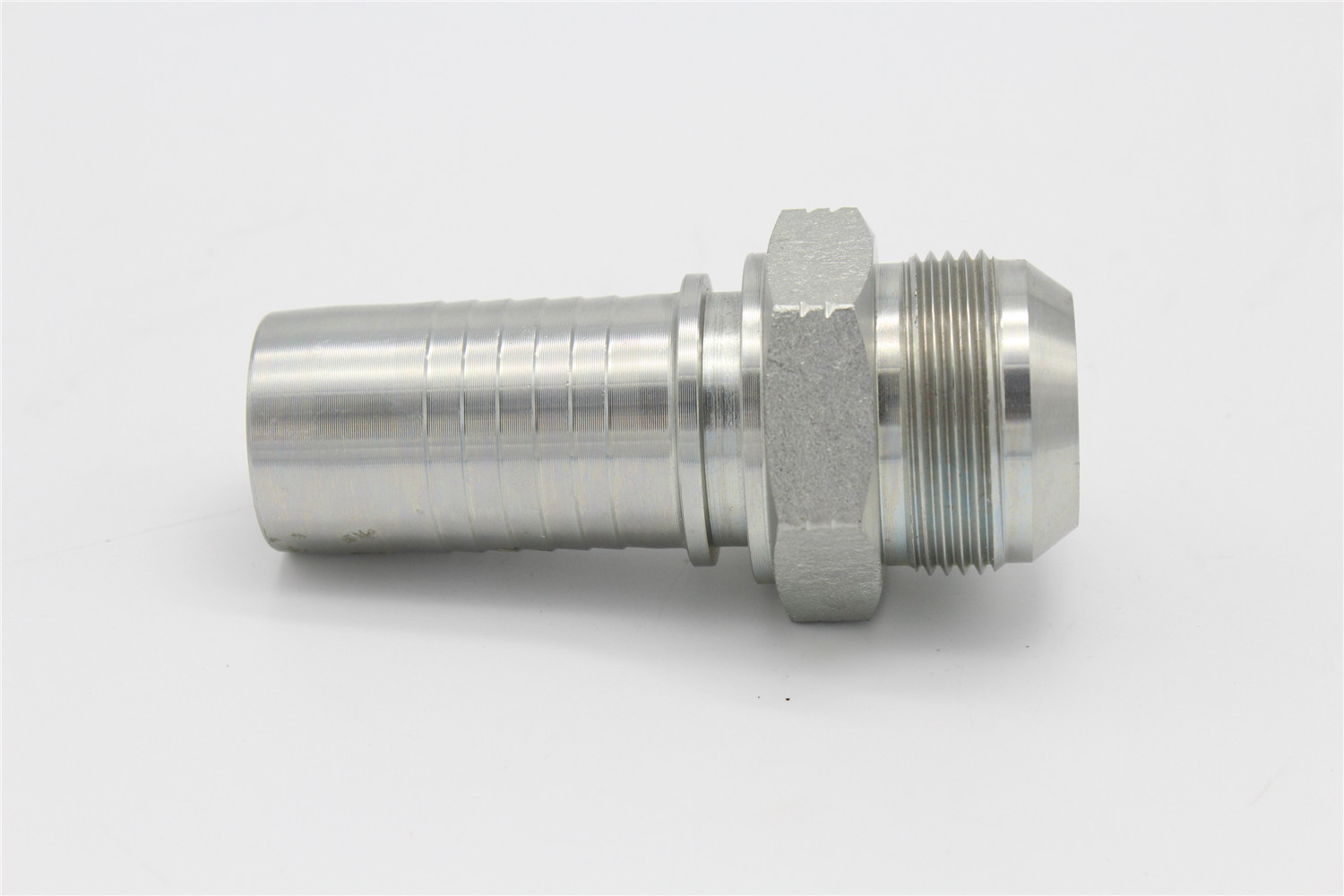

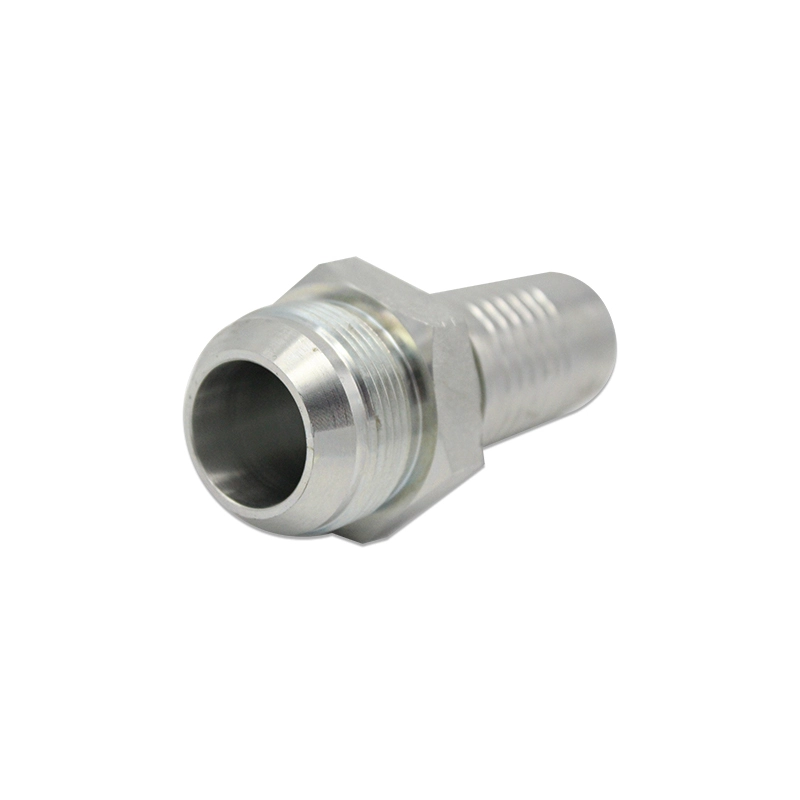

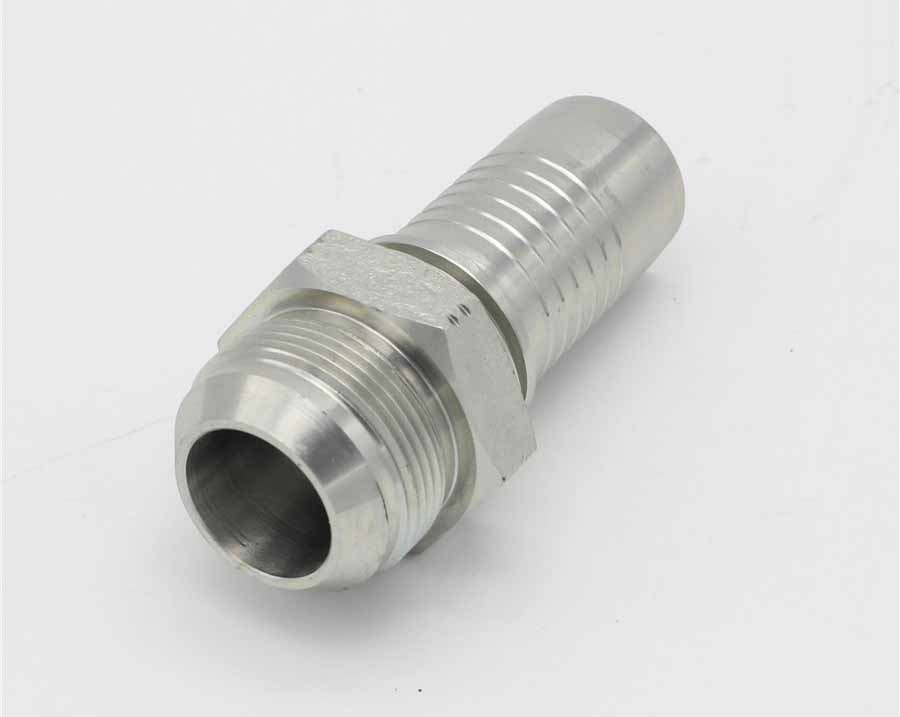

Paishun - (16711) Two Pieces Style Crimp JIC Male High Pressure Hydraulic Hose Fittings JIC 74 degree Cone Seal

Hangzhou Paishun Rubber & Plastic Co., Ltd is considered one of the leading suppliers of (16711) Two Pieces Style Crimp JIC Male High Pressure Hydraulic Hose Fittings. After (16711) Two Pieces Style Crimp JIC Male High Pressure Hydraulic Hose Fittings launching into the market, we have gained a lot of support and praise. Most customers think that this kind of products are in line with their expectations in terms of appearance and performance. Hangzhou Paishun Rubber & Plastic Co., Ltd will continue to adopt scientific and advanced marketing strategies to focus on market expansion, forming a complete sales network across the world. Moreover, we will pay more attention to the talents gathering, ensuring innovative and competitive wisdom is distilled for the long-term development of our company.

Product Description

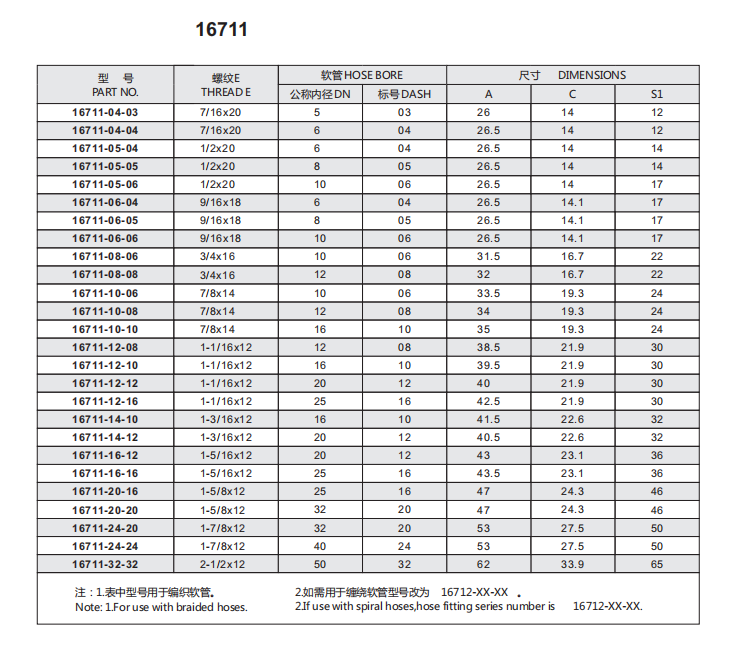

Part Number	16711
Thread	JIC Male 74 Degree Cone
Material	Carbon Steel # 45 / Stainless Steel 304 / Stainless Steel 316
Surface	Zinc Plated with cr+3
Standard	Yonghua
Test	Salt Spray 96 hours to 120 hours

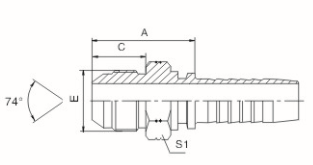

JIC MALE 74 DEGREE CONE

Detailed Images

Related Products

Workshop

               Projection Test

It can efficiently test the surface shape and contour of various complicated fittings.

Salt Spray Test

All our Fittings have the surface treated by galvanic zinc coating with a thick chromate passivation ( Chromium III) and sealing
(Fe/Zn12/AT2 according to EN ISO 2081). 96 hours to 164 hours salt spray test.

Packing&Shipping

All fittings are packed in good quality strong cartons ( 5 layers corrugated) with a plastic sheet inside for protection.

In order to guarantee that even in worst sea / maritime weather/transport conditions, the fittings shall arrive at the final
destination in perfect condition without corrosion caused by sea salt and humidity.

Packing Size and Style

Usually 80 corragetd cartons are packed in a wooden case.

Surely we can customize the measure according to your request.

Size	Length	Width	Height
carton	24cm	15cm	15cm
wooden case	110	80	75

Paishun Can quote you EXW, FOB, CNF, CIF, DDU price based on the experienced shipment team.

If you need the goods urgently, ship
by express is a good way. Paishun cooperates with over 5 express agents, who can get discounts from DHL, FedEx, UPS, TNT or some
special line to your door. Express cost is much lower than regular charges. Goods can be sent to your door dicrectly.

If your goods is not small, and also want to get the goods quickly. A good way is to ship by air. Paishun can ship the goods from
air port in Hangzhou or Shanghai, etc.Goods can be sent to the nearest air port of your city.

If you don't need the goods in a hurry, a good way is to ship by sea. Shipment cost is much lower. Paishun can ship from Ningbo Port, Shanghai Port, Lianyungang Port or other ports as your request. Goods can be sent to the nearest sea port of your city.

Paishun has been cooperating with some professional forwarders for over 10 years. Here are some well-known ship companies that the forwarders cooperates to each continents. South Ametrican route: MSK, MCC, MSC, EMC, COSCO, CMA, WHL East / American west route: COSCO, APL,PIL, HMM, MSK, CMA, MOL, MSC, WHL, YML Japan / Korea route: SNL, COSCO, KMTC, MOL, PIL West / Southern Africa route: MSK, MSC, EMC, RCL, WHL,PIL, KMTC, HDS, KLINE, HPL,CMA European route: MSK, EMC, MCC, MSC, NYK, PIL, HPL, YML, COSCO, CMA, MOL Southeast Asia route: MSK, EMC, PIL, MOL, MSC, MCC, NYK, YML, COSCO, HMM, CMA Australia, New Zealand route: COSCO, HMM, PIL, OOCL, KLINE, CMA

The goods also can sent to your other suppliers in China to make full container, or send to your agents in Yiwu, Guangzhou, Suifenhe, etc.

Application

Hydraulic hose fitting is widely used in the hydraulic and fluid conveying ststem of machinery, oilfield, mine, building,
transportation and other industries.
