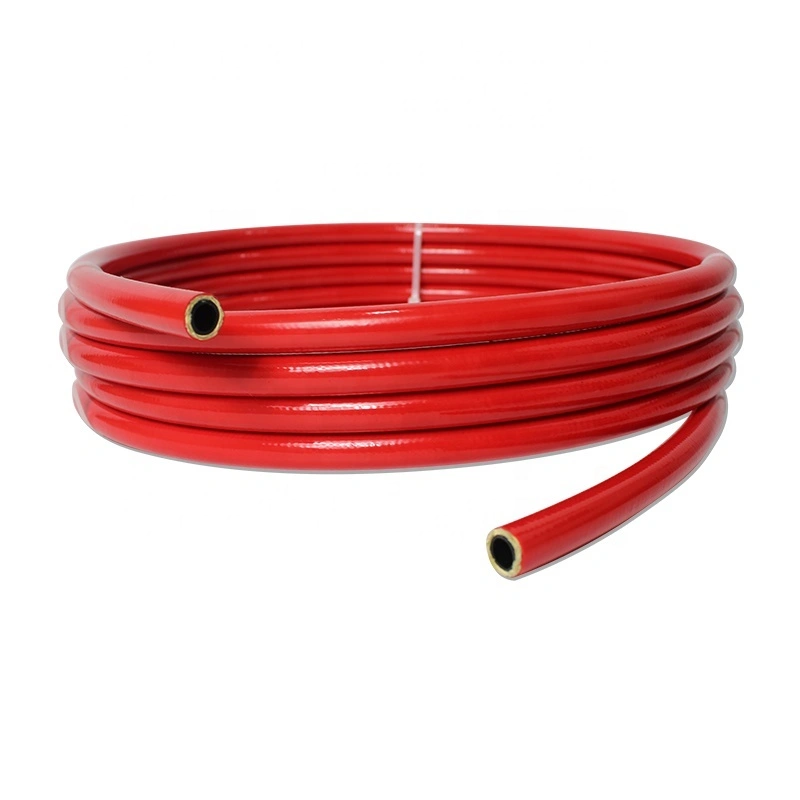

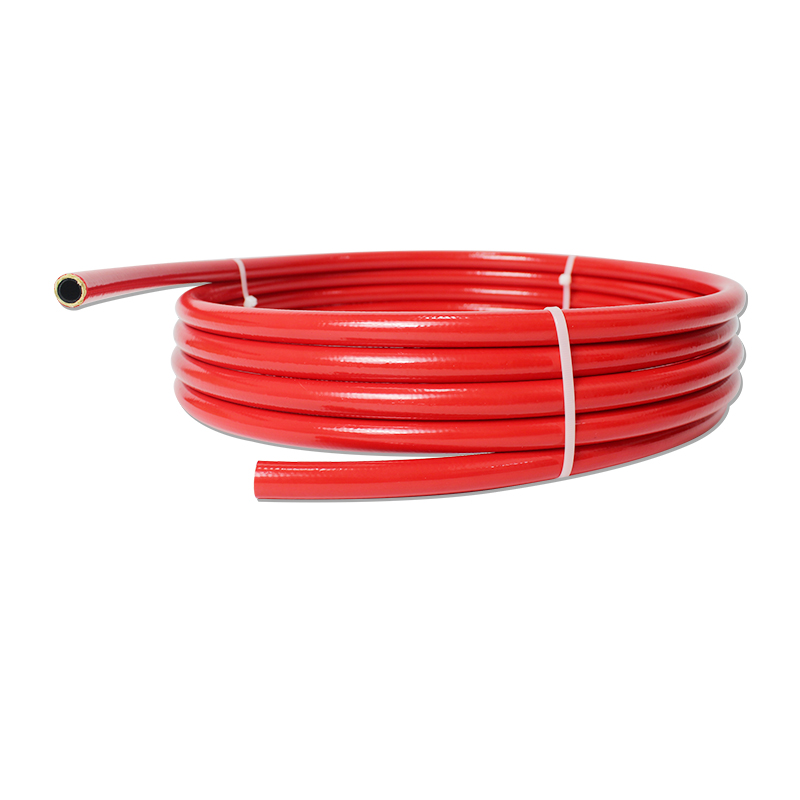

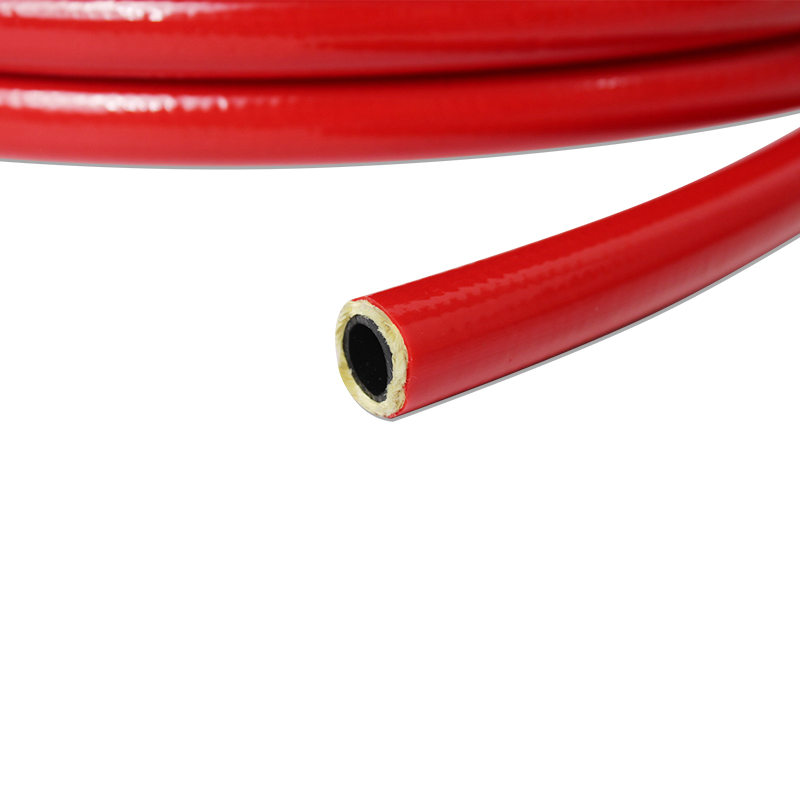

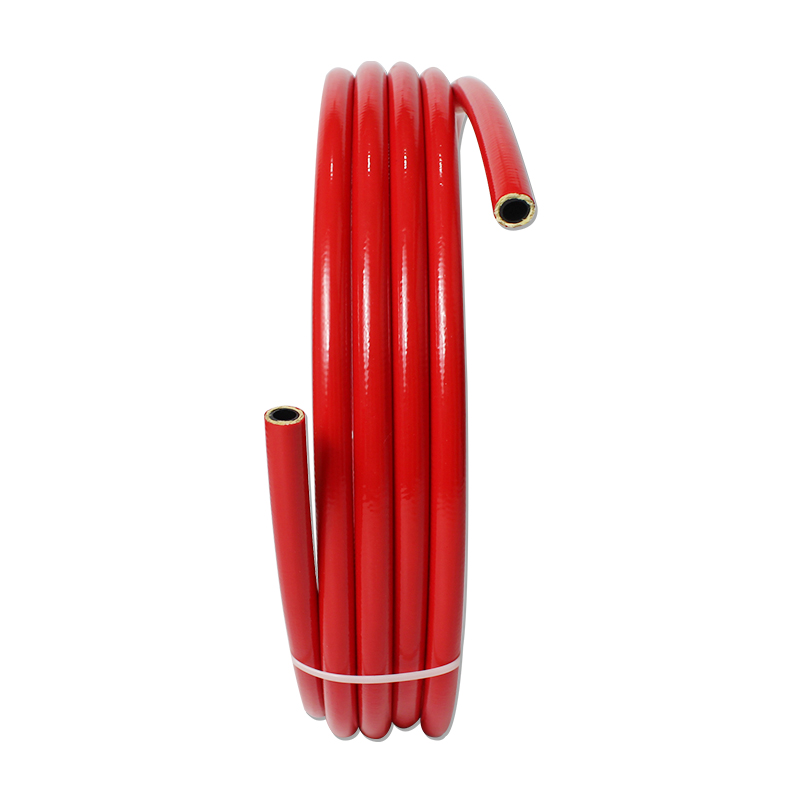

Paishun - Electrically Conductive Compressed Gas CNG Transfer Hose Pipe 350 bar Plastic Hose
In order to better adapt to the diversified needs of customers,Hangzhou Paishun Rubber & Plastic Co., Ltd has been working hard to develop products. Our Electrically Conductive Compressed Gas CNG Transfer Hose Pipe 350 bar raw material is pure and high quality providing best results and longer support throughout your use. Our goal is to exceed the quality expectations of our customers. This commitment starts with the top-level management and extends through the entire enterprise. This can be achieved through innovation, technical excellence, and continuous improvement. In this way, Hangzhou Paishun Rubber & Plastic Co., Ltd firmly believe that we will satisfy the growing needs of every customer.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | 1/4" | Material: | PA |
| Specification: | 1/4" | Length: | 1meters, 1 rolls |
| Processing Service: | Cutting, crimping | Color: | Red |
| Inner Tube: | Conductive Nylon | Reinforcement: | Braided Fibers |
| Outer Tube: | Polyurethane (PU) | Working Pressure: | 350bar |
| Inner Diameter: | 6.5mm | Outer Diameter: | 14mm |
| Min Bend Radius: | 51mm | Operation Temperature: | -30℃ to 100℃ |
| Safety Factor: | 4:1 |
Electrically Conductive Compressed Gas CNG Transfer Hose Pipe 350 bar
CNG hose incorporated with steel wire is a general hose, what about the hose embedded with aramid fibers?
Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is
guaranteed.
Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in LPG stations.
Specifications | I.D. (inch) | O.D. (mm) | Service Pressure (mpa) | Min Bend Radius (mm) |
CNGG-6 | 1/4" | 14.0 | 35 | 51 |
CNGG-10 | 3/8" | 16.5 | 35 | 76 |
CNGG-13 | 1/2" | 12.5 | 35 | 102 |
CNGG-19 | 3/4" | 19 | 35 | 191 |
CNGG-25 | 1" | 25 | 35 | 254 |
