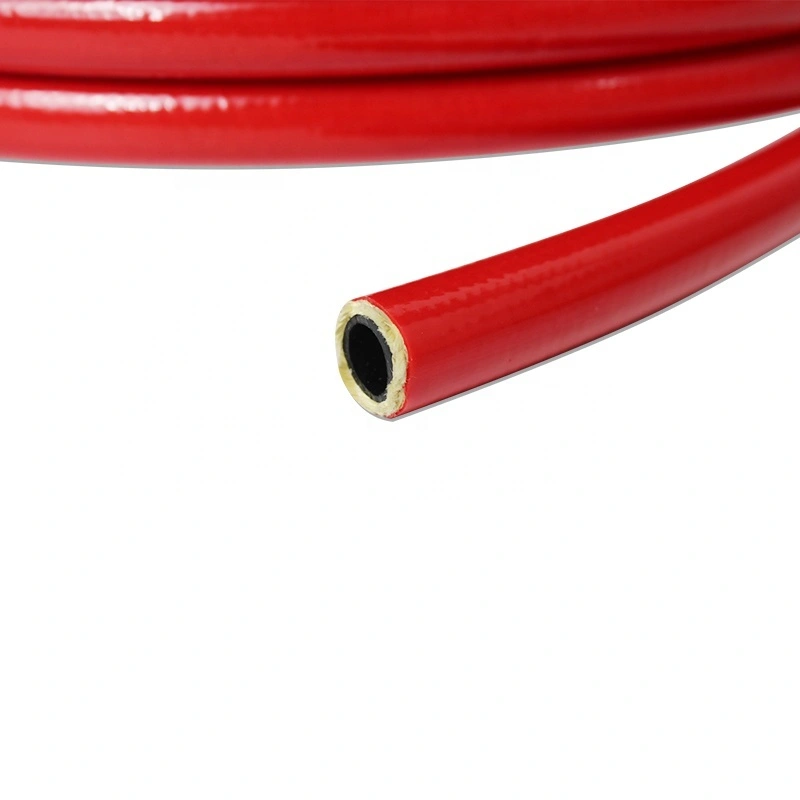

Paishun - Compressed Gas Hose Electrically Conductive 350 MPa for Gas Vehicles Plastic Hose
Hangzhou Paishun Rubber & Plastic Co., Ltd actively absorb the advanced manufacturing technology and production technology of excellent domestic and foreign companies, and successfully develop Compressed Gas Hose Electrically Conductive 350 MPa for Gas Vehicles using new technology and new technology. Technological innovation is the cornerstone of product quality. In the future,Hangzhou Paishun Rubber & Plastic Co., Ltd will open up channels for introducing talents, and improve technological innovation capabilities by introducing more outstanding talents as intellectual support, so as to achieve better and faster development.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSION |
| Model Number: | 1/4" | Material: | PA |
| Specification: | 1/4" | Length: | 1meters, 1 rolls |
| Processing Service: | Cutting, crimping | Color: | Red |
| Inner Tube: | Nylon (PA) | Reinforcement: | Braided Fibers |
| Outer Tube: | Polyurethane (PU) | Working Pressure: | 350bar |
| Inner Diameter: | 6.5mm | Outer Diameter: | 14mm |
| Min Bend Radius: | 51mm | Operation Temperature: | -30℃ to 100℃ |
| Safety Factor: | 4:1 |
Nylon Material High Pressure Flexible CNG Hose 350 Bar for CNG Gas Dispensers
CNG hose incorporated with steel wire is a general hose, what about the hose embedded with aramid fibers?
Comparing with the general type, the CNG hose with aramid fibers is more flexible, more easy to handle, high pressure is
guaranteed.
Without steel wire, the hose can still keep anti-static, because we use a " conductive " material to produce the inner tube. It is safe when being used in LPG stations.
Specifications | I.D. (inch) | O.D. (mm) | Service Pressure (mpa) | Min Bend Radius (mm) |
CNGG-6 | 1/4" | 14.0 | 35 | 51 |
CNGG-10 | 3/8" | 16.5 | 35 | 76 |
CNGG-13 | 1/2" | 12.5 | 35 | 102 |
CNGG-19 | 3/4" | 19 | 35 | 191 |
CNGG-25 | 1" | 25 | 35 | 254 |
TUV Certificate
RoHS
ISO Certificate
CE Certificate
MSHA Certificate 1
MSHA Certificate 2
Office Staffs
PAISHUN'S Workers
