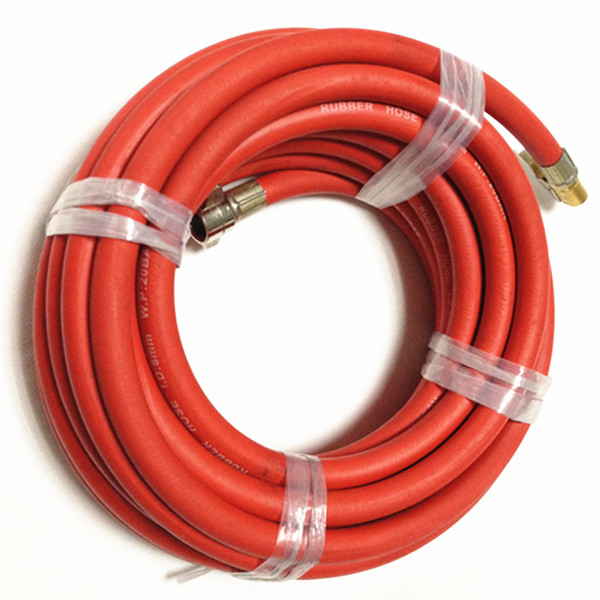

Paishun - EPDM 300 psi 8mm Car Tyre Inflator Replacement Hose with M16 X1.5 Valve Air Fluid Hose Assembly
Everyone needs EPDM 300 psi 8mm Car Tyre Inflator Replacement Hose with M16 X1.5 Valve, and we can offer you the best quality product of the world. It turns out that the application of the technology plays an important role in deciding the performance of the product. At present, it can be widely seen in the field(s) of Rubber Hoses. Thanks to the multiple characteristics that have been tested by our QC inspectors,Rubber hoses has a wide application in different fields mainly including Air Fluid Hose Assembly.We hold a firm belief that the broad application of the product will drive the industry to develop and advance rapidly.
| Place of Origin: | Zhejiang, China, Hangzhou China (Mainland) | Brand Name: | PAISHUN |
| Model Number: | Inflater Air Hose | Processing Service: | Cutting |
| Color: | red, black or as requested | Product Name: | Fiber Braided 5/16 Inch Car Tyre Inflator Hose with M16X1.5 Valve |
| Size: | 5/16" | Feature: | Light, durable, flexible, soft, weather/oil/c |
| Length: | 10m, 15m or as requested | Outer Shape: | Smooth Surface |
| Thickness: | 3mm, 3.5mm, 4mm | Keywords: | Car Tyre Inflator Hose |
| Application: | Air Transfer |
Flexible Fiber Braided 5/16 Inch Car Tyre Inflator Hose with M16X1.5 Valve
Rubber Air Inflater Hose Assembly
Construction: Tube: NR& SBR synthetic rubber.
Reinforcement: High tensile polyester fiber braided.
Cover: NR & SBR ynthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, Red, Blue etc.
Application: Mainly used for conveying of air, insert gas, construction, engineering, shipbuilding, steel production etc.
Standard length: 8m,10m,12m,15m, 20m
Specification of hose:
| Item code | Inner Diameter |
Outer Diameter |
Working Pressure | Burst Pressure | Length | Weight | |||
| / | inch | mm | mm | bar | psi | bar | psi | m/pc | kg/pc |
| PAI-04-01 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 10 | 1.8 |
| PAI-04-02 | 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 20 | 3.5 |
| PAI-05-01 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 10 | 2.3 |
| PAI-05-02 | 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 20 | 4.5 |
| PAI-06-01 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 10 |
2.8 |
| PAI-06-02 | 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 20 | 5.4 |
Specification of Fittings:

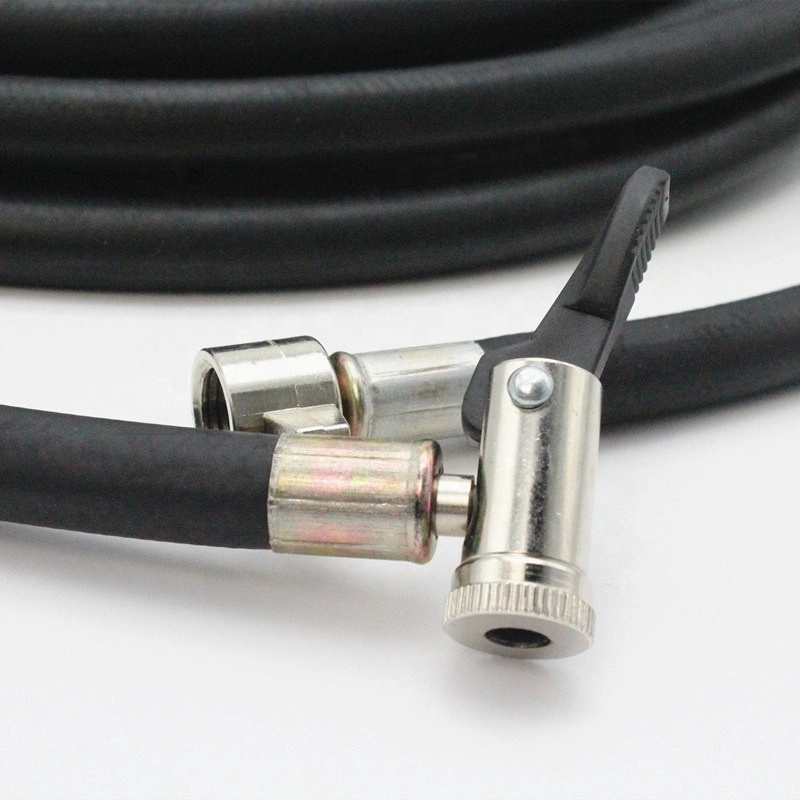

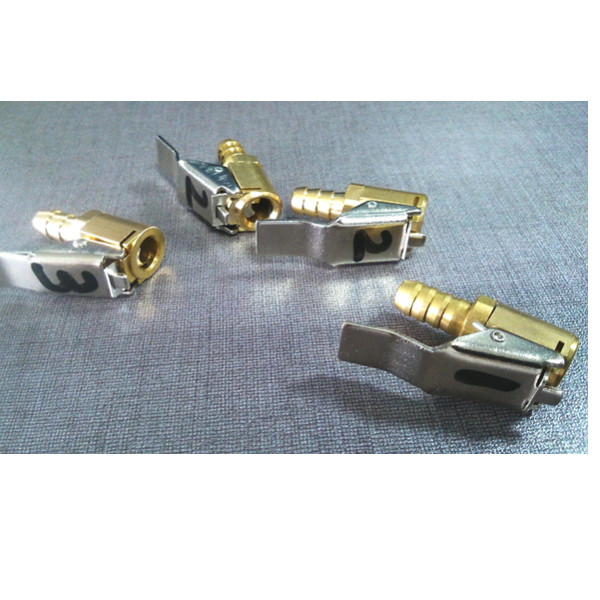

* Euro style long bard clip on tyre inflator (one side) +screw on m16 x 1.5mm test point adaptor valve (other side).
