PASSIONHOSE - SAE R14 Hydraulic PTFE Hose 3/8 inch 304 Stainless Steel Braid PTFE Hose ss ptfe hose
We provide SAE R14 Hydraulic PTFE Hose 3/8 inch 304 Stainless Steel Braid PTFE Hose that withstand latest industrial demands and meet highest quality and safety measure to ensure long lasting support, durability and efficient performance. These are used in daily routine productions and manufacturing and is a need for all industries.
Hangzhou Paishun Rubber & Plastic Co., Ltd summarizes the defects of past products, and continuously improves them. Processed by elaborate craft, the appearance of SAE R14 Hydraulic PTFE Hose 3/8 inch 304 Stainless Steel Braid PTFE Hose is vivid. We offer a range of design services to help you get exactly what you want.
| Place of Origin: | Zhejiang, China | Brand Name: | PASSIONHOSE |
| Model Number: | PS-08 | Material: | PTFE |
| Specification: | 3/8" | Length: | 50 to 100m |
| Thickness: | 0.85mm | Standard: | SAE100 R14 |
| Working Pressure: | 162 bar | Burst Pressure: | 540 bar |
| Performance: | Excellent high Temperature & corrosion resistance | Outer layer: | 304 /316 stainless steel braided |
| Packing: | Poly stripes | Temperature Range: | -60 ℃ ~ +260 ℃ |
| Inner tube: | Smooth bore PTFE |
SAE100 R14 Hydraulic PTFE Hose 3/8 inch 304 Stainless Steel Braid PTFE Hose
Detail Information of Product
| Name | SAE 100R14 |
| Size | 3/8" |
| Inner Tube | Nylon |
| Reinforcement | AISI 304 stainless steel single wire braid |
| Cover Compound | SS304 Braided |
| Temperature Range | -50℃ to +200℃ (Domestic Material) -50℃ to +260℃ (Imported Material) |
| Application | Because of the wide temperature range, it can be used for water base, petroleum base hydraulic fluids, corrosive, food liquids, and high temperature gases and liquids. |
| Certification | CE approved |
| Capability | Oil resistant, wear resistant, anti-aging. |
| OEM Accepted | Yes |
| Fitting | We can provide as your requirement. |
| Printing Word | We can print LOGO or something else as your requirement. |
| Packaging Detail | We pack the goods with poly stripes or as your request. |
| Delivery | According to your quantity, about 30 days for a 20' container. |
Specification of Product
Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Weight | |
inch | mm | mm | bar | bar | m | kg/m |
1/8" | 3.2 | 6.5 | 314 | 1080 | 100 | 0.07 |
3/16" | 4.8 | 7.7 | 256 | 725 | 100 | 0.09 |
1/4" | 6.4 | 9.3 | 232 | 680 | 100 | 0.11 |
5/16" | 7.9 | 10.8 | 194 | 620 | 100 | 0.15 |
3/8" | 9.5 | 12.7 | 162 | 540 | 100 | 0.17 |
1/2" | 12.7 | 16.3 | 90 | 360 | 100 | 0.31 |
5/8" | 15.9 | 19.3 | 80 | 250 | 50 | 0.47 |
3/4" | 19 | 22.3 | 70 | 223 | 50 | 0.57 |
7/8" | 22.2 | 26.2 | 60 | 210 | 50 | 0.7 |
1" | 25.4 | 29.8 | 40 | 195 | 50 | 0.8 |

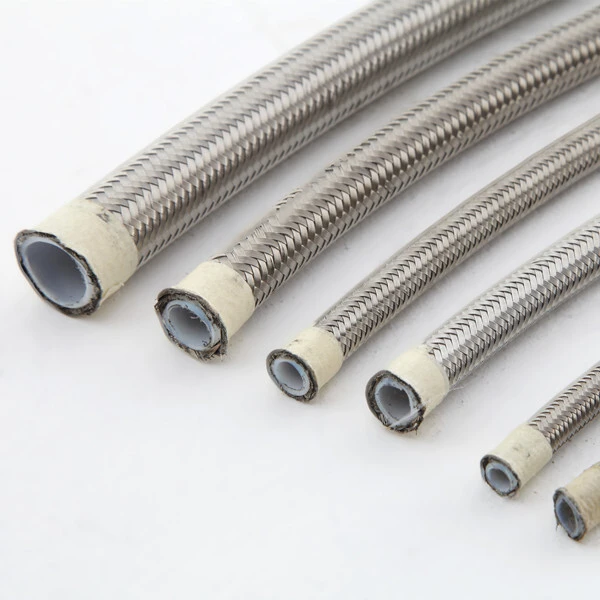

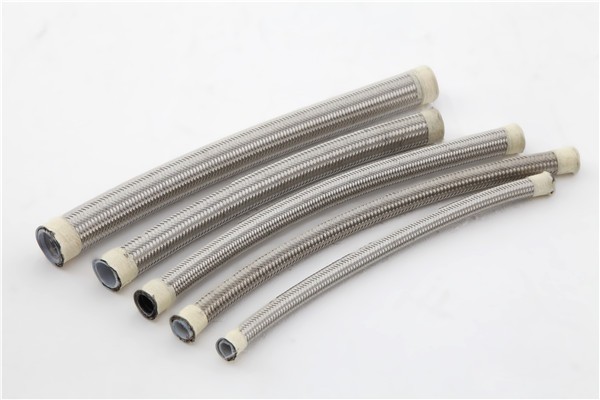

Picture of Product
Packaging
Well packed by poly stripes or according to your requirement.
Shipping
We ship the goods by express, by air, by sea or according to your requirement.
1. We can provide matching hose connection.
2. We can provide free hose sample.
3. Hydraulic rubber hose is also served.
4. Other sizes can be customized.
5. We can print words on the hose according to your requirement.
6. We can package the goods according to your requirement.
