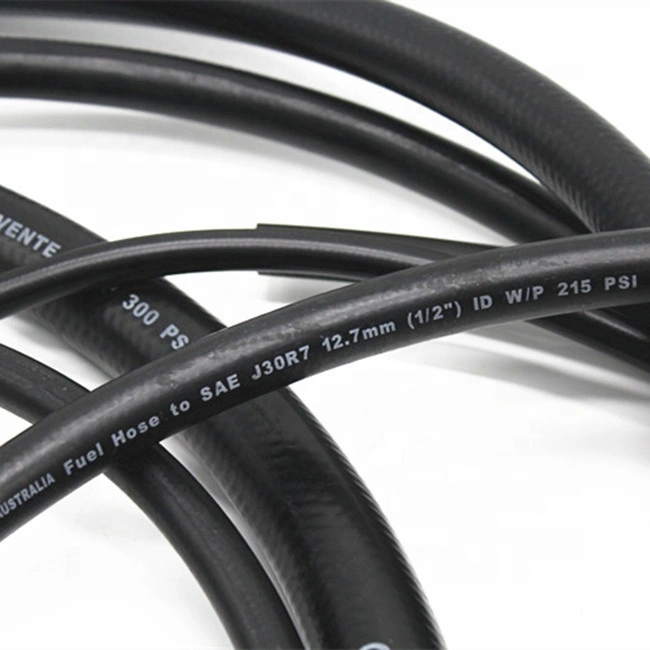

Paishun - Middle Pressure Flexible Diesel Hose Fuel Oil Line Oil Hose Pipe 20 Bar Gasoline Fuel Oil Hose

While Hangzhou Paishun Rubber & Plastic Co., Ltd consciously carrying out personnel training and technological innovation, it also continuously strengthens external communication and exchanges to improve its own competitiveness. After the Middle Pressure Flexible Diesel Hose Fuel Oil Line Oil Hose Pipe 20 Bar was launched, we received good feedback, and our customers believed that this type of product could meet their own needs. Paishun is a solution for all your buying needs. We can offer you the prices that you need and quality that is good for you.

Hose Description

Construction:
Tube: Nitrile Rubber
Reinforcement: High tensile polyester fiber braided.
Cover: Nitrile Rubber

Temperature: -30℃ to +100℃

Color: Black, Red, Blue etc.

Application: Mainly used for circulating petrol and kerosene, or the oil products with contents of aromatic substances etc.
Standard length: 50m, 100m.

Specifications

Inner Diameter			Outer Diameter	Working Pressure	Burst Pressure	Length	Measurement	Weight
inch	mm	mm	bar	bar	m	cbm/roll	kg/m
3/16"	5	11.5	20	60	100	0.028	0.15
1/4"	6	13	20	60	100	0.031	0.17
5/16"	8	15	20	60	100	0.0353	0.216
3/8"	10	17	20	60	100	0.0442	0.24
1/2"	12.7	22	20	60	100	0.0756	0.428
5/8"	16	25	20	60	50	0.0329	0.40
3/4"	19	29	20	60	50	0.0572	0.60
1"	25	36	20	60	50	0.099	0.84
1-1/4"	32	43	10	30	50	0.170	1.20
1-1/2"	38	50	10	30	50	0.190	1.39
2"	51	65	10	30	50	0.410	1.80

Certifications

TUV Certificate

RoHS

ISO Certificate

CE Certificate

MSHA Certificate 1

MSHA Certificate 2

Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.
