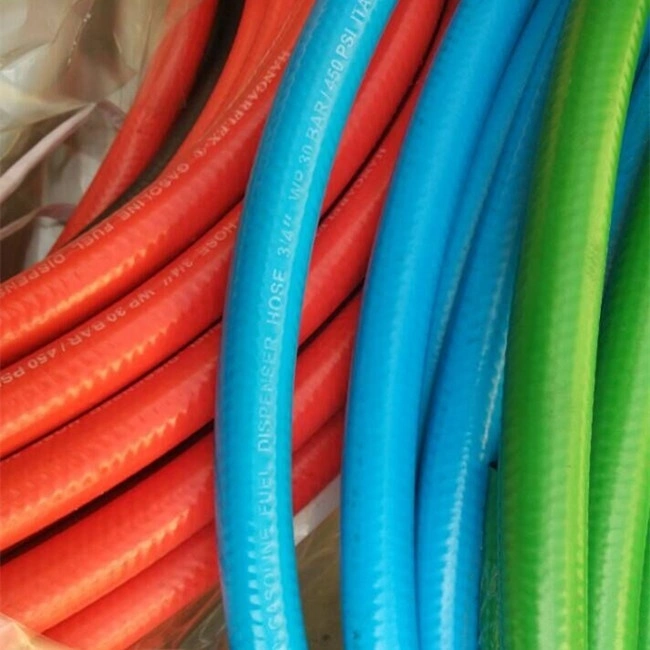

Paishun - Steel Wire Reinforced 3/4 inch 19mm Flexible Color Gas Station Hose Gasoline Fuel Oil Hose

In the fierce market competition, Hangzhou Paishun Rubber & Plastic Co., Ltd has grown continuously. We invest in R&D to find better solutions in the Rubber Hoses industry. It is designed to cater to the changing demands and requisites of customers. In the future, Hangzhou Paishun Rubber & Plastic Co., Ltd will focus on technological innovation, continuously improve service quality and develop better products, and is committed to providing customers with products and services that exceed expectations.

Fuel Dispenser Hose Description

Product Introduction

Structure-

Tube: NBR
Reinforcement: Single High-strength wire braided.
Cover: NBR/PVC blend rubber.
Temperature: -40℃ to +80℃
Color:Black, Blue, Red and Green etc
Application:For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated
compounds), lubricating oil, and other mineral oil etc.
Standard length: Random length between 30m-60m

Specifications

Item code	Inner Diameter			Outer Diameter	Working Pressure			Burst Pressure		Weight	Weight
/	inch	mm	mm	bar	psi	bar	psi	kg/m
HPR-1	5/8"	15.9	25.4	30	450	120	1740	0.57
HPR-2	3/4"	19	28	30	450	120	1740	0.65
HPR-3	1"	25	35.5	30	450	120	1740	0.82

Hose Features

Compatible with fuels: Gasoline, Diesel, E10, B20, E55, E85.
Available in Finish Smooth.
Anti-Static.
High NBR Rubber Content: 42% for both tube & cover of black hose; 44% of
color hose.
Clear Printings on Hose.
Transparent & Non-transparent package is Available.
PASSION ® Brand or Client’s Customized Brand.
Available in Bulk or in Assemblies.
Temperature Resist: -40℃ to +80℃.
Colors Available: black, blue, green, red and yellow.

Hose Benefits

Flexible, Soft, Light-Weight. Excellent Aging Resistance, Ozone Resistance. Checking Every Meter of Hose During Production, Once Unqualified Part on Hose are Found, This Part will be Cut and not Sent to Clients. Complete Test Process & Equipment . Stable Hose Quality. Smooth, Flat and Nice Appearance.

Hose Assembly

Length of Hose Assembly	4meters, 4.5meters, 6meters, 8meters......
Couplings Material	Brass chrome plated material.
Type	Rotate / Non-Rotate.
Thread	NPT, BSP, BSPT.
