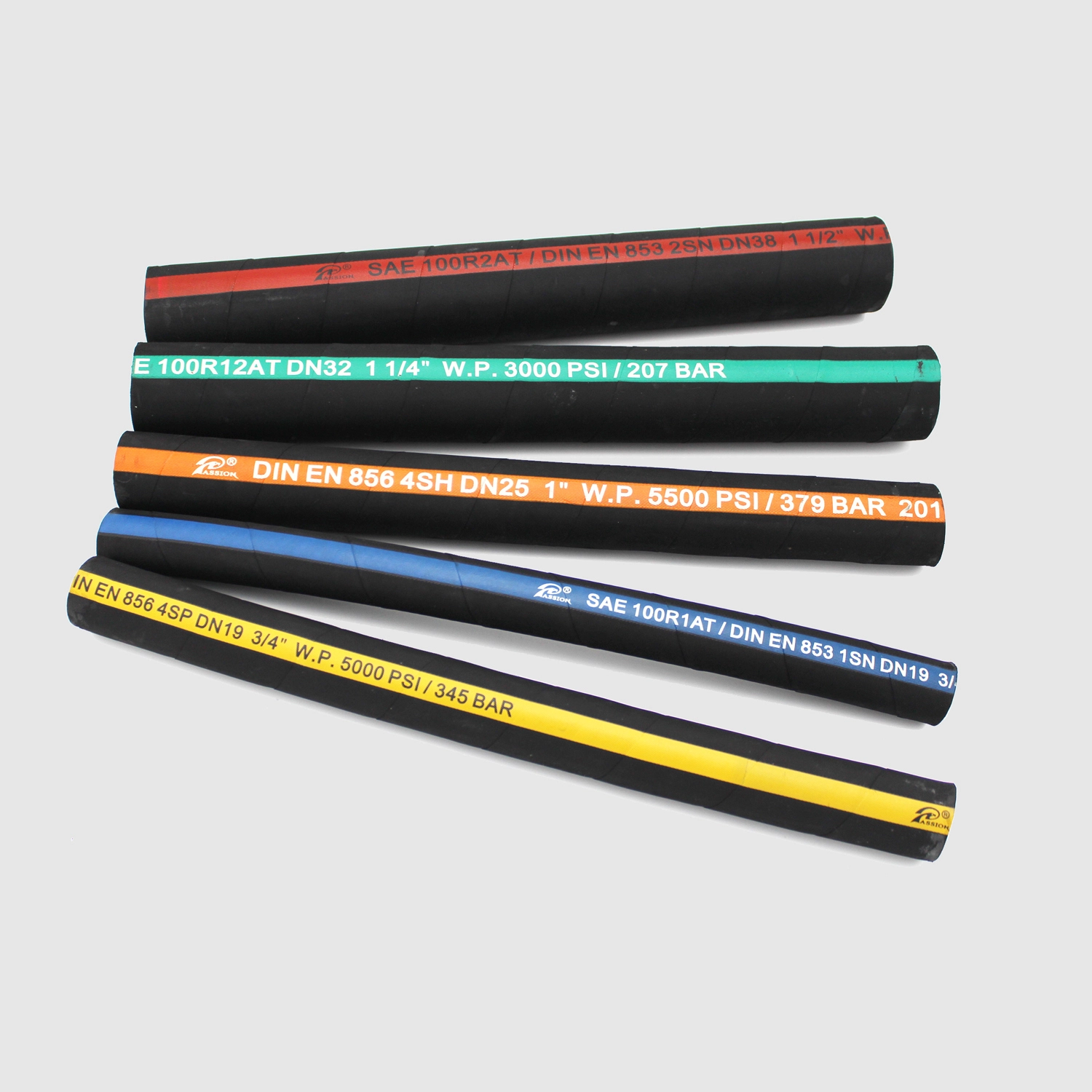

Paishun - High Flexibility Low Weight Hydraulic Hose 1sn 2sn for Tractors SAE 100R2 EN853 2SN

Hangzhou Paishun Rubber & Plastic Co., Ltd has been focusing on improving technologies to develop new products on a regular basis. We have successfully made High Flexibility Low Weight Hydraulic Hose 1sn 2sn for Tractors launch to the public as scheduled. With its new features, Rubber hoses is expected to lead the industry trend. High Flexibility Low Weight Hydraulic Hose 1sn 2sn for Tractors enables the company to have more market share, stronger competitiveness and higher visibility. Hangzhou Paishun Rubber & Plastic Co., Ltd always stick to the market-oriented business philosophy and regard 'honesty & sincerity' as the enterprise tenet. We are trying to establish a sound distribution network and aim to provide customers all over the world with the best services.

Why Choose Us

* Various colors.

* Free hose sample available.
* Words and your logo can be printed. OEM accepted.
* Strict quality control. Test the products before shipping out with the complete line of test machines.
* Customized hose accepted.
* Factory sale with lower prices.
* Solid construction
* Good service lifetime
* Increased working pressure
* Very flexible and light

Product Description

Product Detail
Name	Hydraulic Rubber Hose
Size	1/4" ~ 2"
Reinforcement	1 or 2 steel wire braid.
Temperature Range	-40ºC ~ +100ºC (-40ºF~ +212 ºF)
Application	High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based hydraulic fluids.
Certification	CE and ISO approved
Printing Word	We can print LOGO or as your requirement.
Packaging Detail	By poly stripes or as your request.
Delivery	About 28 days for a 20' container.

Product Specification
SAE 100R1AT / EN853 1SN
Part No.	SIZE	I.D	O.D	W.P	B.P	WEIGHT
	Part Number	inch	mm	mm	bar	bar	g/m
P04-1SN	1/4″	6.4	13.4	225	900	225
P05-1SN	5/16″	8	15.2	215	860	260
P06-1SN	3/8″	9.5	17.3	180	720	340
P08-1SN	1/2″	12.7	20.3	160	640	415
P10-1SN	5/8″	16	23.7	130	520	475
P12-1SN	3/4″	19	28	105	420	590
P16-1SN	1″	25.4	36.2	87	348	875
P20-1SN	1 1/4″	31.8	43	62	248	1205
P24-1SN	1 1/2″	38.1	49.2	50	200	1405
P32-1SN	2″	50.8	62.6	40	160	1910
SAE 100R2AT / EN853 2SN
Part No.	SIZE	I.D	O.D	W.P	B.P	WEIGHT
		inch	mm	mm	bar	bar	g/m
P04-2SN	1/4″	6.4	14.5	400	1600	380
P05-2SN	5/16″	8	16.7	350	1400	435
P06-2SN	3/8″	9.5	19.2	330	1320	550
P08-2SN	1/2″	12.7	21.8	275	1100	640
P10-2SN	5/8″	16	25.4	250	1000	750
P12-2SN	3/4″	19	29.9	215	850	925
P16-2SN	1″	25.4	37.8	165	650	1290
P20-2SN	1 1/4″	31.8	46.4	125	500	1895
P24-2SN	1 1/2″	38.1	52.7	90	360	2120
P32-2SN	2″	50.8	65.4	80	320	2765

Product Photo

Workshop

Production Line

Raw Materials

We only use new raw materials, none recycled materials at all.

The raw materials are bought from big group company such as China Petro and Sinopec.

Rubber Mixing Machines

We have our own rubber mixing machines, this makes us be able to do research and produce different types of hoses.

And keep a constant rubber sheet supplying.

Steel Wire Braiding Machine

Vulcanizing Boiler

Braiding Machine

Spiral Machine

Packaging

Test Machines

Impulse Testing Machine

Impulse Test

.

Burst Pressure Test

Abrasion Test

Wire Diameter

Test Table

Wire Kontting

Wire Kontting

Ozone Resistance

Rubber Sheet Thickness

Rubber Sheet Strength

Rubber Sheet Hardness

Vulcanizer

Exhaustion Test

Aging Test

Exhibition

Packing

We do various types of packing. Such as poly stripes, carton boxes, pallets, reels.

Shipping

We ship the goods by express, by air, by sea or according to your requirement.

Exhibition

More of Paishun

Paishun Sales Network

We have a wide range of global market. Our rubber hoses and hose assemblies are exported to USA, Canada, UK, Norway, Germany, Spain, Portugal, Denmark, Australia, Japan, Thailand, Sri Lanka, Vietnam, Peru, Chile, Argentina, South Africa etc, more than 90 countries all over the world.

About Paishun

Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials until the end step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and more market share.

Why Choose Paishun

RELATIONSHIPS

Long term business relationships are of upmost importance to us at Paishun. With our roots planted as a manufacturer, we take the time to learn about your business and your individual needs so we can provide better service to you. We pride ourselves on maintaining long term business relationships and understand that it takes time to build trust in new ones.

QUALITY

Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.

SHORT LEAD TIMES

We have continually made improvements to our manufacturing process over 12+ years. We've implemented lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market change. All with the goal to decrease lead time and improve quality.

INVENTORY MANAGEMENT

A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory level. All of our materials are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality standard.
