A hose manufacturer with over two decades of experience.

PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 1
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 2
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 3
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 4
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 5
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 6
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 7
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 1
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 2
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 3
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 4
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 5
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 6
PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 7

PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN

Buy the best quality of High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly from some of the best sellers and manufacturers from Paishun.We can offer you the best quality of Rubber Hoses at prices that will meet your budget.We make sure that everything that is being done by Paishun does the work in a professional way.

5.0
Customization:
Customized logo (Min. Order: 500 Meters),Graphic customization (Min. Order: 500 Meters),Customized packaging (Min. Order: 500 Meters)
shipping:
Support Sea freight · Land freight
Sizes:
3/16
design customization

    oops...!

    no product data.

    Go to homepage
    Required Products
    Total price discount:

    Hangzhou Paishun Rubber & Plastic Co., Ltd has been focusing on developing products regularly, of which Rubber hoses is the newest. It is the newest series of our company and is expected to surprise you. The research and development team is the core competence to High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly. It enables us to become a leader in the SAE 100R2 EN853 2SN. After years of growth and development,Hangzhou Paishun Rubber & Plastic Co., Ltd have constructed characteristic corporate culture systems and confirmed our business principle of 'customer first'. We will always focus on customers' needs and promise that we will provide the most satisfying and valuable products.

    Place of Origin:Zhejiang, ChinaBrand Name:PASSION
    Model Number:SAE 100R2AT/2SNColor:Black
    Inner Tube:NitrileReinforcement:One or two braids of high-tensile steel wire
    Cover Compound:NeopreneTemperature:-40℃~+100℃
    ID:1/4" ~ 2"


    Why Choose Us
    * Various colors.
    * Free hose sample available.
    * Words and your logo can be printed. OEM accepted.
    * Strict quality control. Test the products before shipping out with the complete line of test machines.
    * Customized hose accepted.
    * Factory sale with lower prices.
    * Solid construction
    * Good service lifetime
    * Increased working pressure
    * Very flexible and light
    Product Description
    Product Detail
    Name
    Hydraulic Rubber Hose
    Size
    1/4" ~ 2"
    Reinforcement
    1 or 2 steel wire braid.
    Temperature Range
    -40ºC ~ +100ºC (-40ºF~ +212 ºF)
    Application
    High pressure hydraulic oil lines used in construction, machine tool and agricultural applications using petroleum or water based
    hydraulic fluids.
    Certification
    CE and ISO approved
    Printing Word
    We can print LOGO or as your requirement.
    Packaging Detail
    By poly stripes or as your request.
    Delivery
    About 28 days for a 20' container.
    Product Specification
    SAE 100R1AT / EN853 1SN
    Part No.
    SIZE
    I.D
    O.D
    W.P
    B.P
    WEIGHT
    Part Number
    inch
    mm
    mm
    bar
    bar
    g/m
    P04-1SN
    1/4″
    6.4
    13.4
    225
    900
    225
    P05-1SN
    5/16″
    8
    15.2
    215
    860
    260
    P06-1SN
    3/8″
    9.5
    17.3
    180
    720
    340
    P08-1SN
    1/2″
    12.7
    20.3
    160
    640
    415
    P10-1SN
    5/8″
    16
    23.7
    130
    520
    475
    P12-1SN
    3/4″
    19
    28
    105
    420
    590
    P16-1SN
    1″
    25.4
    36.2
    87
    348
    875
    P20-1SN
    1 1/4″
    31.8
    43
    62
    248
    1205
    P24-1SN
    1 1/2″
    38.1
    49.2
    50
    200
    1405
    P32-1SN
    2″
    50.8
    62.6
    40
    160
    1910
    SAE 100R2AT / EN853 2SN
    Part No.
    SIZE
    I.D
    O.D
    W.P
    B.P
    WEIGHT
    inch
    mm
    mm
    bar
    bar
    g/m
    P04-2SN
    1/4″
    6.4
    14.5
    400
    1600
    380
    P05-2SN
    5/16″
    8
    16.7
    350
    1400
    435
    P06-2SN
    3/8″
    9.5
    19.2
    330
    1320
    550
    P08-2SN
    1/2″
    12.7
    21.8
    275
    1100
    640
    P10-2SN
    5/8″
    16
    25.4
    250
    1000
    750
    P12-2SN
    3/4″
    19
    29.9
    215
    850
    925
    P16-2SN
    1″
    25.4
    37.8
    165
    650
    1290
    P20-2SN
    1 1/4″
    31.8
    46.4
    125
    500
    1895
    P24-2SN
    1 1/2″
    38.1
    52.7
    90
    360
    2120
    P32-2SN
    2″
    50.8
    65.4
    80
    320
    2765

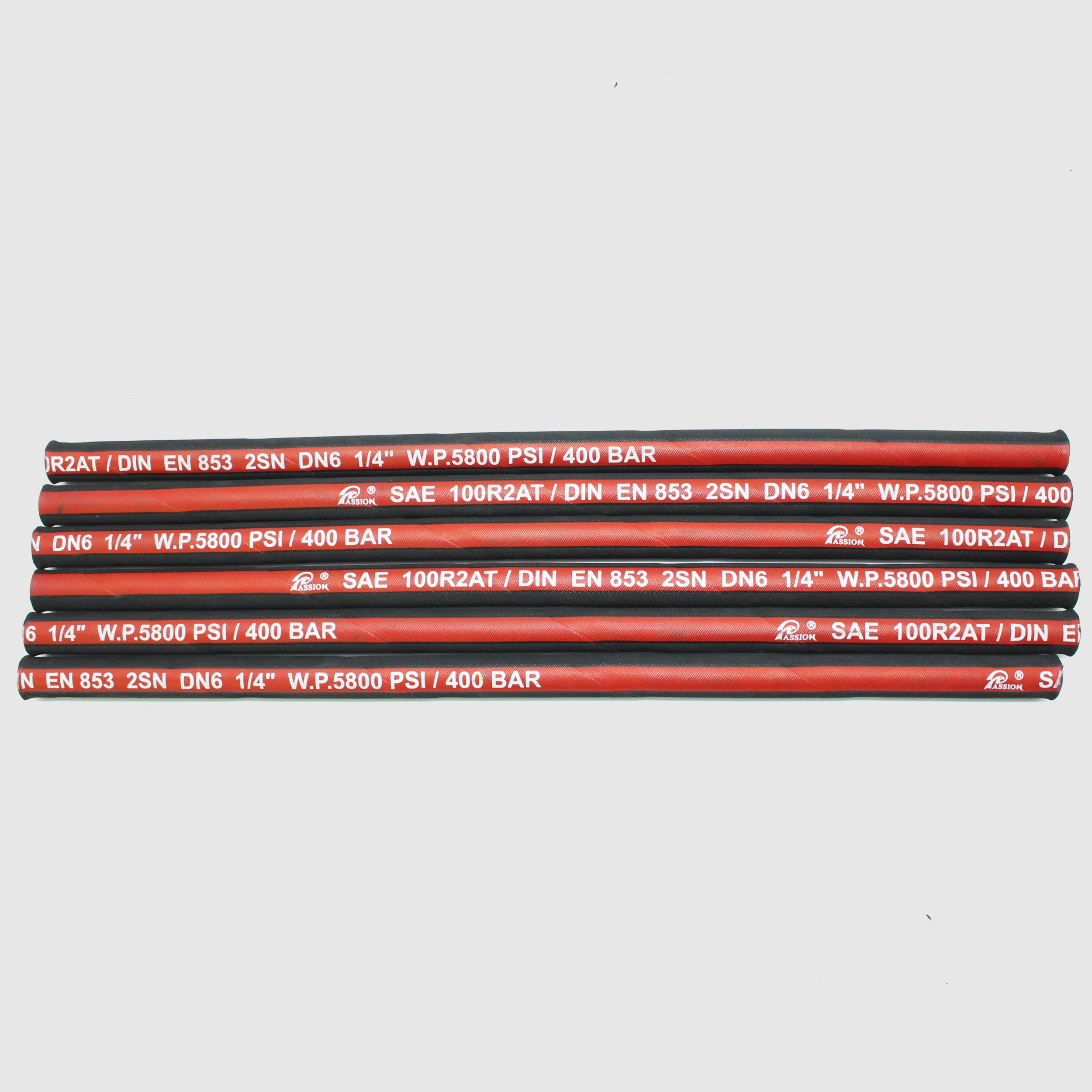

    Product Photo
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 8
    Workshop
    Production Line
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 9

    Raw Materials

    We only use new raw materials, none recycled materials at all.
    The raw materials are bought from big group company such as China Petro and Sinopec.
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 10

    Rubber Mixing Machines

    We have our own rubber mixing machines, this makes us be able to do research and produce different types of hoses.
    And keep a constant rubber sheet supplying.
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 11

    Steel Wire Braiding Machine

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 12

    Vulcanizing Boiler

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 13

    Braiding Machine

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 14

    Spiral Machine

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 15


    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 16

    Packaging

    Test Machines
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 17

    Impulse Testing Machine

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 18

    Impulse Test

    .
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 19

    Burst Pressure Test

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 20

    Abrasion Test

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 21

    Wire Diameter

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 22

    Test Table

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 23

    Wire Kontting

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 24

    Wire Kontting

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 25

    Ozone Resistance

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 26

    Rubber Sheet Thickness

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 27

    Rubber Sheet Strength

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 28

    Rubber Sheet Hardness

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 29

    Vulcanizer

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 30

    Exhaustion Test

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 31

    Aging Test

    Certifications
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 32

    CE Certificate

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 33

    MSHA Certificate

    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 34

    ISO Certificate

    Paishun has various types of certificates, such as ISO, CE, Rohs, MSHA, etc.
    Application
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 35

    Paishun is one of the top manufacturers of rubber hoses in East China.
    We're specialized in the production and marketing of these products.

    Paishun products are particularly suitable for the following areas of applications:
    * Heavy equipment and earth-moving machinery
    * Mining and drilling
    * Agricultural machines and equipment
    * Working platforms, cranes and lifting
    * Marine and off-shore
    * Naval Construction
    * Machine tool industry, automatic machines and industrial plants
    * Wood machinery, marble and sheet metal machining
    Exhibition
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 36
    More of Paishun
    About Paishun
    Paishun factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of the rubber mixing process, cold feeding material extrusion process, microwave vulcanization process, and high-speed braiding process, etc.

    We produce mainly industrial hoses like Air Hose, Water Hose, Oil Hose, Welding Hose, Hydraulic Hose, and Assemblies. Paishun, being a rapidly growing enterprise focusing on the professional production of pure rubber hoses and braided rubber hoses, its yearly production capacity reaches 10 million meters.

    Our key policy is "enterprise may thrive with the technology, and may last with good quality". So we put much investment in the research team, and in advanced testing laboratory equipment. We now use a series of tensile testing machines, vulcanization testing devices, aging testing chest, pressure testing machines to ensure effective quality control. All these testing machines and related procedures may form a complete quality control system, beginning from the selection of the raw materials until the end step. Thus, we wish our products can satisfy all of our customers, and help them to gain more and more market share.
    Why Choose Paishun

    RELATIONSHIPS

    Long term business relationships are of upmost importance to us at Paishun. With our roots planted as a manufacturer, we take the time to learn about your business and your individual needs so we can provide better service to you. We pride ourselves on maintaining long term business relationships and understand that it takes time to build trust in new ones.

    QUALITY

    Paishun is ISO 9001:2015 certified for the manufacturing of rubber hoses. This certification encompassed with lean manufacturing allows us to ensure our products are safe, reliable and of superior quality.
    Our workshop upholds strict cleanliness guidelines at all times. We maintain a clean and organized environment. This allows us to guarantee your hoses are produced promptly and efficiently.

    SHORT LEAD TIMES

    We have continually made improvements to our manufacturing process over 12+ years. We've implemented lean manufacturing and moved to a larger workshop. These changes have enabled us to support growth and streamlined our supply chain process in order to respond quickly to market change. All with the goal to decrease lead time and improve quality.

    INVENTORY MANAGEMENT

    A consistent unbroken supply chain allows us to produce rubber hoses at a steady pace. We understand how important production scheduling and inventory flow are to your business. We will work with you on an individual basis and will process blanket orders to assist with your inventory level. All of our materials are sourced from big group company such as China Petro and Sinopec, to adhere to our best quality standard.
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 37
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 38
    How to Contact Us?
    PASSIONHOSE - High Pressure Steel Wire Braided/Spiraled Hydraulic Rubber Hose and Hose Assembly SAE 100R2 EN853 2SN 39

    Owen ZHAO
    WeChat/WhatsApp: +86-136 5667 9835
    Skype: maggiepaishun

    Get in touch with us

    just leave your email or phone number in the contact form so we can send you a free quote for our wide range of designs
