SAE J30R7 PCV / EGG Fuel Line Rubber Hose for Automotive | PASSIONHOSE
Middle Pressure Rubber Fuel Hose / Oil Hose is for the transferring of industrial use fuel, diesel, bio-diesel, hydraulic oil, machinery oil; When the fuel hose meets SAE J30 standard, it can be used on automotive — Apply to convey gasoline, diesel and lubricating oil or the vapors present in either the fuel system or in the crankcase of internal combustion engines. The fuel hose is made of synthetic rubber embedded with braided fibers.

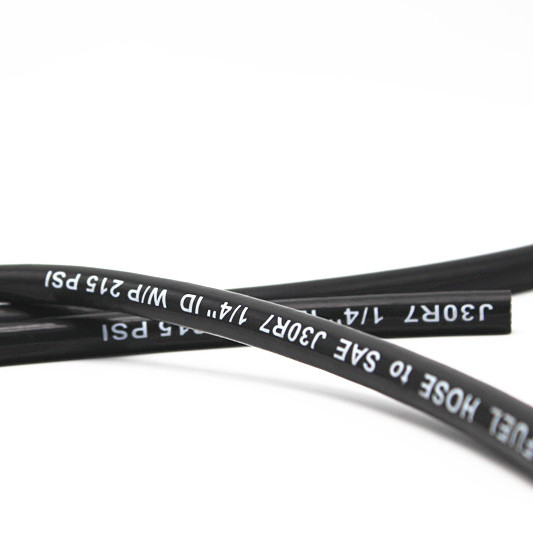

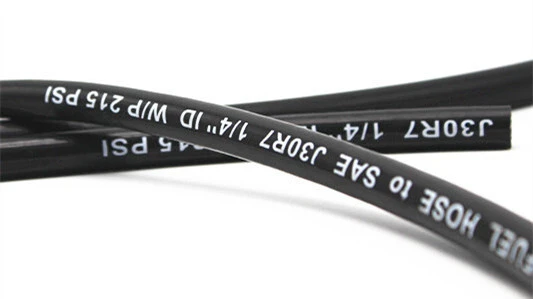

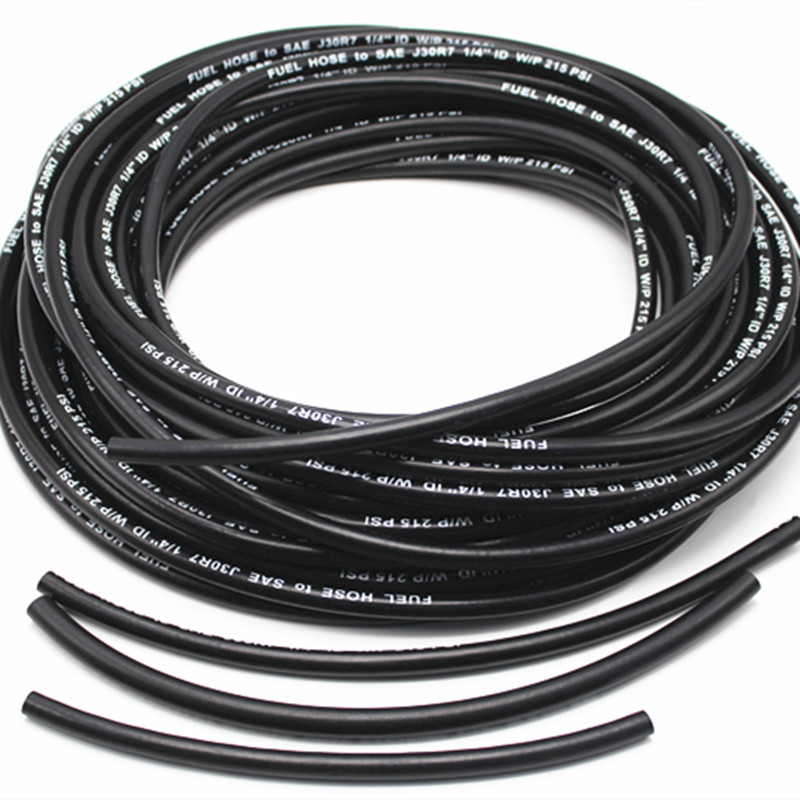

SAE J30R7 PCV / EGG Fuel Line Rubber Hose for Automotive
Construction -
Tube: NBR
Reinforcement: High tensile polyester fiber braided.
Cover: NBR
Temperature: -40ºC to +100ºC
Standard Color: Black
Application: For use with gasoline, diesel fuel, lubrication oil, or the vapor present in either the fuel system or in the crankcase of internal combustion engines in mobile, stationary, and marine applications.
Standard: SAE J30 R7
Standard length: 30m, 100m.
Specification:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length | Measurement | Weight | |||
| inch | mm | mm | bar | psi | bar | psi | m | cbm/roll | kg/m |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 | 0.031 | 0.17 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 | 0.035 | 0.22 |
| 3/8" | 10 | 17 | 20 | 300 | 60 | 900 | 100 | 0.044 | 0.24 |
| 1/2" | 12.7 | 22 | 20 | 300 | 60 | 900 | 100 | 0.076 | 0.42 |
| 5/8" | 16 | 24 | 20 | 300 | 60 | 900 | 100 | 0.085 | 0.45 |
| 3/4" | 19 | 29 | 20 | 300 | 60 | 900 | 100 | 0.089 | 0.7 |
| 1" | 25.4 | 36 | 20 | 300 | 60 | 900 | 100 | 0.102 | 0.85 |
Hangzhou Paishun Rubber and Plastic Co.,Ltd is a company that specialized in manufacturing various Rubber Hoses with High Strength Reinforcement. Such as SAE J30R6 / SAE J30R7 / SAE J30R8 Fuel Line Hose.
This kind of Hose normally don't have high pressure, for example the international working pressure requirements for SAE J30R7 Fuel Hose is only 7 bar, while our hose can reach as high as 20bar.
PASSION® SAE J30R7 Fuel Hose enjoys excellent gasoline resistance, aging resistance, good tensile strength, Good Bending properties at low temperature.
PASSION® SAE J30R7 Fuel Hose can be printed with special printings according to clients' requirements if clients asked.
