Flexible, high pressure, good abrasion, aging, permeability resistance. Excellent adhesion. The working pressure is 20 bar, burst pressure is 60 bar. The regular package is woven poly strips, transparent plastic film, reel, pallet, etc.
Inner diameter: 8mm
Outer diameter: 15mm
Temperature:-30℃-80℃
Surface: smooth
Color: Orange, red, black, blue, etc
Material: NBR & EPDM
Standard: ISO3821
Certificate: CE certificate
◪ Good flexibility with excellent kink resistance.
◪ Excellent oil resistance with strong permeation resistance.
◪ Excellent weather resistance, and aging resistance.
◪ New material, no re-used material.
◪ With smooth, high pressure.
◪ With accurate sizes.
Structure:
Inner Tube: NBR material, excellent oil resistance. good physical properties, and good permeability.
Reinforcement: 1500D High tensile polyester fiber wire reinforced.
Outer Tube: EPDM material, excellent heat, ozone, and weathering resistance.
Temperature:-30℃~80℃
Standard: ISO3821, EN16436, BS3212
Length: 50m, 100m
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 3/16" | 5.0 | 12.0 | 20 | 60 |
| 2 | 1/4" | 6.0 | 13.0 | 20 | 60 |
| 3 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 4 | 3/8" | 9.5 | 17.0 | 20 | 60 |
with high-strength fiber reinforcement
with 300psi working pressure

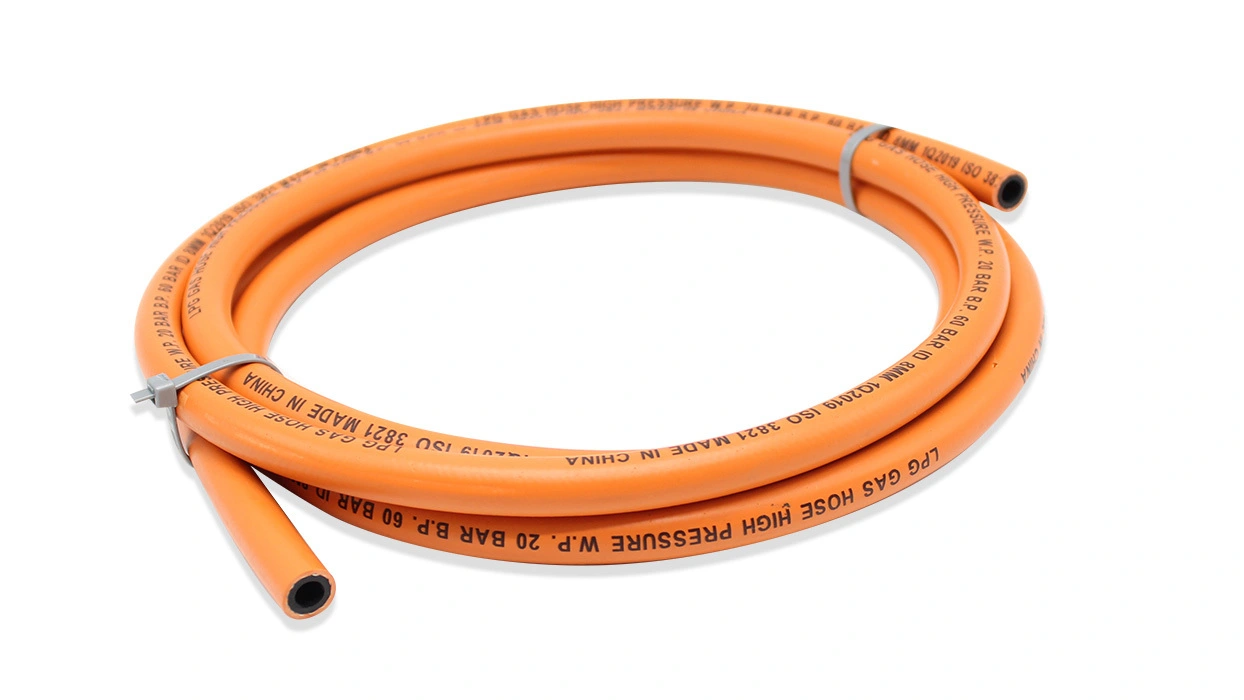

Rubber Gas Hose
with different sizes
supplied in rolls
smooth, and nice appearance
3/8" BSP left-hand fittings
A high-pressure rubber gas hose is reinforced with textile.
It is for delivering gas, LPG, propane, natural gas, etc for industrial application
The hose is with strong permeation resistance with excellent aging resistance.
For Domestic Gas Tanks Application Transferring Liquefied Petroleum Gas
