The application is conveying of air, insert gas, and water in mining, construction, engineering, shipbuilding, steel production, etc. The standard length is 50m and 100m. The material is SBR&EPDM, weather, aging and high temperature resistance.
◪ Good flexibility with excellent kink resistance.
◪ Excellent UV, weather, and high-temperature resistance.
◪ Excellent abrasion and aging resistance.
◪ New material, no re-used material.
◪ With smooth surface, and high pressure.
◪ Suitable for outdoor use, as well as indoor
Structure:
Inner Tube: SBR/EPDM material, excellent aging resistance. good physical properties.
Reinforcement: 1500D High tensile polyester fiber wire reinforced.
Outer Tube: EPDM material, excellent heat, ozone, and weathering resistance.
Temperature:-30℃~80℃/100℃
Standard: ISO2398
Length: 50m, 100m
| Serial | I.D.(inch) | I.D.(mm) | O.D.(mm) | W.P.(bar) | B.P.(bar) |
|---|---|---|---|---|---|
| 1 | 3/16" | 5.0 | 12.0 | 20 | 60 |
| 2 | 1/4" | 6.0 | 13.0 | 20 | 60 |
| 3 | 5/16" | 8.0 | 15.0 | 20 | 60 |
| 4 | 3/8" | 9.5 | 17.0 | 20 | 60 |
| 5 | 1/2" | 13 | 21.0 | 20 | 60 |
| 6 | 5/8" | 16 | 24.0 | 20 | 60 |
| 7 | 3/4" | 19 | 29.0 | 20 | 60 |
| 8 | 1" | 25 | 37.0 | 20 | 60 |

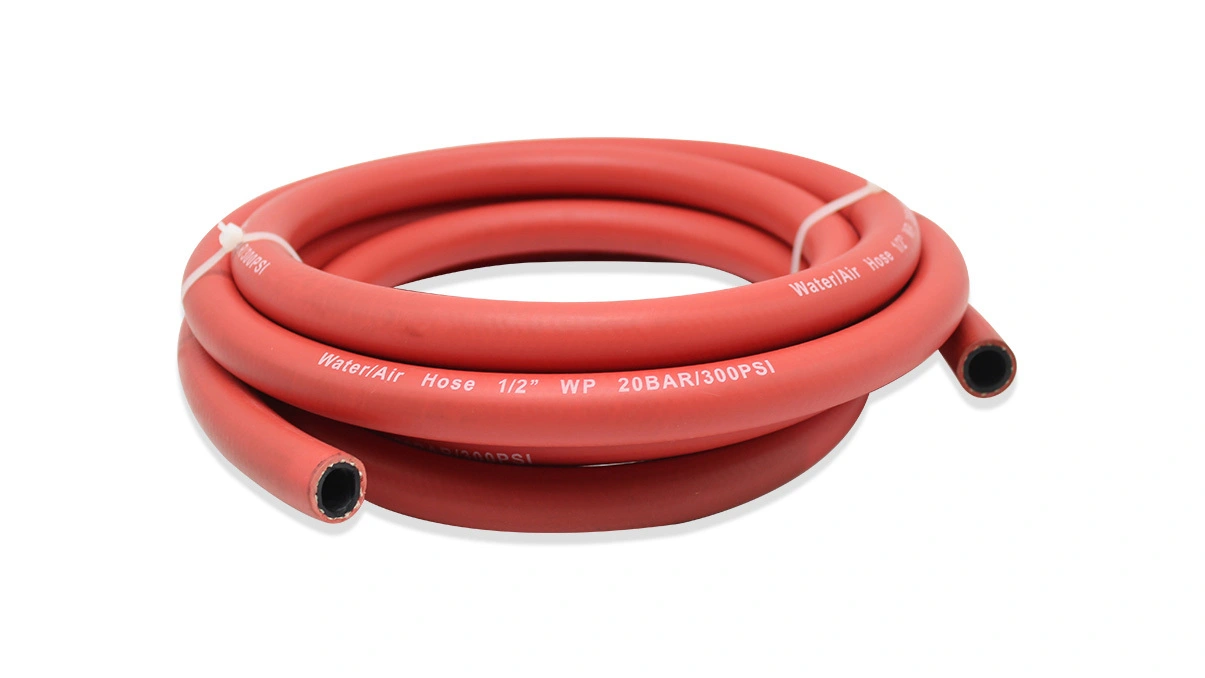

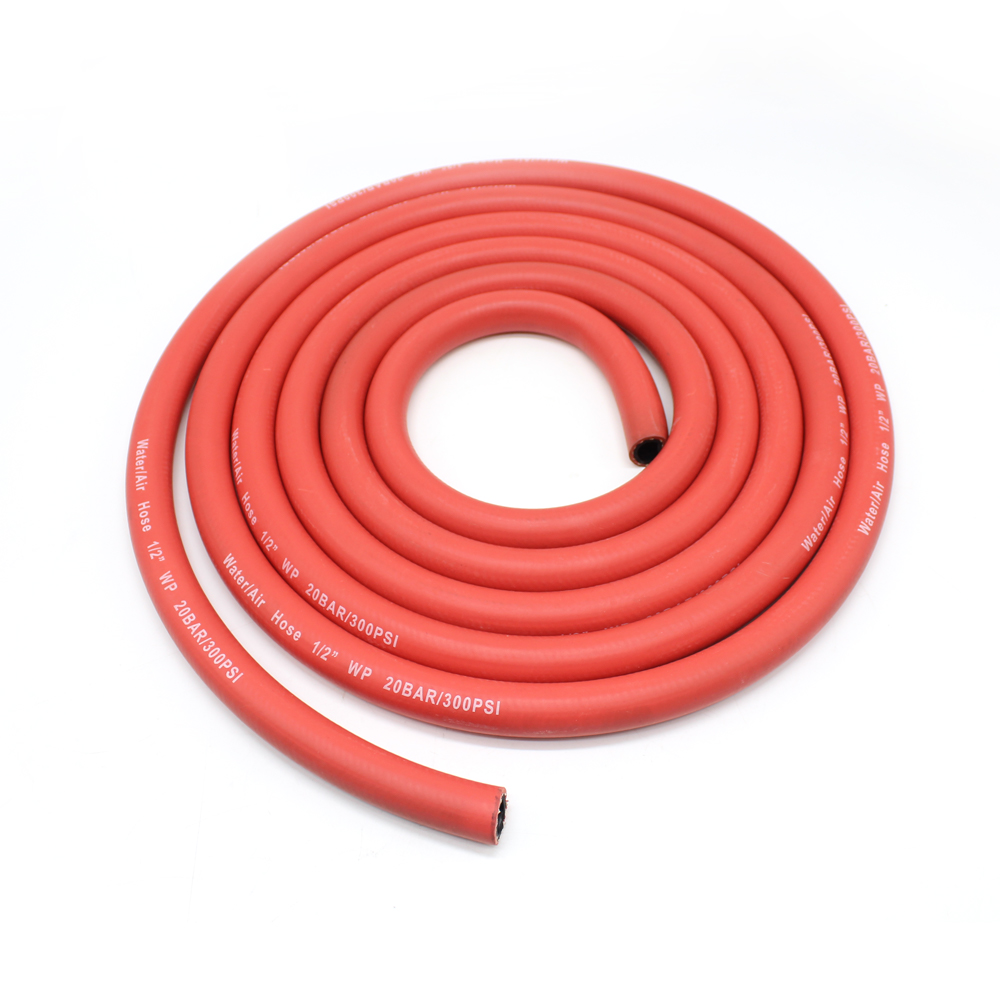

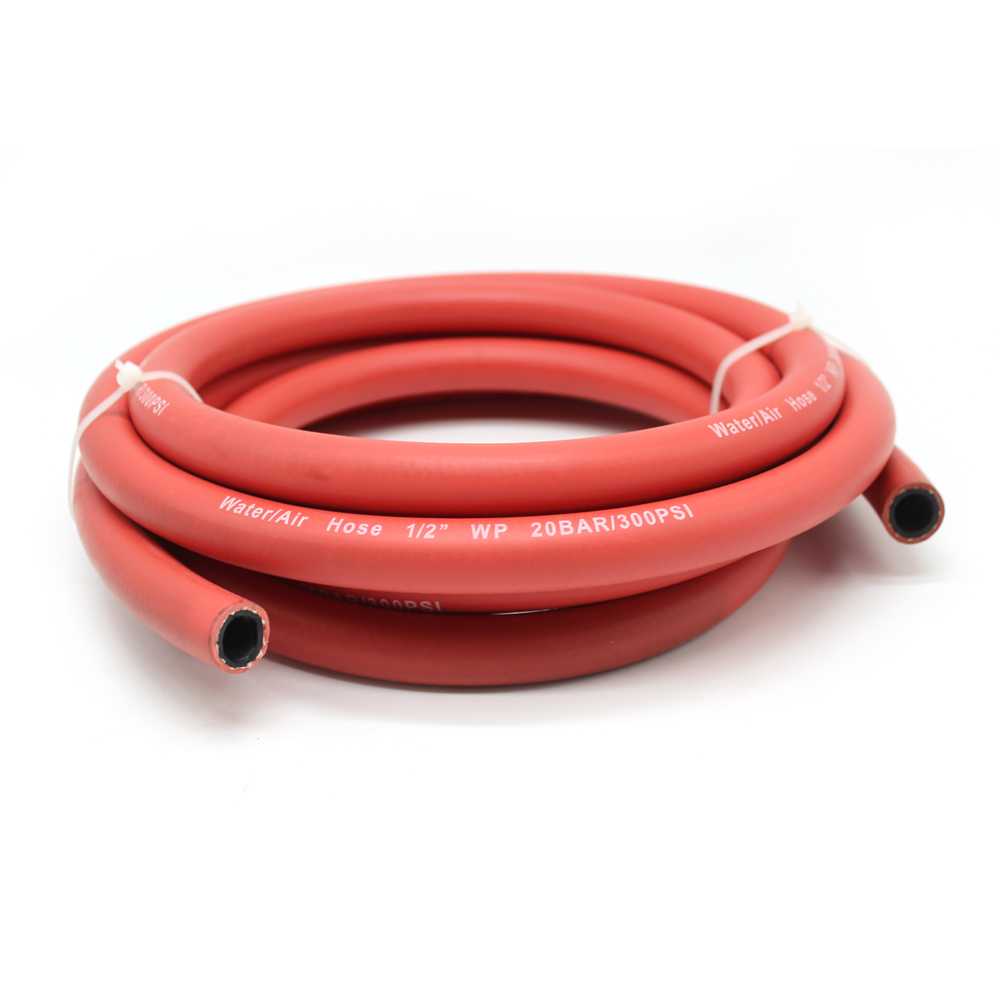

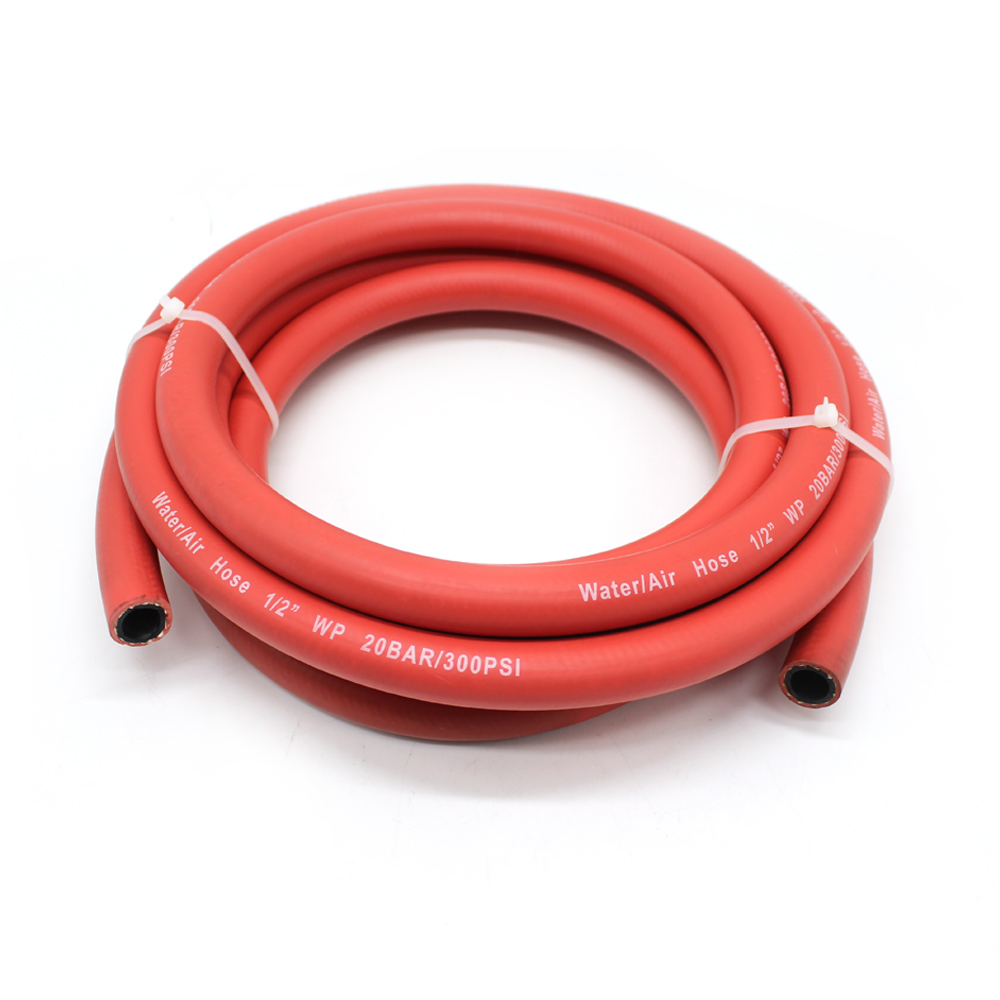

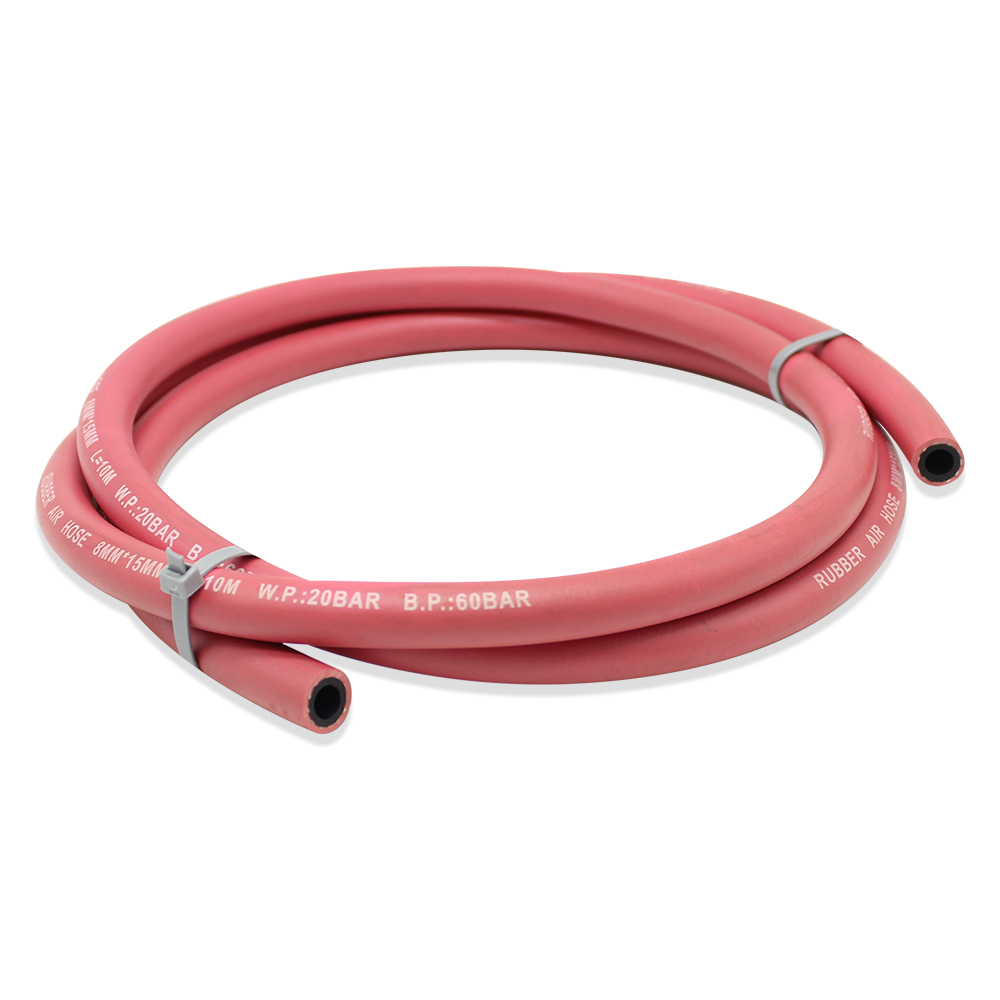

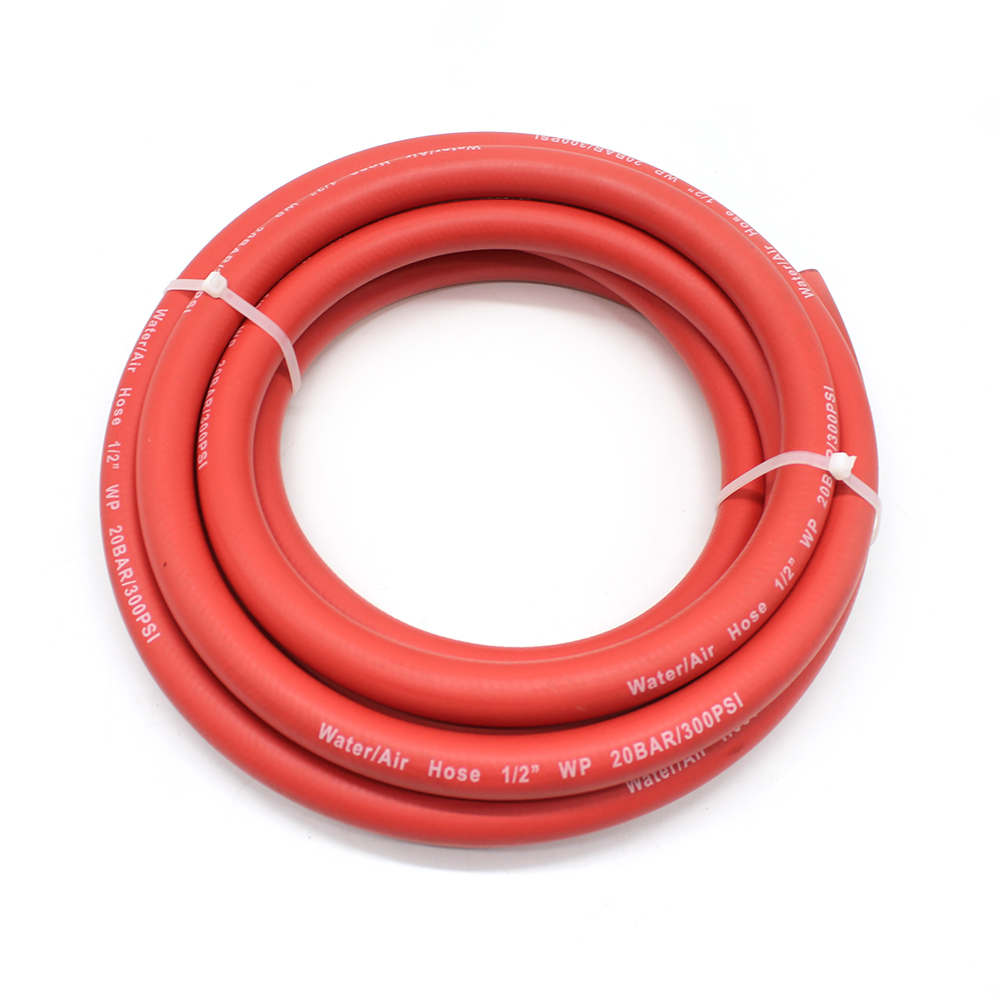

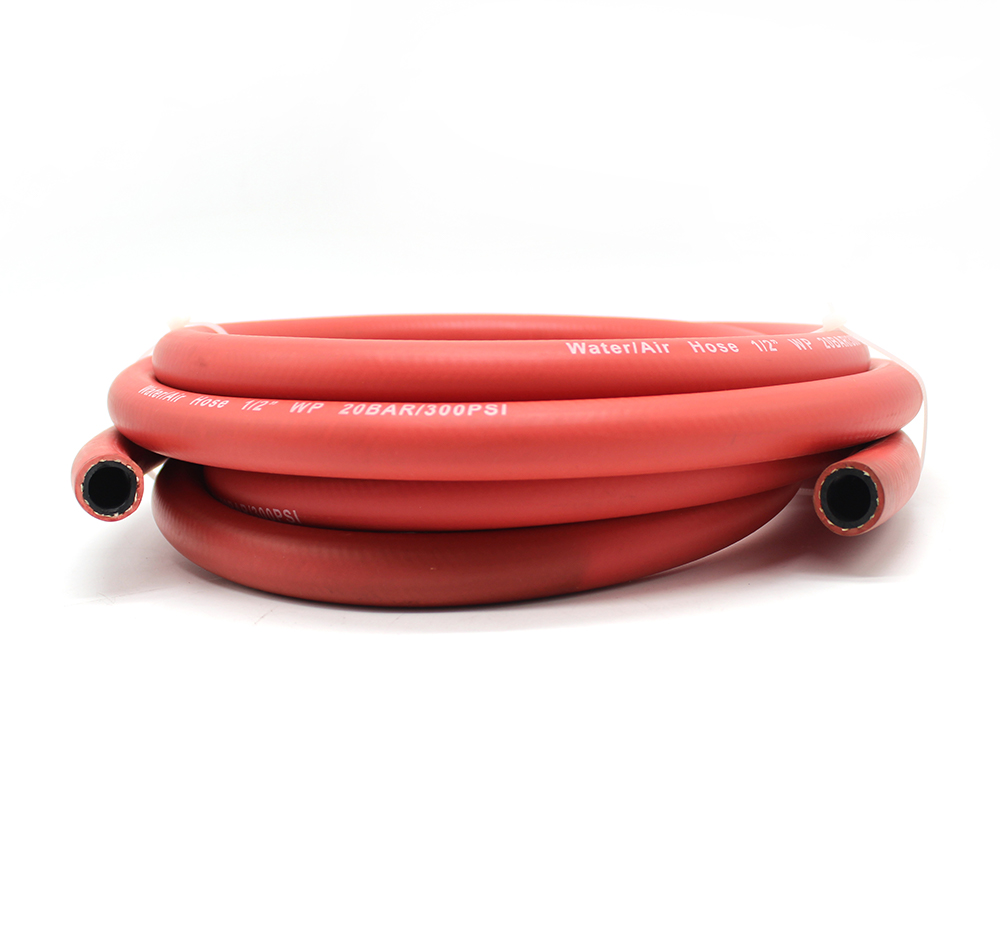

Rubber Air/Water Hose
with high-strength fiber reinforcement
with 300psi working pressure
Rubber Air/Water Hose
with different sizes 3/16"~2"
supplied in rolls
smooth, and nice appearance
Blue, Red, Yellow, Black, etc
Mainly used for conveying of air, insert gas and water in mining, construction, engineering, shipbuilding, steel production, etc.

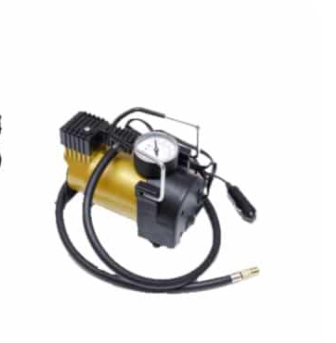

For Air Compressor Pump Applications Transferring Air
